SKU:
BP 301-011DLXI-B 15M
$ 2.435,05
1-2 weeks delivery time
-
+
The Lopolight 301-011DLXI-B 15M is a vertically mounted navigation light with a 15-meter cable, featuring a masthead and 6W decklight with a 225° white beam. It is DNV approved, compliant with multiple international standards, and constructed from anodized aluminum, PMMA lens, and stainless steel screws. Operating voltage is 10–32VDC with a power draw of 2.2 W and IP68 rating. It includes mounting screws and an installation guide, and operates in temperatures from -25°C to 55°C.
- Description
- Ask a Question
-

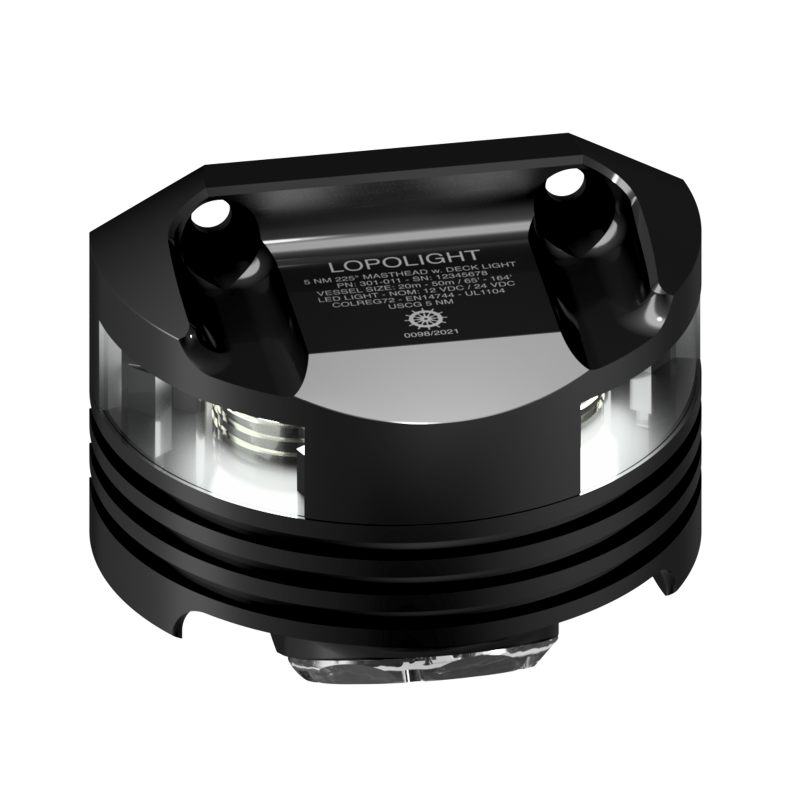

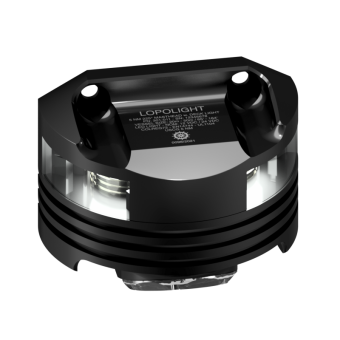

Lopolight 301-011DLXI-B 15M - Navigation Light 5NM 225° White, Masthead+6W Decklight, Black
- Vertical mounted with 15m cable
- Decklight angled 25° forward with a 26° lightbeam
- Product Number: 301-011DLXI-B 15M
- Dimensions (metric): 54 x 38,7 x 72,2
- Dimensions (imperial): 2.1" x 1.5" x 2.8"
- Certification: DNV approved
- Standards: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Included: 1 Navigation light, precabled with 2.5m shielded marine grade cable, 2 mounting screws (M6 * 8 mm), installation guide
- Operating temperature: -25°C to 55°C
- Mounting type: Vertical
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating voltage: 10-32VDC
- EAN: 5704438043985
- IP rating: IP68
- Power draw: 2,2 W
- UPC Code: 879343044114
- Connection: 2.5m cable
- Current consumption at 12VDC: 163 mA
- Current consumption at 24VDC: 90 mA
- Minimum feed wire gauge: 0.5mm² AWG22
- Weight: 1.43 Kg (50.44 Oz)
-
