SKU:
BP 301-009ST-WH
$ 1.385,26
1-2 weeks delivery time
-
+
The Lopolight 301-009ST-WH is a red port navigation light with a white ceramic coating, providing 2NM visibility for vessels up to 50 meters. It is horizontally mounted, made from ceramic-coated aluminum with a PMMA lens, and operates on 10-32VDC with 2W power draw. Certified via DNV, it weighs 1.07 kg, has an IP68 rating, and the package includes the navigation light.
- Description
- Ask a Question
-

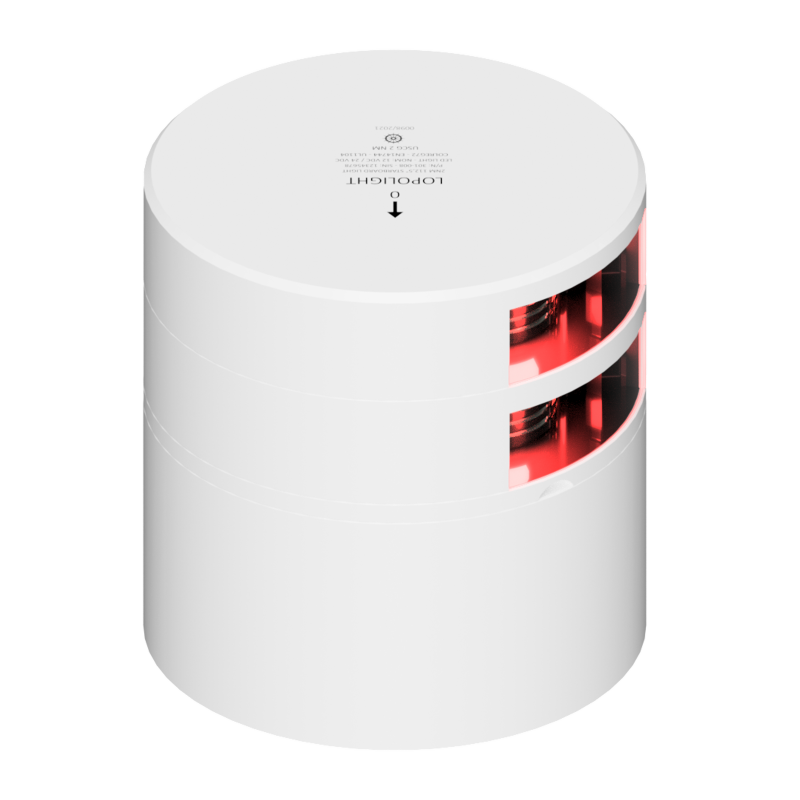

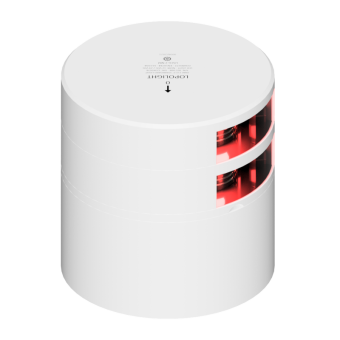

Lopolight 301-009ST-WH - Navigation Light 2NM 112,5° Red, Port, Double, White Ceramic Coated
This white ceramic coated navigation light offers reliable performance for vessels up to 50 meters. Its horizontal mounting and durable materials make it suitable for demanding marine environments.
- Number: 301-009ST-WH
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 96,5mm
- Dimensions (imperial): Ø3.6"" x 3.8""
- Certification: Wheelmarked based on DNV certification
- Intensity: >5.4cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2nm
- Included In Package: 1 Navigation light
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Ceramic coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 2 W
- Connection: Plug connector
- Current Consumption: 90 mA @ 12VDC, 50 mA @ 24VDC
- Vessel Size: 12-20M, 20-50M
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.07 Kg / 37.74 Oz
- EAN: 5704438039346
- UPC Code: 879343039479
-
