SKU:
BP 301-009ST-PRO-I
$ 2.158,59
1-2 weeks delivery time
-
+
The Lopolight 301-009ST-PRO-I is a red port navigation light with a built-in de-icing function, ideal for cold climates. It provides 2NM visibility, is horizontally mounted, and constructed from black hard coat anodized aluminum with a PMMA lens. Certified by DNV and approved to various marine standards, it operates on 20-32VDC with 1.2W power draw and weighs 1.4 kg. The package includes the light, mounting screws, and installation guide.
- Description
- Ask a Question
-

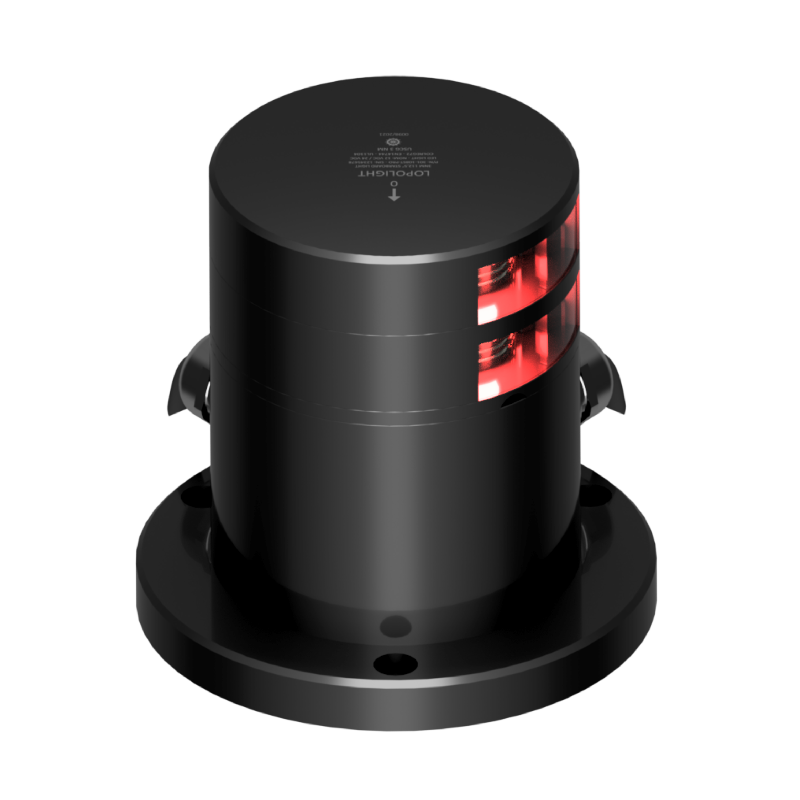

Lopolight 301-009ST-PRO-I - Navigation Light 2NM 112,5° Red, Port, Double, Black Anodized
Engineered for cold climates, this navigation light includes a built-in de-icing function while maintaining excellent 2NM visibility for various marine vessels.
- Number: 301-009ST-PRO-I
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 96,5mm
- Dimensions (imperial): Ø3.6" x 3.8"
- Certification: DNV
- Intensity: >5.4cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2nm
- Included in Package: 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide
- Operating Temperature: -60°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32VDC
- EAN: 5704438013049
- IP Rating: IP68
- Power Draw (W): 1.2
- UPC Code: 879343013042
- Connection: Plug connector
- Current Consumption (mA @ 12VDC): 90
- Current Consumption (mA @ 24VDC): 50
- Vessel Size: 12-20M, 20-50M
- Min. Feed Wire Gauge: 1.5mm² AWG18
- Weight: 1.4 Kg / 49.38 Oz
- Mounting Accessories: Horizontally mounted on 400-037 POM base (IP68), Cable direction side, Incl. HDPE base plate, Quality cable glands for 7-13mm (9/32"-1/2") cable diameter
-
