SKU:
BP 301-009ST-PRO-EX
$ 1.672,55
1-2 weeks delivery time
-
+
The Lopolight 301-009ST-PRO-EX is a robust red port navigation light designed for hazardous ATEX Zone 1 and 2 environments. It offers 2NM visibility, is horizontally mounted, and made from black hard coat anodized aluminum with a PMMA lens. Certified to DNV, Dancert, ExVeritas, and other marine standards, it operates on 10-32VDC with a power draw of 1W and weighs 1.4 kg. The package includes the navigation light and installation guide.
- Description
- Ask a Question
-

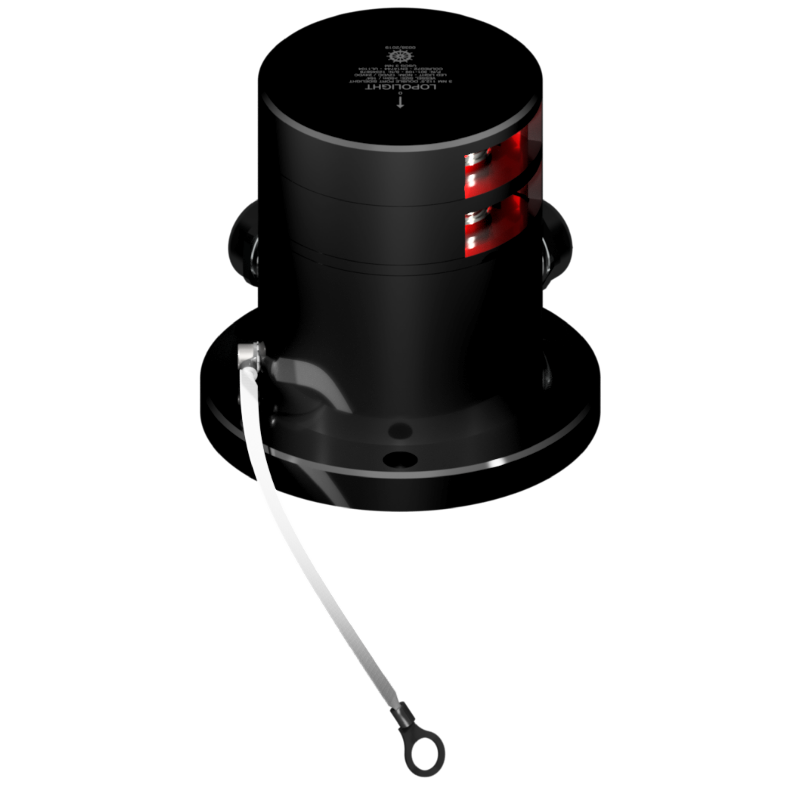

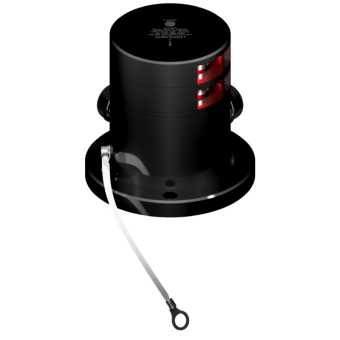

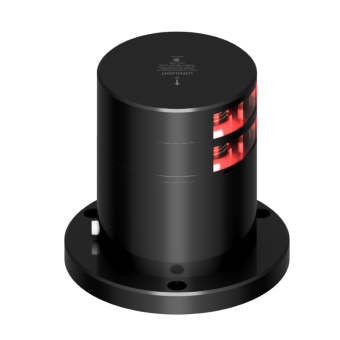

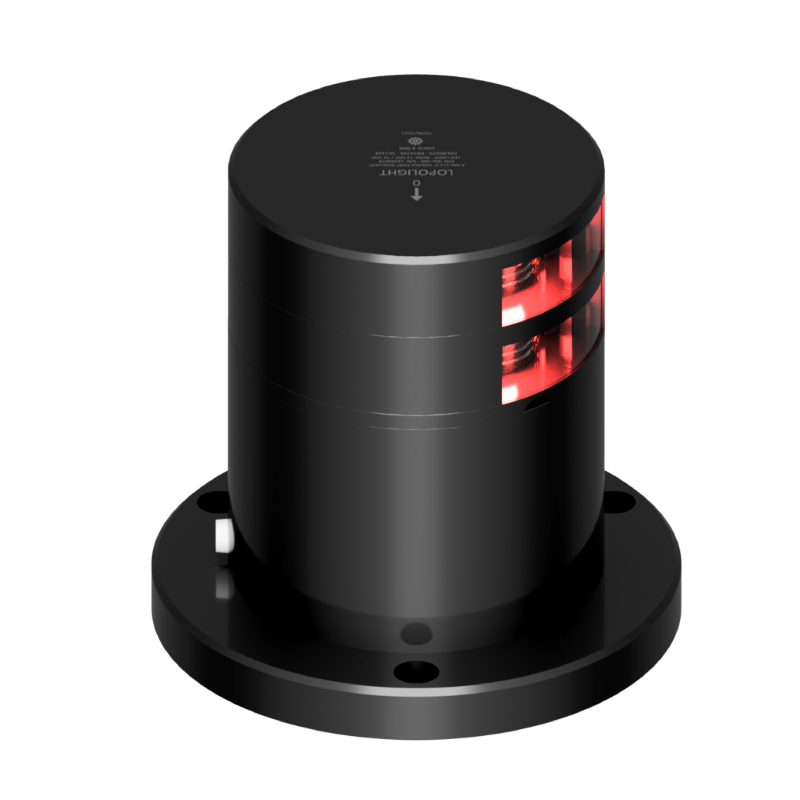

Lopolight 301-009ST-PRO-EX - Navigation Light 2NM 112,5° Red, Port, Double, Black Ex Zone 1&2
This robust navigation light is designed for use in hazardous ATEX Zone 1 and 2 environments, offering reliable visibility and certified compliance for marine vessels.
- Number: 301-009ST-PRO-EX
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 125,5mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Certification: DNV, Dancert (Approved to: Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 2nm
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438038226
- IP Rating: IP68
- Power Draw (W): 1
- UPC Code: 879343038359
- Connection: Plug connector
- Current Consumption (mA @ 12VDC): 92
- Current Consumption (mA @ 24VDC): 56
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: 12-20M, 20-50M
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.4 Kg / 49.38 Oz
- Mounting Accessories: Horizontally mounted on 400-037-B alu base (IP68), Cable direction side, incl. HDPE Base Plate, No cable glands or ground strap included
-
