SKU:
BP 301-009ST-FB-B
$ 968,38
1-2 weeks delivery time
-
+
The Lopolight 301-009ST-FB-B is a black double port light with an FB base, horizontally mounted for 2NM red visibility. Designed for vessels under 50 meters, it operates on 10-32VDC, is DNV certified, IP68 rated, and built from durable materials with a current draw of 90mA at 12VDC and 50mA at 24VDC.
- Description
- Ask a Question
-

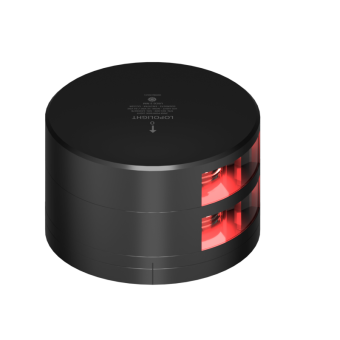

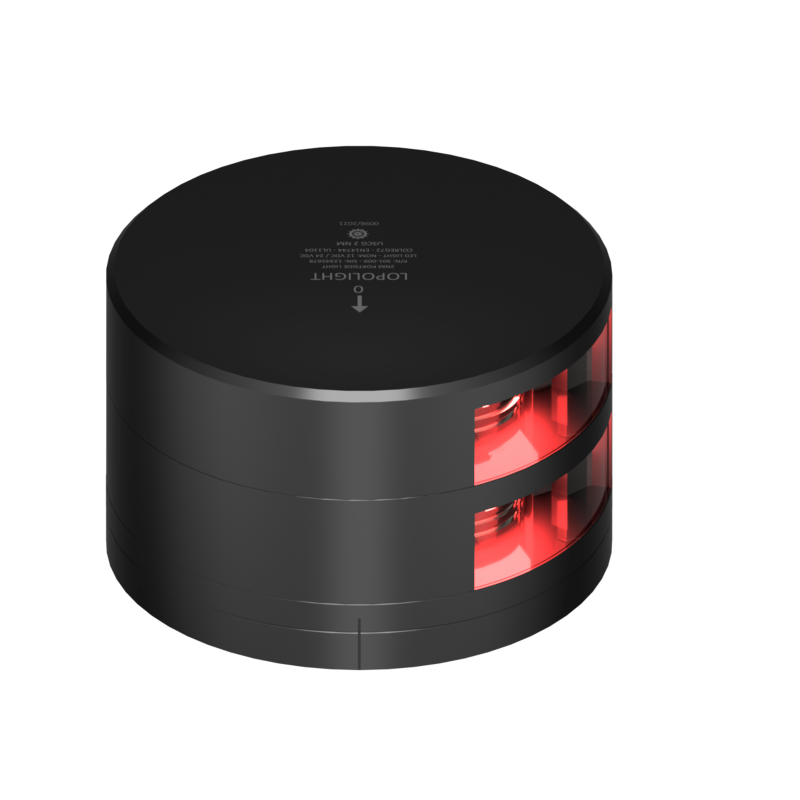

Lopolight 301-009ST-FB-B - Navigation Light 2NM 112,5° Red, Double Port, Black w/FB Base
Engineered for reliable marine navigation, this horizontally mounted red port light ensures visibility up to 2 nautical miles. Built with durable materials and an easy-to-install flat base, it’s perfect for vessels under 50 meters.
- Number: 301-009ST-FB-B
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 58mm
- Dimensions (imperial): Ø3.6" x 2.3"
- Certification: Certified by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2nm
- Included In Package: 1 Navigation light, precabled with 2.5 meter shielded marine grade cable, Installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438043787
- IP rating: IP68
- Power draw: 1,2 W
- Connection: 2.5m cable
- Current consumption (mA @ 12VDC): 90
- Current consumption (mA @ 24VDC): 50
- Vessel size: Under 12M, 12-20M, 20-50M
- Min. feed wire gauge: 0.5mm² AWG22
- Weight: 0.91 Kg / 32.24 Oz
-
