SKU:
BP 301-009ST-B-RPM
$ 1.531,98
1-2 weeks delivery time
-
+
The Lopolight 301-009ST-B-RPM is a dimmable, monitored black port light for vessels 12-50 meters. Horizontally mounted, it provides 2NM red visibility, >5.4cd intensity, operates on 10-32VDC, and features IP68 protection and durable anodized aluminum construction.
- Description
- Ask a Question
-

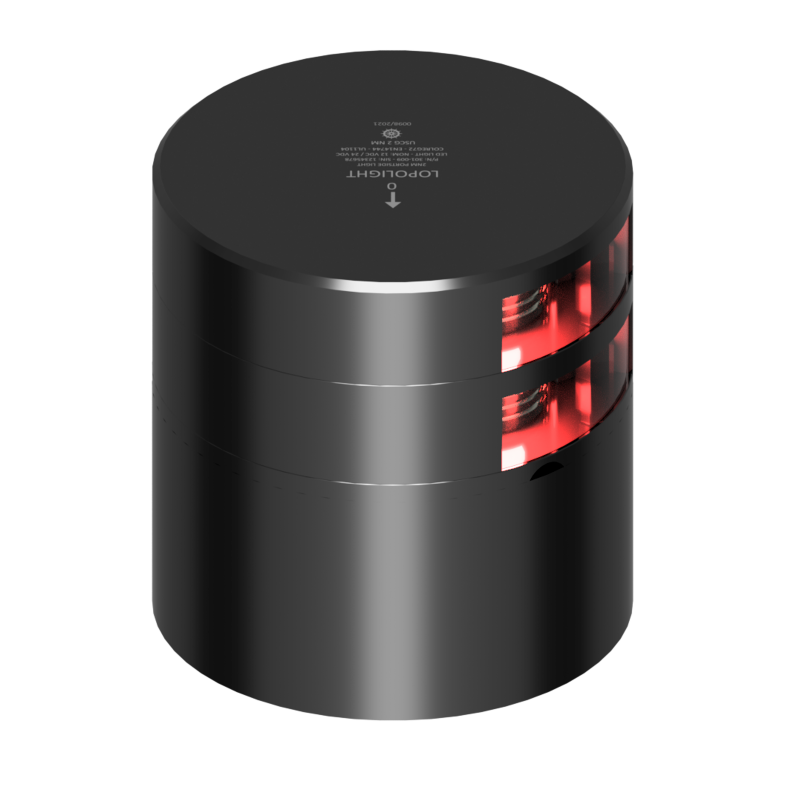

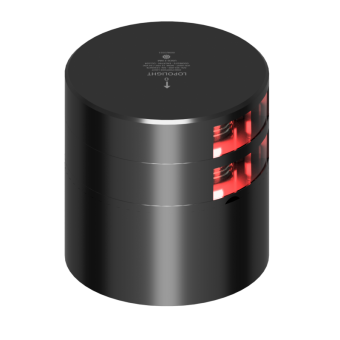

Lopolight 301-009ST-B-RPM - Navigation Light 2NM 112,5° Port Sidelight, Dimmable, Black
This high-performance navigation light provides reliable red illumination for port side visibility, designed for vessels between 12-50 meters. It features dimmable control, robust materials, and long-lasting operation in harsh marine environments.
- Dimmable / monitored / controllable
- 2-lead connection for power and control
- Operating Voltage: 10-32VDC
- Model Number: 301-009ST-B-RPM
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 96,5mm
- Dimensions (imperial): Ø3.6" x 3.8"
- Certification: DNV
- Intensity: >5.4cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2NM
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- IP Rating: IP68
- Power Draw: 1.2 W
- Current Consumption: 90 mA @12VDC, 50 mA @24VDC
- Connection: Plug connector
- Special Attributes: Dimmable (NAVY/SAR only)
- Vessel Size: 12-20M, 20-50M
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.2 Kg / 42.32 Oz
- EAN: 5704438014725
- UPC Code: 879343014728
-
