SKU:
BP 301-009-WH-UL
$ 660,21
1-2 weeks delivery time
-
+
The Lopolight 301-009-WH-UL is a white ceramic port light with an ultra-low aluminum mounting ring, suitable for medium to large vessels. Offering 2NM red visibility, >5.4cd intensity, DNV certification, and IP68 protection, it operates on 10-32VDC with a 2.5m cable.
- Description
- Ask a Question
-

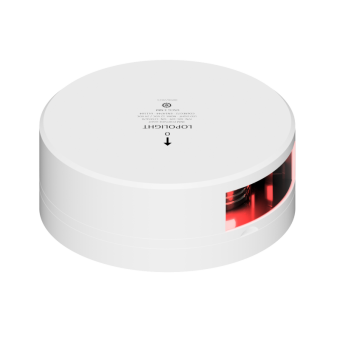

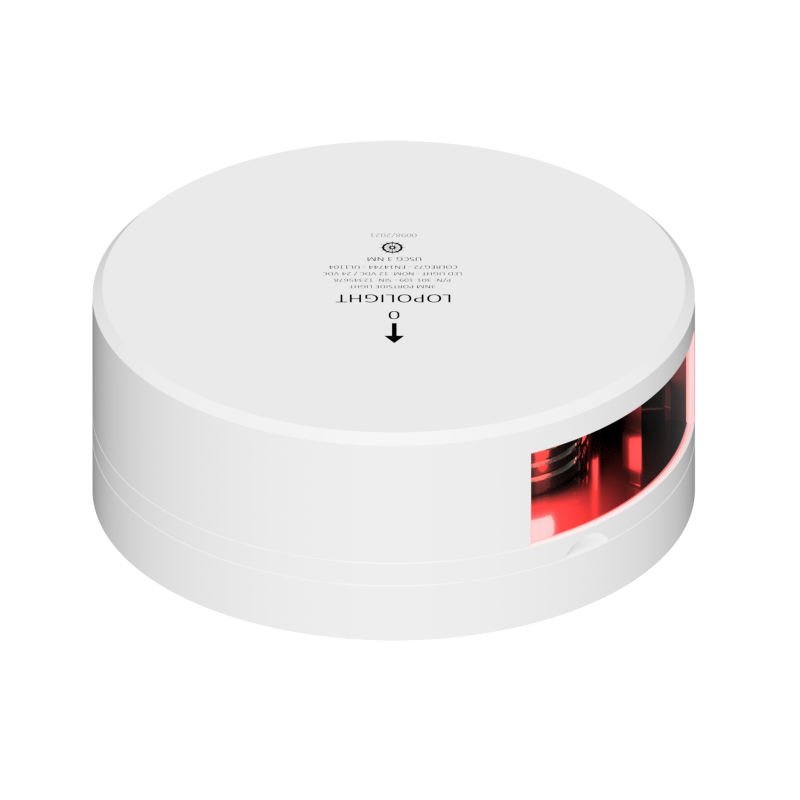

Lopolight 301-009-WH-UL - Navigation Light 2NM 112,5° Red, Port, White Ceramic Coated, UL
Designed for enhanced UL compliance, this port-side navigation light combines a white ceramic finish with an ultra-low aluminium mounting ring for seamless installation on medium to large vessels.
- Finish: White ceramic
- Mounting Ring: Ultra low aluminium
- Cable: 2.5 meter
- Number: 301-009-WH-UL
- Light Color: Red
- Dimensions (Metric): Ø92,5mm x 46mm
- Dimensions (Imperial): Ø3.6" x 1.8"
- Certification: Certified by DNV
- Intensity: >5.4cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2nm
- Included in Package: 1 Navigation light, 2 Mounting screws (M6 x 8mm), Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Operating Voltage: 10-32VDC
- EAN: 5704438041257
- IP Rating: IP68
- UPC Code: 879343041380
- Connection: 2.5m cable
- Current Consumption: 90mA @ 12VDC, 50mA @ 24VDC
- Vessel Size: 12-20M, 20-50M
- Weight: 1 Kg / 35.27 Oz
-
