The Lopolight 301-009-WH is a white ceramic port-side light for vessels under 50 meters. Providing 2NM red visibility, >5.4cd intensity, and 2W power draw, it features a horizontal mounting, IP68 protection, and durable ceramic-coated aluminum construction.
- Description
- Ask a Question
-

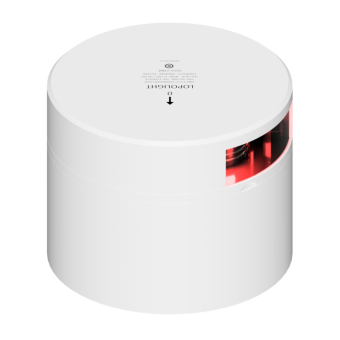

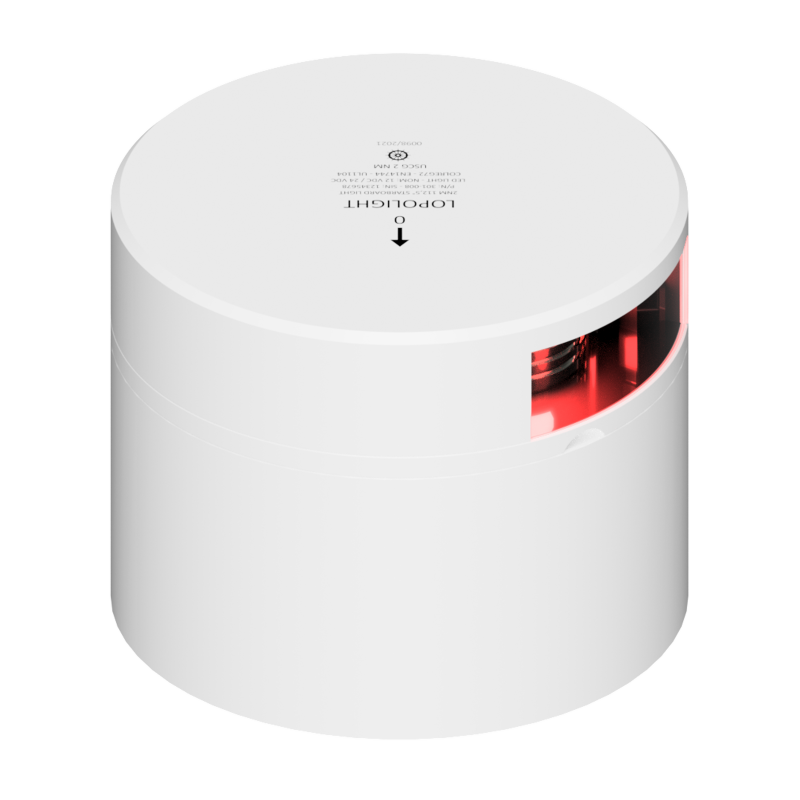

Lopolight 301-009-WH - Navigation Light 2NM 112,5° Red, Port, White Ceramic Coated
This robust navigation light offers reliable port-side illumination for vessels under 50 meters, featuring a durable white ceramic finish and high-quality construction.
- Finish: White ceramic
- Mount Base: Aluminium, white
- Cable Direction: Down only
- Included Standard Baseplate: Black PE
- Optional Baseplate: White ceramic coated
- Number: 301-009-WH
- Light Color: Red
- Dimensions (Metric): Ø92,5mm x 46mm
- Dimensions (Imperial): Ø3.6" x 1.8"
- Certification: Wheelmarked, based on DNV
- Intensity: >5.4cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2nm
- Included in Package: 1 Navigation light
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Ceramic coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438039339
- IP Rating: IP68
- Power Draw: 2W
- UPC Code: 879343039462
- Connection: Plug connector
- Current Consumption: 90mA @ 12VDC, 50mA @ 24VDC
- Vessel Size: Under 12M, 12-20M, 20-50M
- Minimum Feed Wire Gauge: 0.5mm² (AWG22)
- Weight: 0.86 Kg / 30.33 Oz
-
