SKU:
BP 301-009 REVERSE-CD
$ 767,23
1-2 weeks delivery time
-
+
The Lopolight 301-009 REVERSE-CD navigation light is designed for upside-down mounting, providing reliable red light visibility for vessels between 12 and 50 meters. Built with durable materials and certified to international standards, it offers a visibility of 2 nautical miles and an intensity greater than 5.4cd, ensuring safety in marine environments. The light features a horizontal mounting, silver anodized aluminum body, PMMA lens, and plug connector, operating on 10-32VDC with IP68 protection.
- Description
- Ask a Question
-

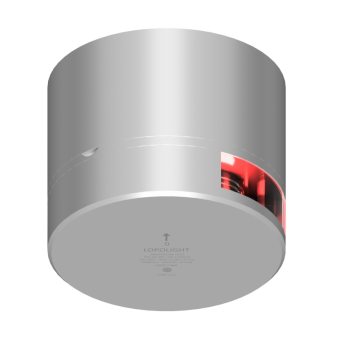

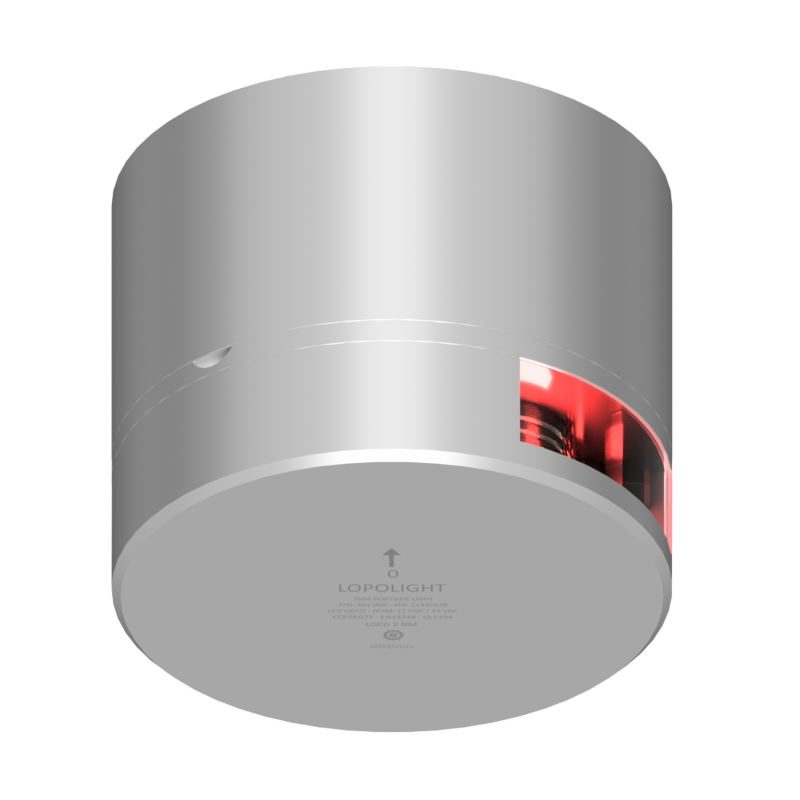

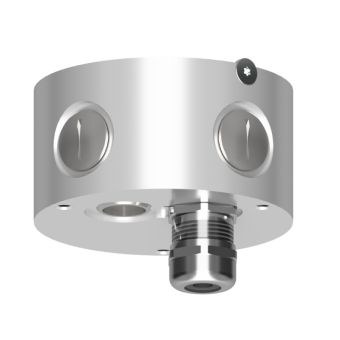

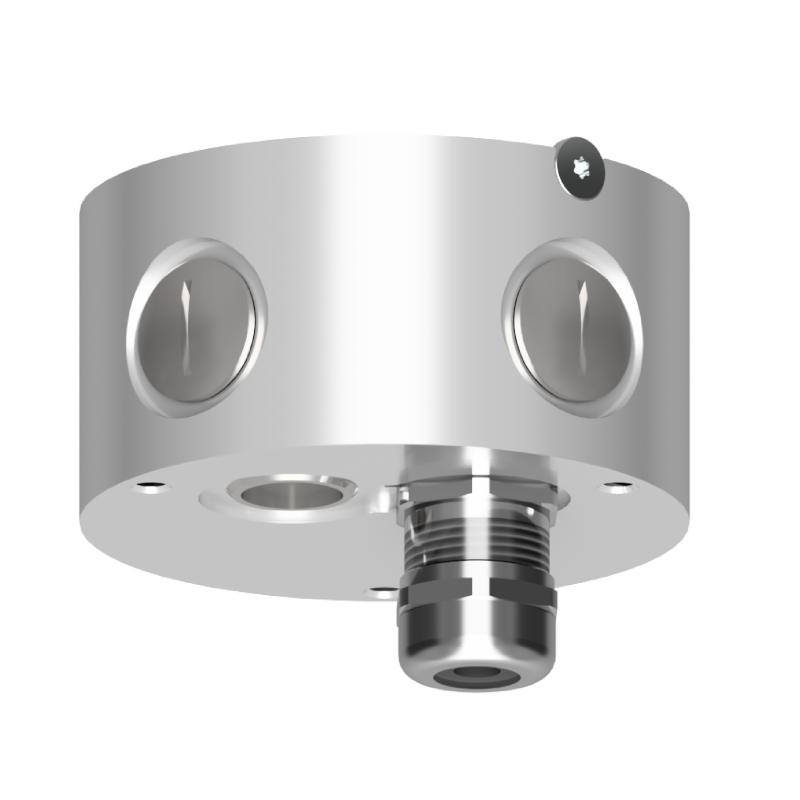

Lopolight 301-009 REVERSE-CD - Navigation Light 2NM 112,5° Red, Upside/Down w/Conn & CS/CD-Base
This navigation light is designed for mounting upside down, providing reliable red light visibility for vessels between 12 and 50 meters. Crafted with durable materials and certified to international standards, it ensures safety and performance in marine environments.
- Number: 301-009 REVERSE-CSCD
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 74,5mm
- Dimensions (imperial): Ø3.6" x 2.9"
- Certification: Certified by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2nm
- Intensity: >5.4cd
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Connection: Plug connector
- Current consumption (mA @ 12VDC): 90
- Current consumption (mA @ 24VDC): 50
- Vessel Size: 12-20M, 20-50M
- IP Rating: IP68
- EAN: 5704438046665
- UPC Code: 879343046798
-
