SKU:
BP 301-009-FB REVERSE
$ 491,24
1-2 weeks delivery time
-
+
The Lopolight 301-009-FB REVERSE is a compact red port light designed for horizontal upside-down mounting. With a 2.5m shielded marine cable and FB base, it delivers 2NM visibility, operates on 10-32VDC, and is certified by DNV. It is suitable for vessels under 12 meters and up to 50 meters.
- Description
- Ask a Question
-

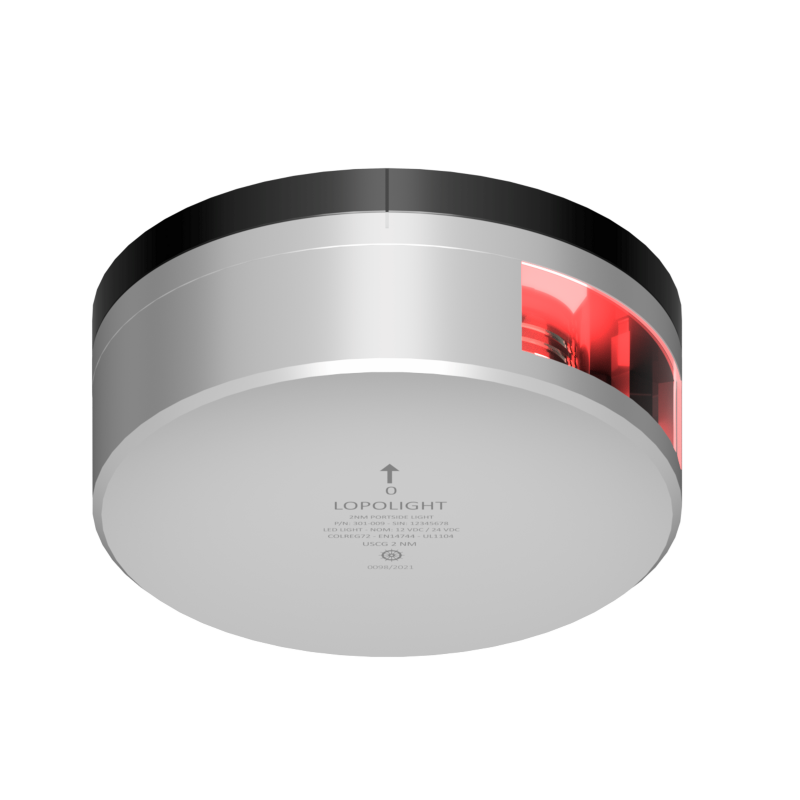

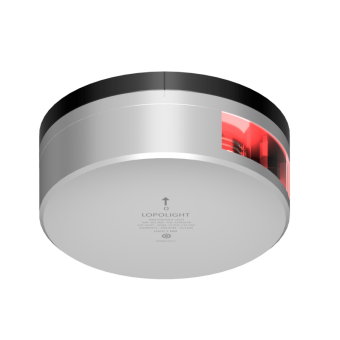

Lopolight 301-009-FB REVERSE - Navigation Light 2NM 112,5° Red, Port, Sgl, Upside/Down w/FB Base
This compact red port navigation light ensures reliable visibility up to 2 nautical miles and is designed for horizontal mounting on smaller vessels.
- Mounting: Horizontal
- Cable: 2.5m shielded marine grade cable
- Mounting System: FB (flat base) POM
- Number: 301-009-FB REVERSE
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 36mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Certification: DNV
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2nm
- Included: 1 navigation light, precabled with 2.5m cable, installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 1.2 W
- Current Consumption: 90 mA @ 12VDC, 50 mA @ 24VDC
- Vessel Size: Under 12M, 12-20M, 20-50M
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 0.57 Kg / 19.93 Oz
- EAN: 5704438043732
- UPC: 879343043865
-
