SKU:
BP 301-009-FB-B 6M
$ 628,25
1-2 weeks delivery time
-
+
The Lopolight 301-009-FB-B 6M is a black port light with a 6-meter FB base cable, horizontally mounted for 2NM red visibility. It is DNV certified, IP68 rated, suitable for vessels under 12 to 50 meters, and operates on 10-32VDC with a current draw of 90mA at 12VDC or 50mA at 24VDC.
- Description
- Ask a Question
-

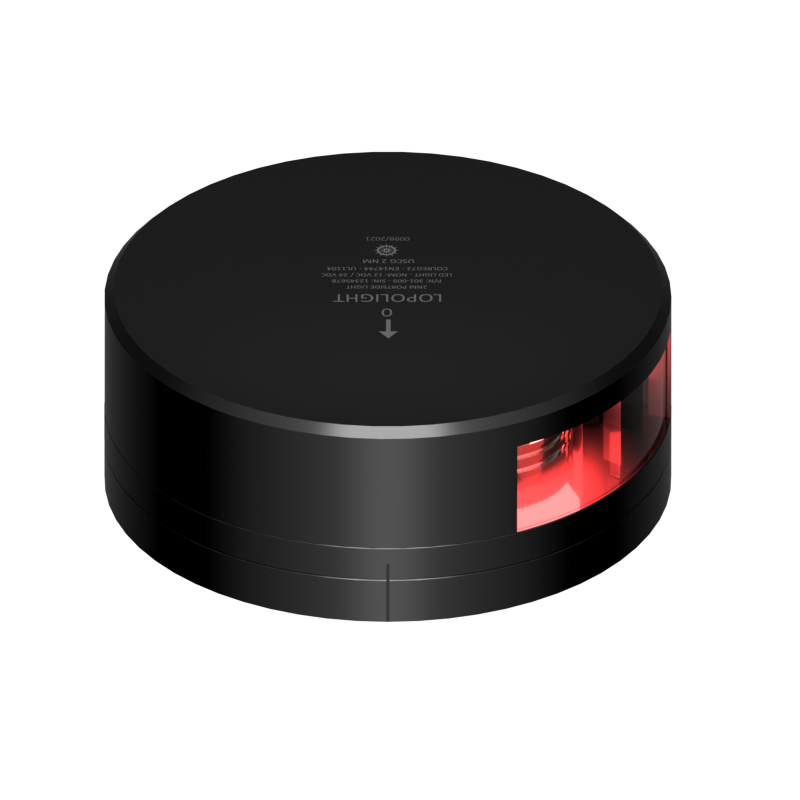

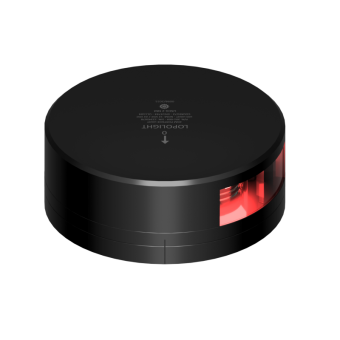

Lopolight 301-009-FB-B 6M - Navigation Light 2NM 112,5° Red, Port, Black w/FB Base
This black port navigation light provides dependable 2 nautical mile visibility and comes with a longer cable for flexible installation options on medium to large vessels.
- Mounting: Horizontal
- Cable: 6m shielded marine grade cable
- Mounting System: FB (flat base) POM
- Number: 301-009-FB-B 6M
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 36mm
- Dimensions (imperial): Ø3.6" x 1.4"
- Certification: DNV
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2nm
- Included: 1 navigation light, precabled with 2.5m cable, installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 1.2 W
- Current Consumption: 90 mA @ 12VDC, 50 mA @ 24VDC
- Vessel Size: Under 12M, 12-20M, 20-50M
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 0.70 Kg / 24.80 Oz
- EAN: 5704438043756
- UPC: 879343043889
-
