SKU:
BP 301-009-B-UL 6M
$ 628,25
1-2 weeks delivery time
-
+
The Lopolight 301-009-B-UL 6M is a horizontally mounted black anodized port navigation light with a 6-meter cable. Suitable for vessels 12-50 meters, it provides 2NM red light visibility, >5.4cd intensity, and operates on 10-32VDC. Certified by DNV, it features IP68 protection, durable materials, and a current consumption of 90mA at 12VDC or 50mA at 24VDC.
- Description
- Ask a Question
-

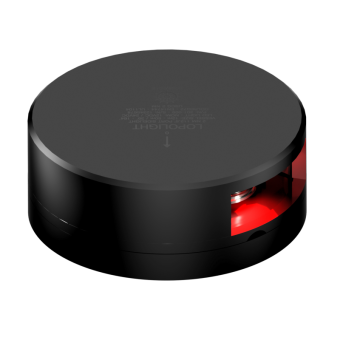

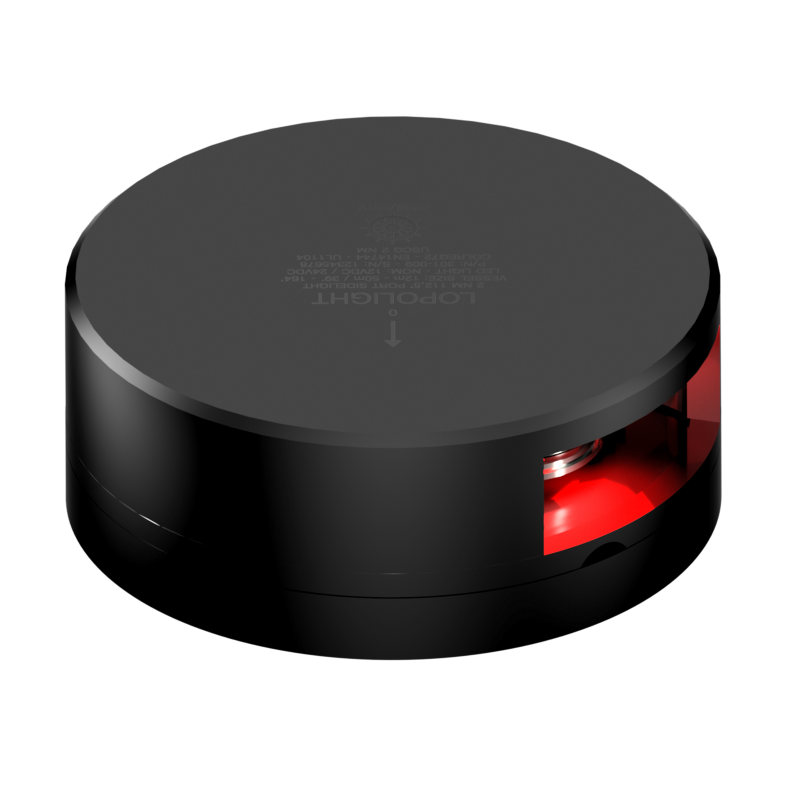

Lopolight 301-009-B-UL 6M - Navigation Light 2NM 112,5° Red, Port, Black Anodized
Designed for horizontal mounting, this navigation light comes with a 6m cable and high-quality black anodized finish for durability.
- Horizontally mounted on a 400-036-B Ultra-low base
- Number: 301-009-B-UL 6M
- Light Color: Red
- Dimensions: Ø92,5mm x 74,5mm (Ø3.6"" x 2.9"")
- Certification: Certified by DNV
- Intensity: >5.4cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2nm
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP rating: IP68
- Power draw: 1.2 W
- Connection: 6m cable
- Current consumption (mA @ 12VDC): 90
- Current consumption (mA @ 24VDC): 50
- Vessel size: 12-20M, 20-50M
- Min. feed wire gauge: 0.5mm² AWG22
- Weight: 0.9 Kg / 31.74 Oz
- EAN: 5704438014732
- UPC Code: 879343014735
-
