SKU:
BP 301-009-B-CD
$ 767,23
1-2 weeks delivery time
-
+
The Lopolight 301-009-B-CD is a black anodized port-side navigation light offering 2NM red visibility. Suitable for vessels from 12 to 50 meters, it is horizontally mounted, DNV certified, and built from durable materials including aluminum and PMMA lens. The light operates on 10-32VDC, with a plug connector, IP68 protection, and current consumption of 90mA at 12VDC and 50mA at 24VDC.
- Description
- Ask a Question
-

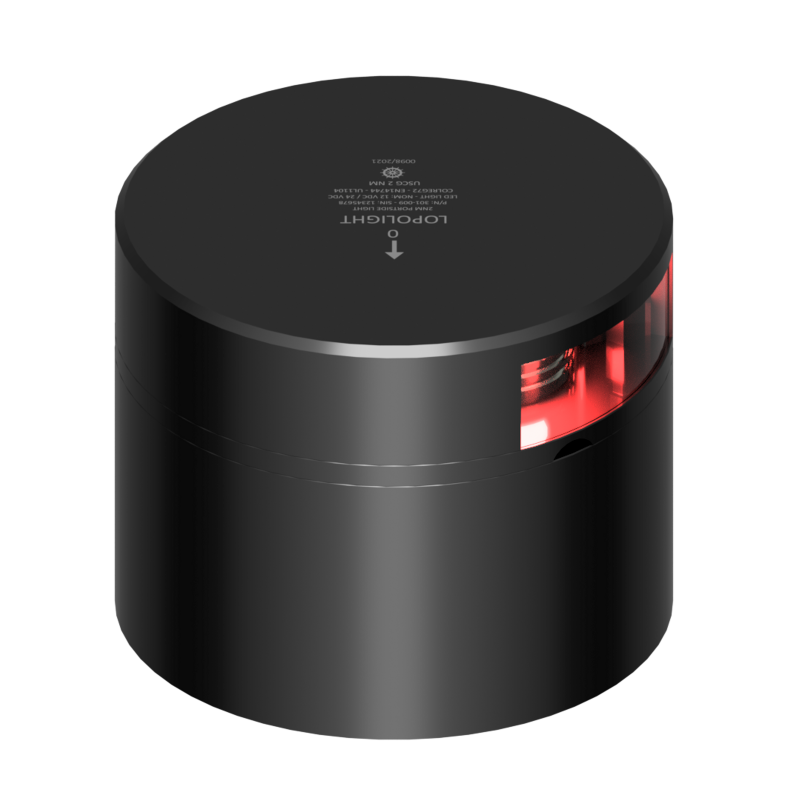

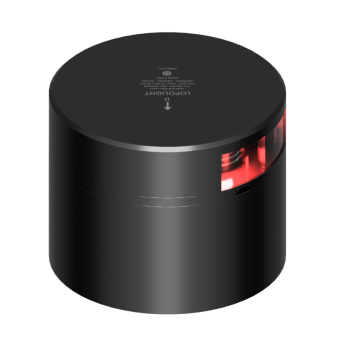

Lopolight 301-009-B-CD - Navigation Light 2NM 112,5° Red, Port, Black w/Connector & CD-Base
Engineered for port-side installation, this black anodized navigation light offers 2NM red light visibility. Designed for durability and certified to meet marine safety standards, it is ideal for vessels ranging from 12 to 50 meters.
- Number: 301-009-B-CD
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 74,5mm
- Dimensions (imperial): Ø3.6" x 2.9"
- Certification: Certified by DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 2nm
- Intensity: >5.4cd
- Included in Package: 1 Navigation light
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Connection: Plug connector
- Current consumption (mA @ 12VDC): 90
- Current consumption (mA @ 24VDC): 50
- Vessel Size: 12-20M, 20-50M
- IP Rating: IP68
- EAN: 5704438044975
- UPC Code: 879343045104
-
