SKU:
BP 301-008ST-PRO-EX
$ 1.672,55
1-2 weeks delivery time
-
+
The Lopolight 301-008ST-PRO-EX is an ATEX and IEC Ex certified double starboard light designed for hazardous areas (Zones 1 & 2). It is mounted horizontally on an aluminum base, features IP68 protection, 2NM visibility, and meets strict international marine and explosion-proof standards.
- Description
- Ask a Question
-

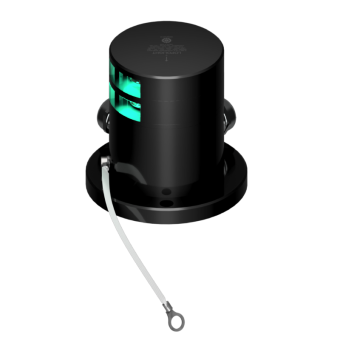

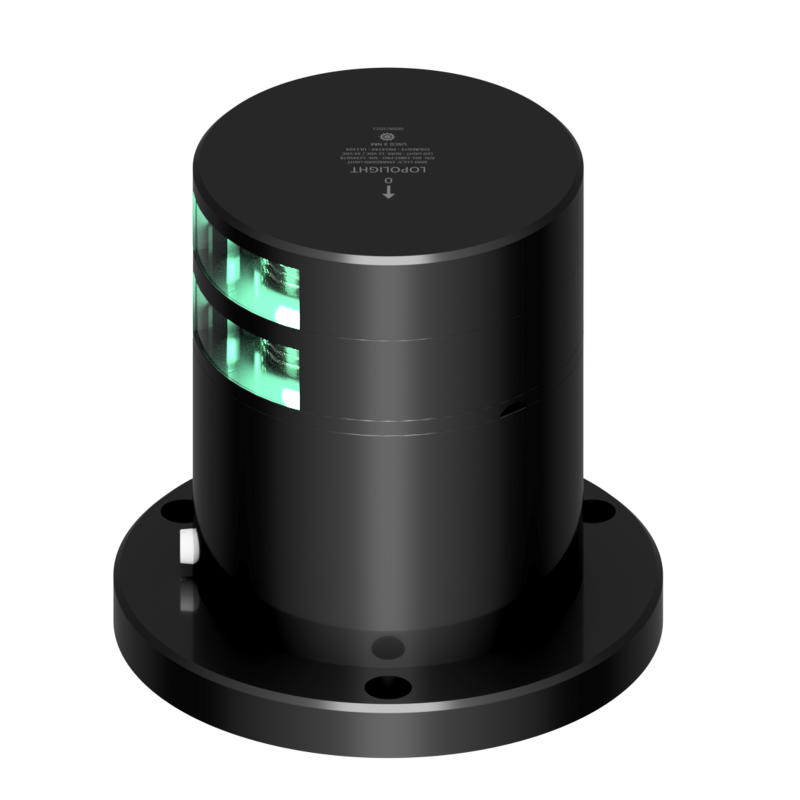

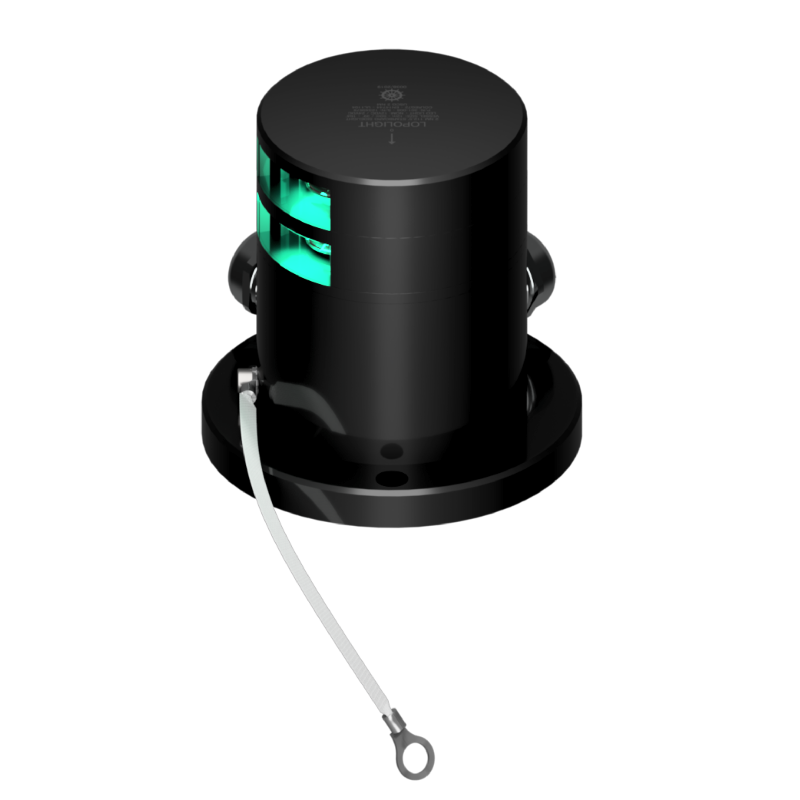

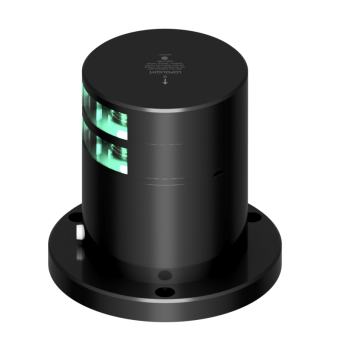

Lopolight 301-008ST-PRO-EX - Navigation Light 2NM 112,5° Green, Starboard, Double, Black Ex Zone 1&2
Designed for use in hazardous areas, this ATEX and IEC Ex certified navigation light ensures safe and reliable starboard signaling in Zones 1 and 2.
- Mounting: Horizontally on 400-037-B aluminum base (IP68)
- Cable Direction: Side
- Included: HDPE Base Plate
- No cable glands or ground strap included
- Product Number: 301-008ST-PRO-EX
- Light Color: Green
- Dimensions: Ø92,5mm x 125,5mm (Ø3.6" x 4.9")
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 2nm
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 1 W
- Current Consumption: 100 mA @ 12VDC, 57 mA @ 24VDC
- Connection: Plug connector
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: Under 12M, 12-20M, 20-50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.41 Kg (49.73 Oz)
- EAN: 5704438038219
- UPC Code: 879343038342
-
