SKU:
BP 201-014ST-PRO-I-EX
$ 3.512,33
1-2 weeks delivery time
-
+
The Lopolight 201-014ST-PRO-I-EX 360° red double light combines EX Zone 1 & 2 certification with Ice-Class de-icing functionality. It features black hard coat anodized aluminum, horizontal mounting, IP68 rating, and operates from 10-32VDC, ensuring 2NM visibility.
- Description
- Ask a Question
-

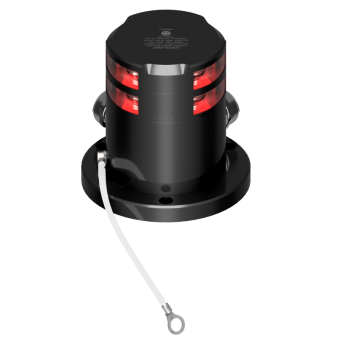

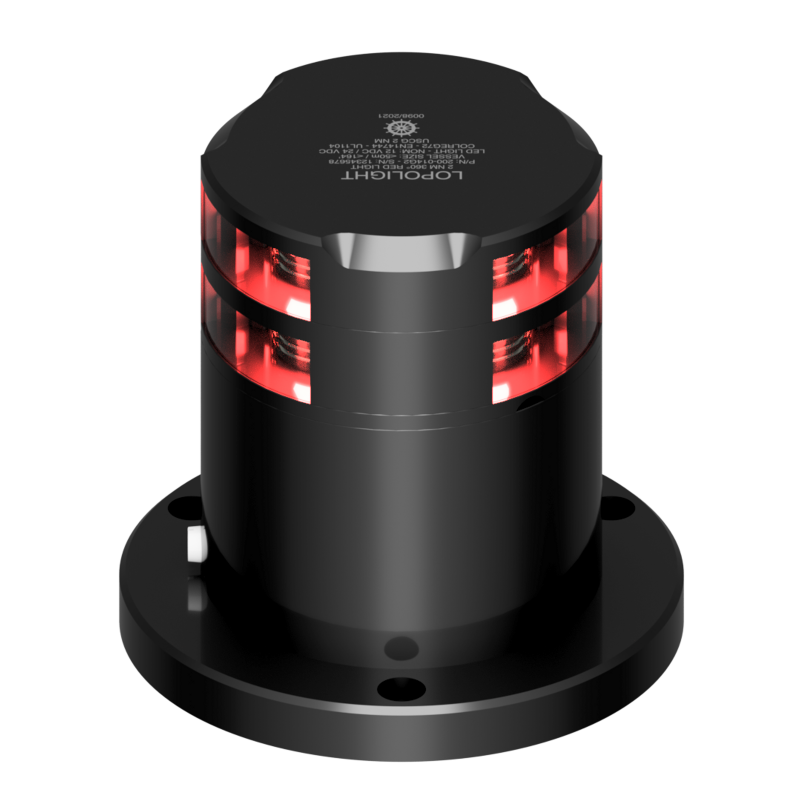

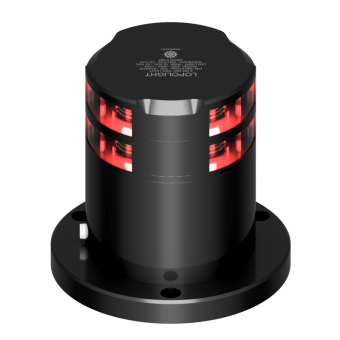

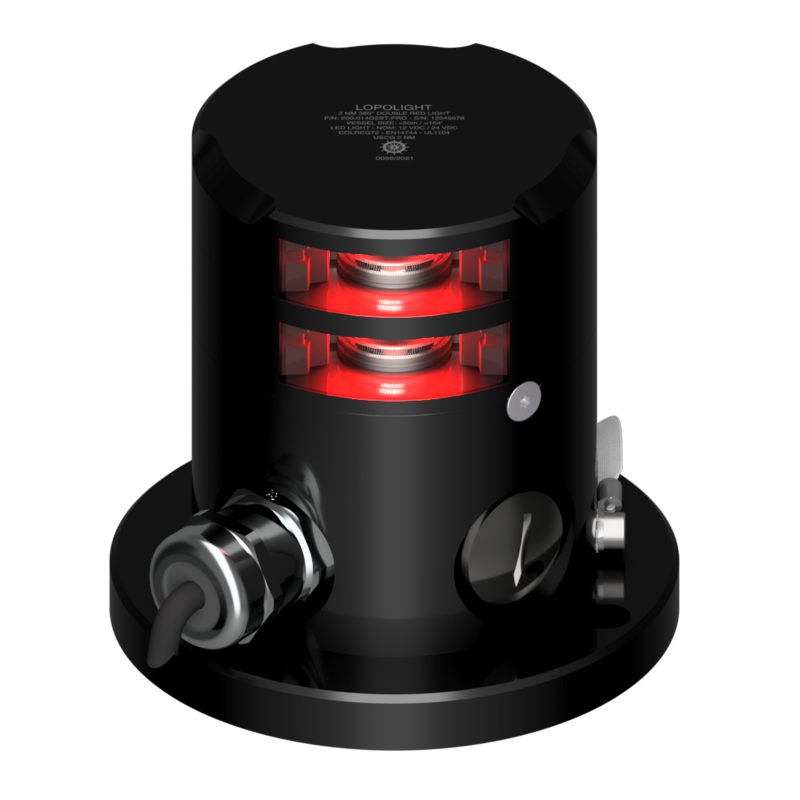

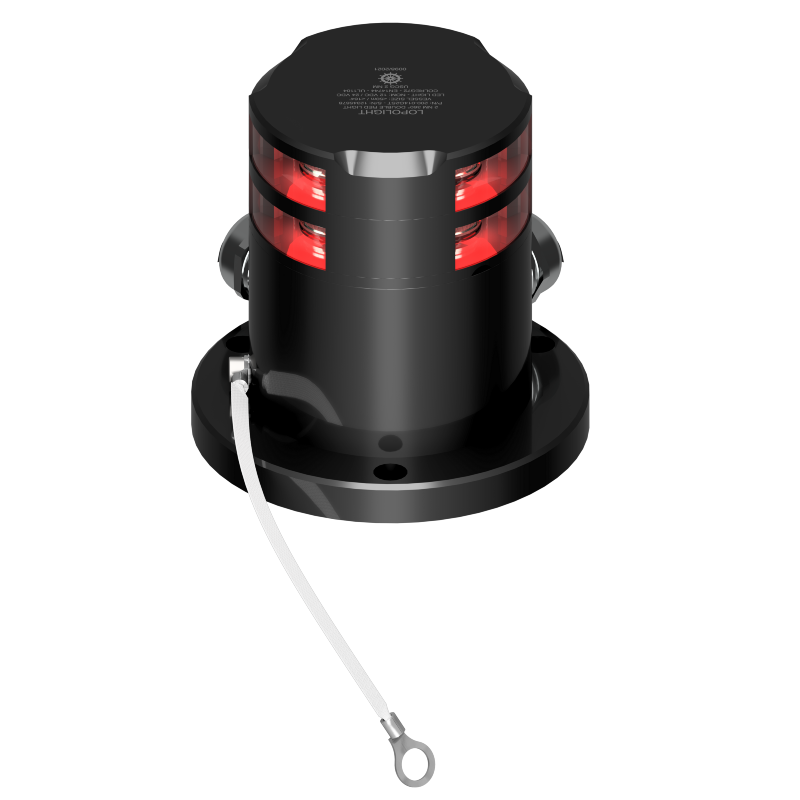

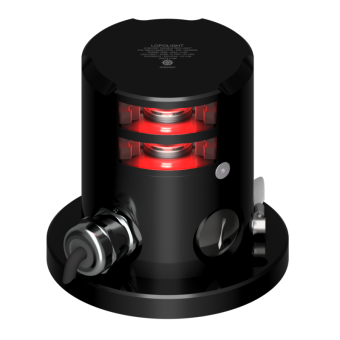

Lopolight 201-014ST-PRO-I-EX - Navigation Light 2NM 360° Red, Double, EX Zone 1&2, Ice-Class
This EX-certified 360° red double navigation light combines Ice-Class de-icing functionality with ATEX Zone 1 & 2 approval. It is built for hazardous marine environments and ensures consistent visibility up to 2 nautical miles.
- Number: 201-014ST-PRO-I-EX
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 125,5mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Certification: Certified by DNV, Dancert (Ex mb eb IIB T5 Gb), and ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 2nm
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal on 400-037 EX/MIL alu base, cable direction side, includes HDPE base plate, no cable glands or ground strap
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438040663
- UPC Code: 879343040796
- IP Rating: IP68
- Connection: Plug connector
- Current Consumption: 150 mA @ 12VDC, 85 mA @ 24VDC
- Power Draw: 2 W
- Special Attributes: Ice-class defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: Under 12M, 12-20M, 20-50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.4 Kg / 49.38 Oz
-
