SKU:
TN 00302131
€ 2.896,36
1-2 weeks delivery time
-
+
The Båtsystem DV32-1KIT is designed for angled transoms, including davit arms, premium blocks, fittings, and mounting hardware. Made from polished stainless steel, it supports up to 200 kg and allows easy lifting and movement of dinghies with a 1530 mm scope.
- Description
- Ask a Question
-
Båtsystem DV32-1KIT - Davit Set for Angled Transom, Including Blocks

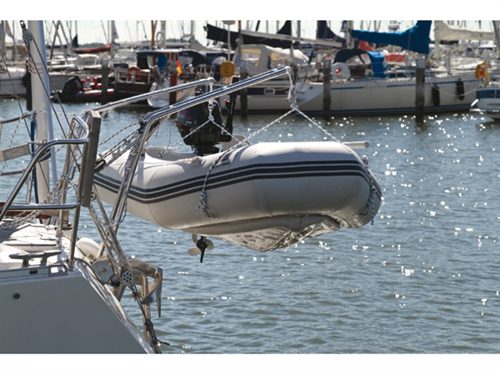

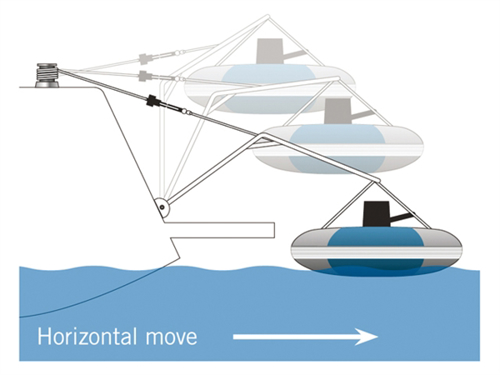

This davit set offers everything needed to handle a dinghy safely and effortlessly. Constructed to be strong, smooth, and reliable, it simplifies dinghy operation by using only pulling and compressive forces. This allows vertical lifting and horizontal movement, keeping the dinghy clear of the boat, for example over a swimming platform.

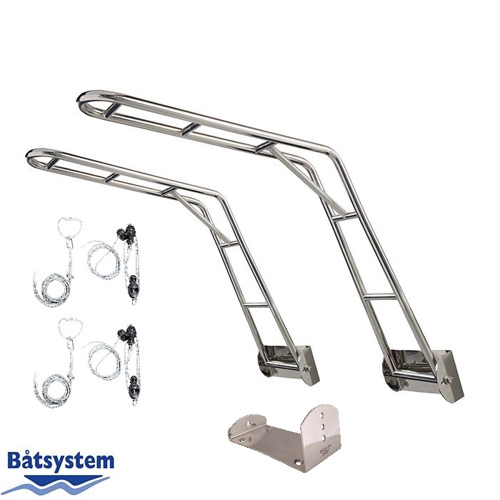

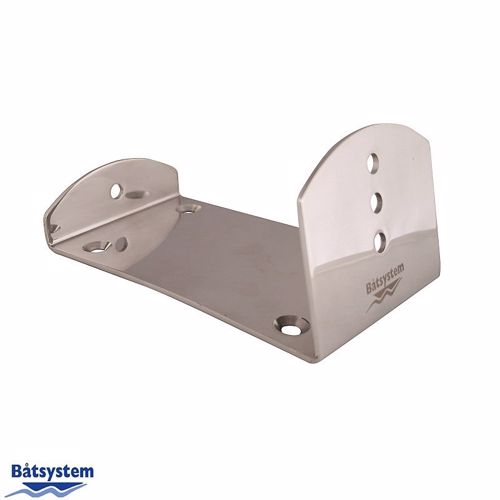

- Includes: 2 davit arms, 2 sets of blocks with 4-fold delay and lines, 2 fittings for round transom, and mounting hardware.
- Material: Hand-polished AiSi 316 stainless steel with premium quality blocks and lines.
- Maximum load: 200 kg per set; half of that for a single arm when lifting one load.
- Suitable for angled transoms of 5°, 10°, or 15°.

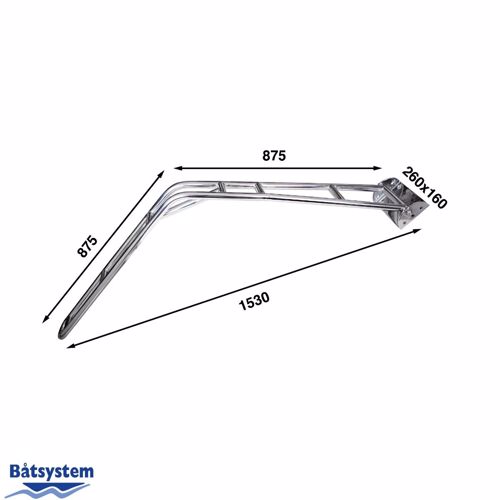

- Scope: 1530 mm; Tube diameter: 32 mm; Product height and length: 875 mm.
- Order number: 00302131; Supplier code: DV32-1KIT; Barcode: 7332640011843.
-
