€ 28,14
1-2 weeks delivery time
-
+
The Båtsystem 9815 stainless steel flat end fitting is part of the Fibre Carbon Rail System and supports versatile mounting options with screws or bolts. It features a flat end design, an integrated hidden thread, and durable construction with a 60 mm height and 25 mm diameter.
- Description
- Ask a Question
-

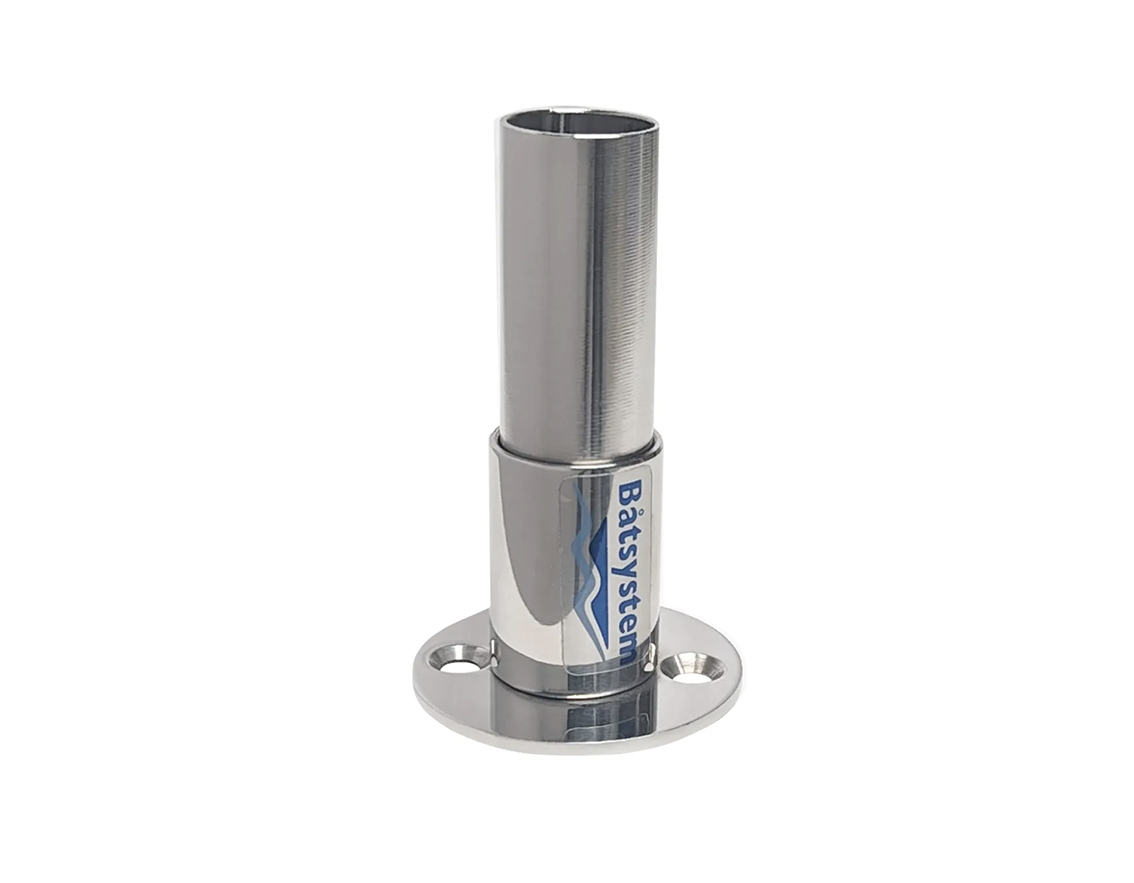

Båtsystem 9815 - Flat End Fitting, Stainless Steel, Modular System

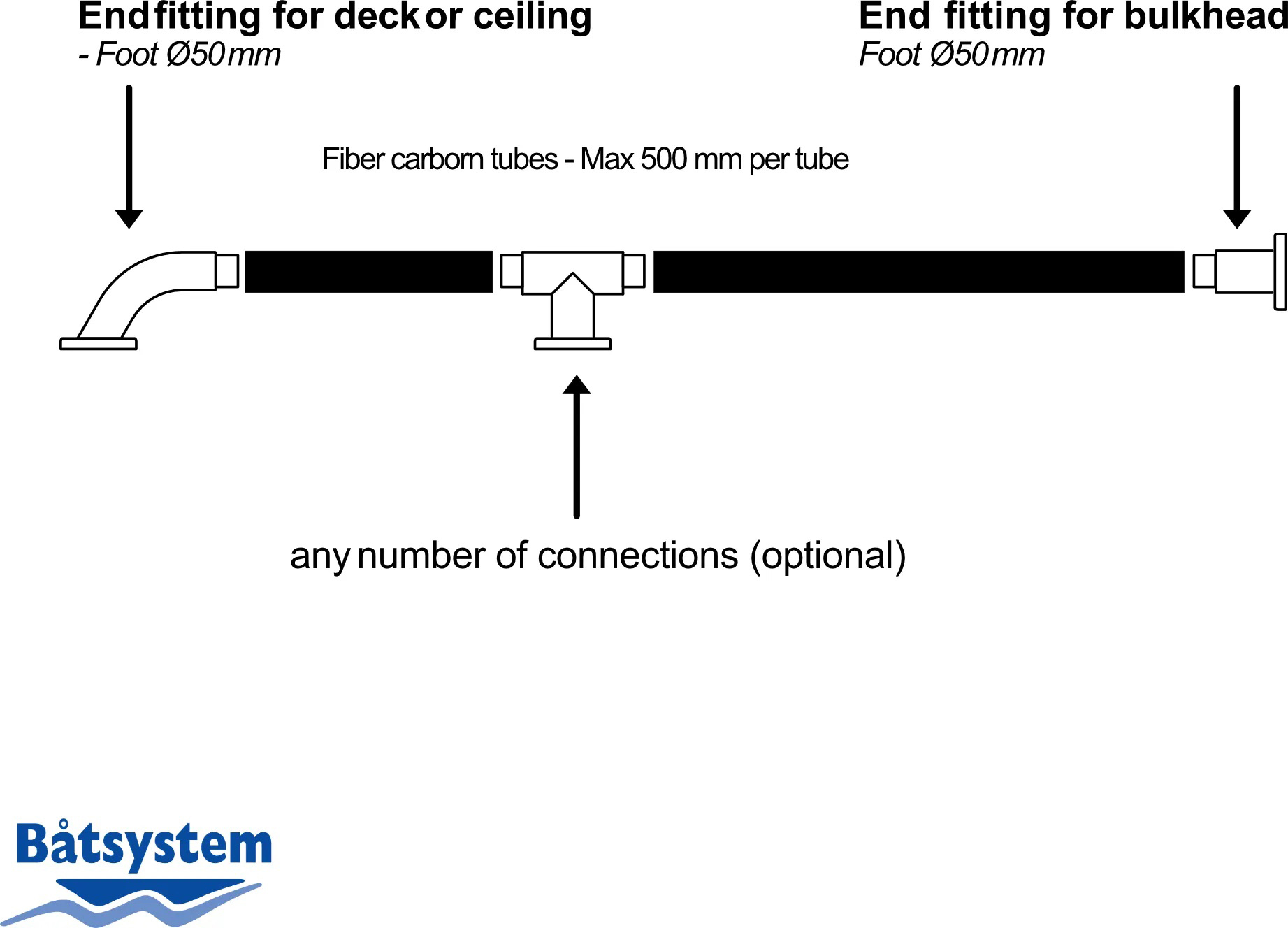

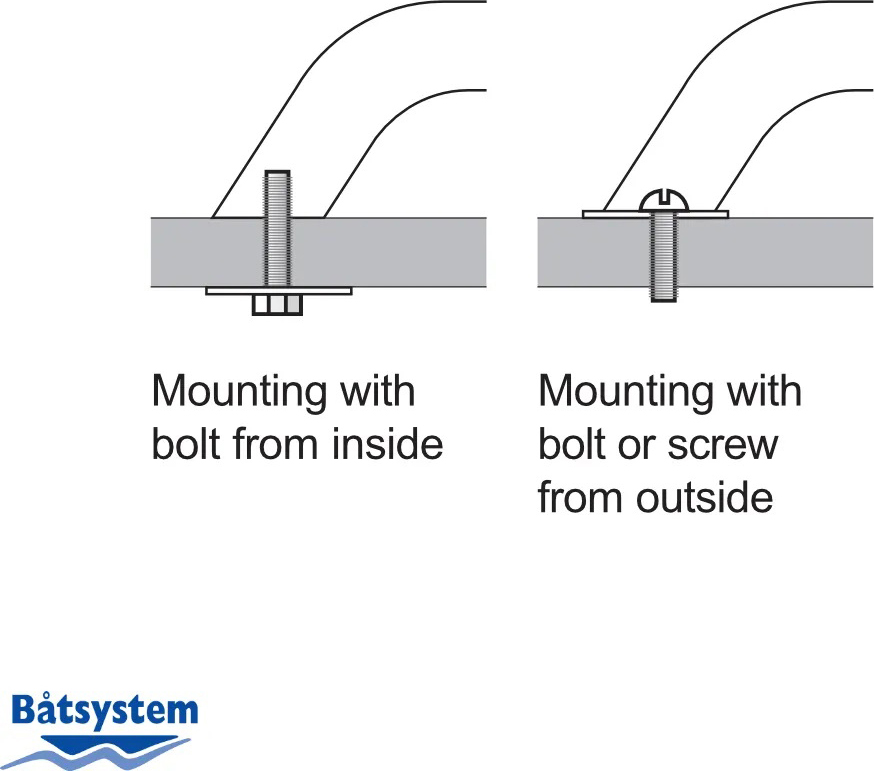

This stainless steel end fitting is part of the Båtsystem Fibre Carbon Rail System (FCRS), designed for versatile mounting options. You can install it either using two countersunk screws from above or with an 8mm bolt from underneath that screws into the integrated hidden thread inside the foot of the fitting.
- Order number: 00302243
- Supplier code: 9815 / GRB-CF-E
- Barcode: 7332640019481
- Product height: 60 mm
- Product diameter: 25 mm
- Execution: Flat end fitting
- Material: Stainless steel
- Thread size: 8 mm
- Flange diameter: 50 mm
-
