€ 45,44
1-2 weeks delivery time
-
+
The Båtsystem 8762 stainless steel end fitting features a 90-degree angle and is designed for the Fibre Carbon Rail System (FCRS). It offers versatile mounting with countersunk screws or an 8mm bolt, includes an integrated hidden thread for secure fitting, and has dimensions suited for robust construction.
- Description
- Ask a Question
-

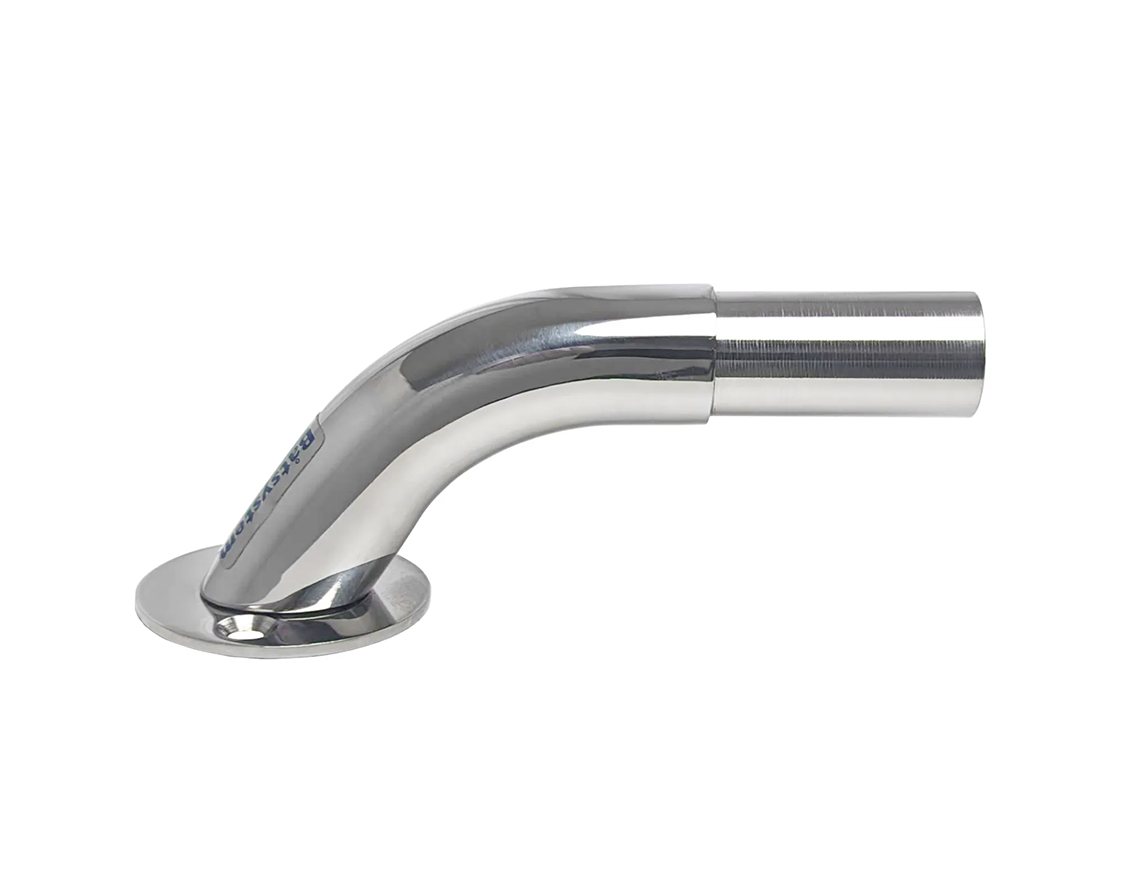

Båtsystem 8762 - End Fitting 90 Degrees, Stainless Steel, Modular System

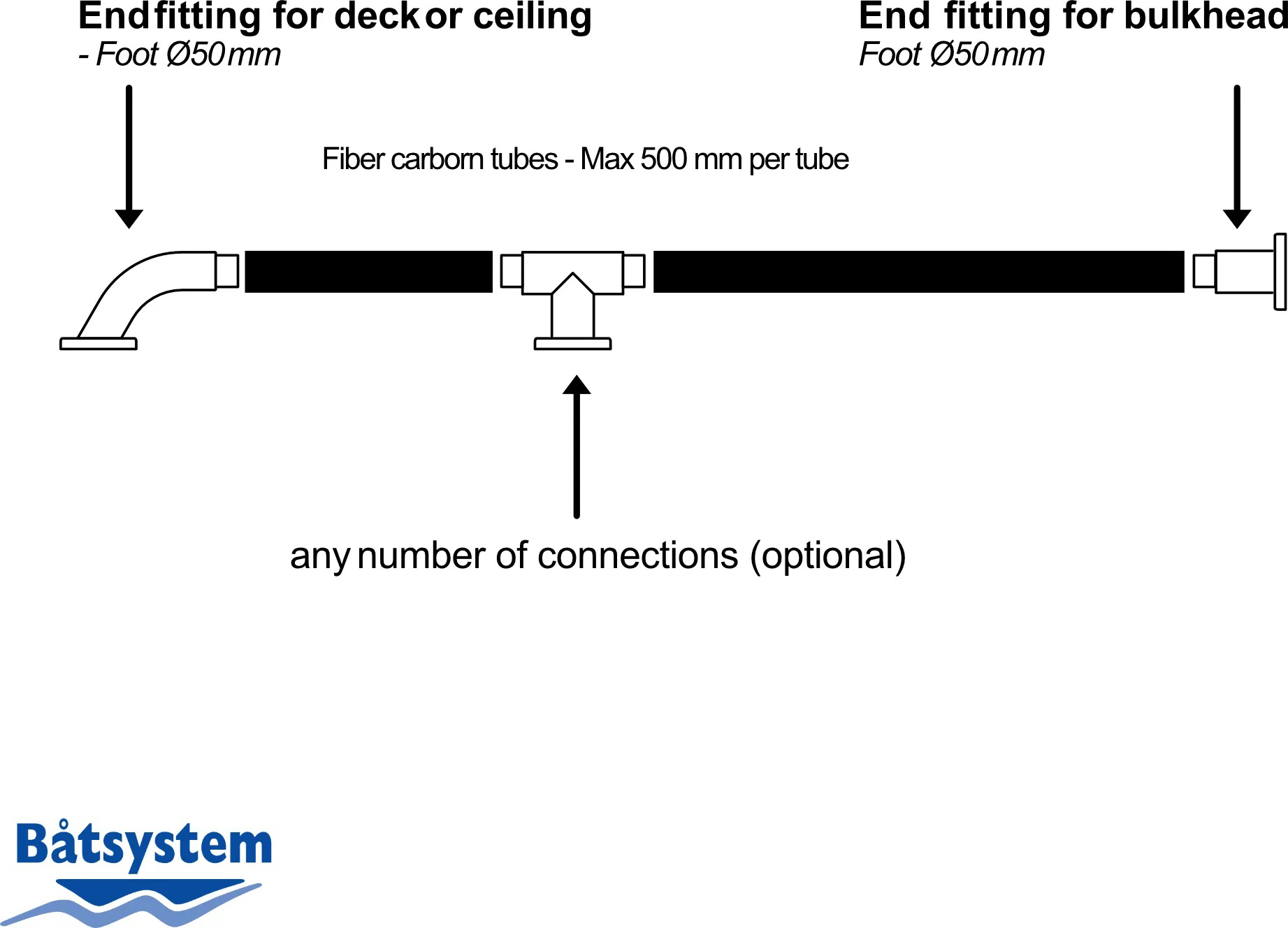

This stainless steel end fitting with a 90° angle is an essential component for the Båtsystem Fibre Carbon Rail System (FCRS), offering versatile mounting options and robust construction.
- Constructed from durable stainless steel
- Designed for 90-degree end fitting applications

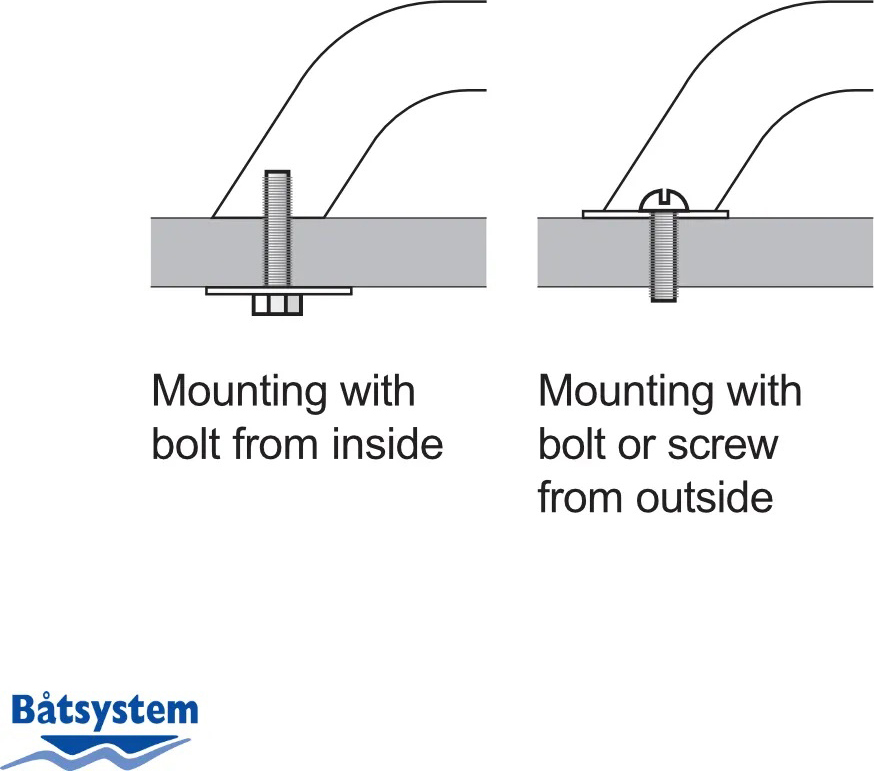

- Two mounting methods: countersunk screws from above or 8mm bolt from below
- Invisible integrated thread for secure fitting
- Compatible with separately purchased carbon tubes
- Product height: 60 mm
- Product diameter: 25 mm
- Flange diameter: 50 mm
- Thread size: 8 mm
- Order number: 00302245
- Supplier code: 8762 / GRB-CF-90
- Barcode: 7332640017425
-
