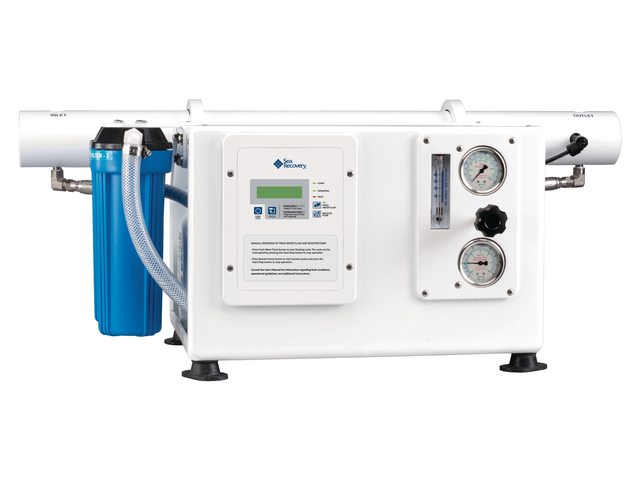

Sea Recovery A042M170 - Aqua Whisper Mini 170 Modular

Sea Recovery A042M170 - Aqua Whisper Mini 170 Modular

The Sea Recovery Aqua Whisper Mini Series offers the smallest line of watermakers, designed to fit anywhere with minimal hassle. Measuring at about 2 - 3 cubic feet, this desalinator is perfect for sail and small power boaters, providing the convenience of a Sea Recovery watermaker without space restrictions. Despite its compact size, it can produce between 170 - 750 GPD (644 - 2,839 LPD) in capacity, making it an ideal seaworthy companion for solo cruisers. Weighing at most 130 lbs, it's significantly more convenient than hauling around heavy water tanks, offering compact boaters the opportunity to carry minimal weight, save space, and cruise without limits to any destination they wish.

Featuring a simple interface with push-button operation, the Aqua Whisper Mini can be monitored via the control panel or remote (optional). Offering Semi-Automatic Functions, 6 illuminated LED status indication lamps for system operation, and optional weekly automatic fresh water flush, this watermaker is perfect for small power and sail boats.

Technology:

• Low AC power Consumption
• DC power available for Aqua Whisper Mini 170

Meters/Monitors:

• Hour Meter for keeping accurate ship's logs & schedule preventative maintenance.
• New solid state electronic flow meters for visual monitoring of the product water and feed water flow used to calculate production rates of the system
• Exclusive Solid Salinity Meter shows actual product water quality, an essential tool for product water monitoring
• Product water quality is displayed in bar graph format with 10 additional LEDs

Service/Maintenance:

• Fault LED indication is provided for easy diagnosis of required maintenance
• The Aqua Whisper Mini is shipped from the factory ready to install and function
• There are no optional items required, and a complete installation kit is also included along with a comprehensive and detailed Owner's Operation & Maintenance Manual
• Worldwide Service and Sales Network for immediate attention regardless of location
• Technical service dedicated to excellent system performance
• With the most stable controller in the market, the Aqua Whisper Mini keeps up it's reputation as the smallest, most reliable watermaker used by boaters around the world
• With better maintenance access

Pump:

• Exclusive high efficiency booster pump for extended pre-filter life
• Quiet high pressure pump runs smooth and is free of pulsations
• Noise Reduction Features
• Including: The quiet stainless steel high pressure pump is specifically designed for sea water reverse osmosis applications. The unique design of this high pressure pump reduces noise level to a negligent hum
• Low noise manifold design
• Vibration isolation mounts included

Materials:

• Dedicated heavy duty Magnetic Latching Relays for each motor integrated in the system
• 316 Stainless Steel Pressure Transducers for accurate measurement of system functions
• New High rejection / high yield membrane element that produces higher quality product water in a smaller space
• Fiberglass Reinforced High Pressure Membrane Vessel is stronger and eliminates corrosion

Safety:

• A failsafe Product Water Diversion Valve
• Unique Low Voltage Control Circuitry, shielded terminals, and covered high voltage components for end-user safety
• Safety alarm features

Accessories:

• Push button remote control available
• A Soft Motor Starter is available for single phase AC powered systems that reduces start up power by 60%
• Clear viewable Sea Strainer with a cleanable Monel Mesh Screen filter for ultimate corrosion resistance and large particulate removal
• Optional - pH Neutralizer, and Automatic Fresh Water Flush

Technical Specifications:

• Brand: Sea Recovery
• Water Production (GPD): 170
• Application: Leisure Marine
• Configuration: Modular
• Product Type: Watermaker
• Performance: +-15% 850 psi / 56 Bar, 77°F / 25°C & 35,000 ppm TDS typical sea water
• Water Flow Rate: 170 Gal/day, 644 L/day
• Pump Type: Exclusive high-efficiency Booster Pump
• Reverse Osmosis Membrane Type: High Rejection/High Yield aromatic tri-polyamind, thin film composite, spiral wound, single pass reverse osmosis membrane element
• Filter Type: Pre and post treatment stages, including monel screen
• Power Source: AC or DC
• Pressure Adjustment Control Type: Manual
• Minimum Inlet Pressure Rating: N/A
• Salt Rejection: 99.2, Average 99.4 %
• Salinity Monitoring: Automatic electronic monitoring. Temperature compensated with the digital continuous readout. The salinity monitoring components of the system give a continuous TDS readout in ppm (parts per million), are temperature compensated, and of a fail safe design.
• Salinity Range: Designed for seawater use up to 50,000 ppm TDS (Nacl) (typical seawater salinity is 35,000 ppm.)
• Water Feed Temperature Range: Min. 33°F / .5°C Max. 122°F / 50°C
• Output Water Temperature Range: Ambient to feed water temperature
• Feed Water Flow Rate: 4.5 gpm / 17 lpm (depending on system)
• Chlorine Tolerance: 0.1 ppm
• pH Range: 3-11 (typical seawater pH is 8)
• Pressure Rating: Feed Water Minimum: 6 psi / .41 bar / .42 Kg/cm2; Maximum: 35 psi / 2.41 bar / 2.46 Kg/cm2
• Operation Type: Seawater @ 35,000 ppm & 77° F / 25° C; Nominal: 850 psi / 56.5 bar / 57.66 Kg/cm2
• Weight: 70 lbs / 32 Kg
• Height: 26"/660 mm
• Width: 8"/200 mm
• Length: 11"/281 mm
• External Water Installation Connection Type: N/A
• Electrical Requirements: See Brochure Under Product Support
• Configuration: Modular
