MXN Monitor 7" Type MXN-HD7DMQ 10-30V Quad HD

MXN Monitor 7" Type MXN-HD7DMQ 10-30V Quad HD

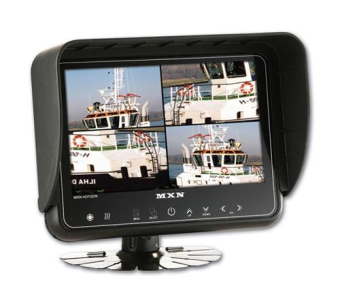

The MXN-HD7DMQ is a high-performance 7-inch monitor designed for various surveillance applications. With its robust features and compatibility with multiple camera systems, it ensures reliable performance in diverse environments.

• Screen: 7-inch high-resolution digital TFT LCD screen for sharp and clear image display.
• Camera Support:
  • Supports shutter cameras, ideal for use as a rearview camera or in other surveillance setups.
  • Camera heating support to prevent condensation or freezing in cold conditions.

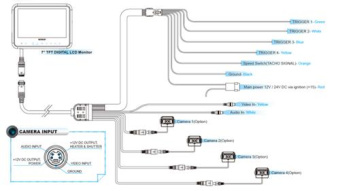

  • 4 camera inputs for connecting multiple cameras, offering flexibility in installation and use.
  • 1 AV output for displaying images on an external screen.
• Automatic Functions:
  • Automatic brightness adjustment, adapting the screen brightness to surrounding light conditions for optimal visibility.
  • Auto Scan function to automatically switch between connected cameras, useful for monitoring multiple areas or angles.
  • Automatic on/off function, activating the monitor when the vehicle starts or another trigger signal is detected and turning off when the system is not in use.
• Compatibility: NTSC/PAL compatible, working with various video systems and formats.
• Sales Unit: 1 Piece

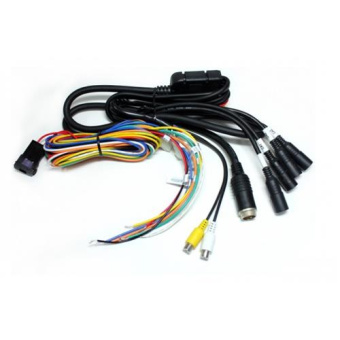

• Connections: 4 x 4-pin mini DIN, 1 x RCA A/V input
• Brightness: 500 cd/m²
• Included: Mounting materials & sunshade
• Prepared for: Cameras with motorized shutter and camera heating
• Operating Temperature: -25° / +75°C
• Screen Diagonal: 7" / 17.5 cm
• Resolution: 800 x 480
• Protection Class: IP67
• EAN Code: 8809338842014
• Brand: MXN
• Compatible with: all MXN cameras
• Color: Black
• Product Width: 190 mm
• Product Depth: 43 mm
• Product Height: 142 mm
• Type Voltage: VDC
• Operating Voltage Range: 10 - 30 VDC
• Max Consumption: 15 W
• Voltage: 12 V / 24 V
