MXN HD-TVI Monitor 10.1" 4 Channels 12/24V

MXN HD-TVI Monitor 10.1" 4 Channels 12/24V MXN10Q-TVI

The MXN HD-TVI Monitor is a versatile and high-performance display designed for optimal surveillance capabilities. With its advanced features and robust design, it is perfect for various monitoring scenarios.

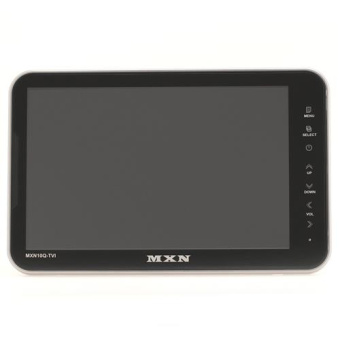

• Screen: 10.1-inch Wide IPS Digital TFT LCD panel with high resolution for sharp and clear images.
• Wide viewing angle of 178° horizontally and vertically for excellent visibility from any position.
• Camera Support: Supports shutter cameras and camera heating, ideal for various weather conditions.
• 4 camera inputs for connecting multiple cameras for extensive monitoring capabilities.
• 4 trigger inputs for automatic activation of camera images during specific actions such as turning on the indicator or reversing.
• Image and Compatibility: Compatible with FHD/HD at 60fps, 50fps, 30fps, 25fps, and CVBS for flexibility in resolution and video standards.
• Supports both NTSC and PAL standards for global compatibility.
• Various screen modes such as FULL, SPLIT, TRIPLE, QUAD for flexibility in viewing multiple camera feeds.
• Fish Eye mode function for a panoramic view with fisheye cameras.
• Automatic Features: Automatic detection for HD-TVI cameras and CVBS cameras for easy and quick installation.
• Automatic brightness adjustment adapting screen brightness to ambient light conditions for optimal visibility.
• Auto Scan feature automatically switches between connected cameras.
• Auto Power ON/OFF feature for automatic activation upon vehicle or system activation.
• Controls and Features: Capacitive touch buttons for intuitive and easy operation.
• Multi-lingual On Screen Display (OSD) in several languages: English, Swedish, Danish, Norwegian, Dutch, and Finnish.
• On Screen Menu Lock ON/OFF function to prevent accidental changes to settings.
• Built-in speaker for audio playback from AV sources or cameras with sound.
• Electronic distance marker (parking line) for parking assistance.

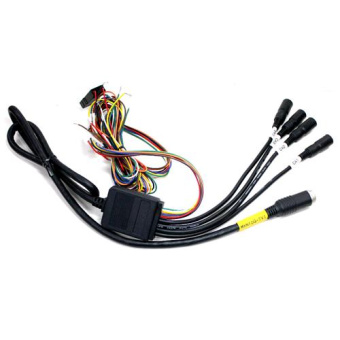

• Connections and Mounting: All connections made via one multi-cable (no external control box needed) for simplified installation and a tidy setup.

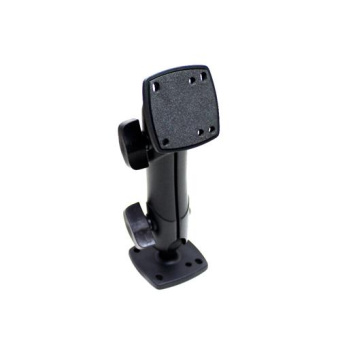

• Mounting brackets and VESA screw patterns (30x38mm, 40x40mm, 38x38mm) for flexible mounting options.
• Additional Features: Memory function for motorized shutter camera, convenient for storing settings.
• Speed switch function via an analog tachosignal for speed-based display adjustments.
• ECE R10.05 approval (EMC), ensuring compliance with electromagnetic compatibility standards.
• Input Voltage: Free input voltage from DC 10V to 32V, making the monitor suitable for various power supplies and applications.
