The MXN10-TVI is a versatile 10.1-inch HD-TVI monitor featuring a high-resolution IPS digital TFT LCD panel with a wide viewing angle. It supports multiple camera inputs and has trigger functions for automatic activation, making it ideal for rearview and surveillance applications. With compatibility for various video standards and an easy-to-use interface, it offers features like split-screen mode, automatic brightness adjustment, and a built-in speaker, all within a durable design suitable for diverse environments.
- Description
- Ask a Question
-

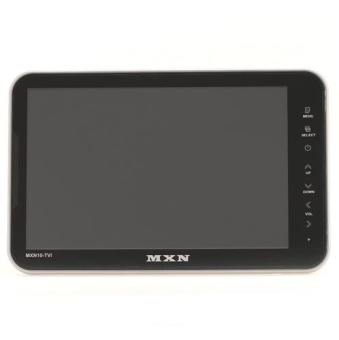

MXN HD-TVI Monitor 10.1" 3 Channels 12/24V
The MXN10-TVI is a versatile HD-TVI monitor designed for a variety of applications, providing high-quality visuals and multiple features for enhanced usability.
- Product Number: MXN10-TVI
- Screen: 10.1-inch Wide IPS Digital TFT LCD panel with high resolution for sharp and clear images.
- Viewing Angle: 178° horizontal and vertical for excellent visibility from almost any position.
- Camera Support: Supports shutter cameras and camera heating, ideal for rearview cameras and surveillance systems in various weather conditions.
- Camera Inputs: 3 camera inputs for connecting multiple cameras, enabling extensive monitoring capabilities.
- Trigger Inputs: 3 trigger inputs for automatic activation of camera images during specific actions, such as reversing or turn signals.
- Image Compatibility: Compatible with FHD/HD at 60fps, 50fps, 30fps, 25fps, and CVBS, providing flexibility for different image resolutions and video standards.
- Standards Supported: Supports NTSC/PAL standards for global compatibility.
- Split-Screen Mode: Simultaneously displays multiple camera images.
- Fish Eye Mode: Provides panoramic views from cameras with a fisheye lens.
- Controls and Features: Capacitive touch buttons for easy operation.
- Multi-Lingual OSD: On-Screen Display available in multiple languages: English, Swedish, Danish, Norwegian, Dutch, and Finnish.
- Automatic Brightness Adjustment: Adjusts screen brightness according to ambient light conditions for optimal visibility.
- Auto Scan Function: Automatically switches between connected cameras.
- Auto Power ON/OFF: Automatically turns on when the vehicle or other systems are activated.
- Additional Features: Electronic distance marker for parking assistance.
- Menu Lock Function: Prevents unwanted changes to settings.
- Built-in Speaker: For audio from connected AV sources.
- Memory Function: For motorized shutter camera settings.
- Speed Switch Function: Adjusts display based on speed via analog tachosignal.

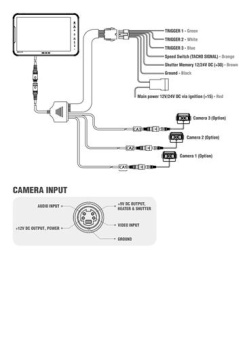

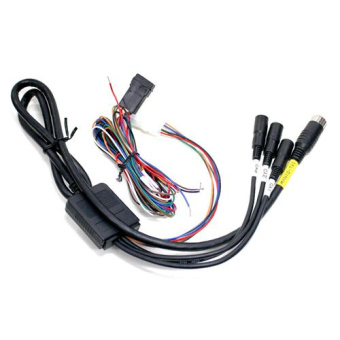

- Connections and Mounting: All connections made via a single multicable for simple installation.

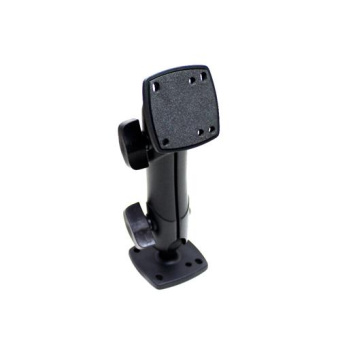

- Mounting Options: Bracket rails and VESA screw patterns (30x38mm, 40x40mm, 38x38mm) for flexible mounting.
- Input Voltage: DC 10V to 32V, suitable for diverse vehicles and environments.
- Brightness: 350 cd/m²
- Operating Temperature: -20° to +70°C
- Diagonal Display Size: 10.1 inches
- Resolution: 1080 x 800
- Protection Class: IP20
- Brand: MXN
- Color: Black
- Power Supply: VDC
- Max Consumption: 12W
-
