Isotherm B172YNAAA14111AA - BI-172 Build-In Top/Side Opening Refrigerator/Freezer

SKU: BB B172YNAAA14111AA

$ 4.965,45

1-2 weeks delivery time

- +

Add to cart

The Isotherm BI-172 (B172YNAAA14111AA) is a modular built-in refrigerator/freezer that can function either as a 130-liter fridge with a 38-liter freezer or as a full 172-liter refrigerator. Featuring top and side openings, air-cooled technology, and a remote-mounted Secop BD50F compressor, it is available in DC-only or AC/DC versions. Compact yet versatile, it is designed for yachts, boats, and RVs requiring large-capacity, flexible cooling solutions.

Description
Ask a Question

Isotherm B172YNAAA14111AA – BI-172 Built-In Refrigerator/Freezer

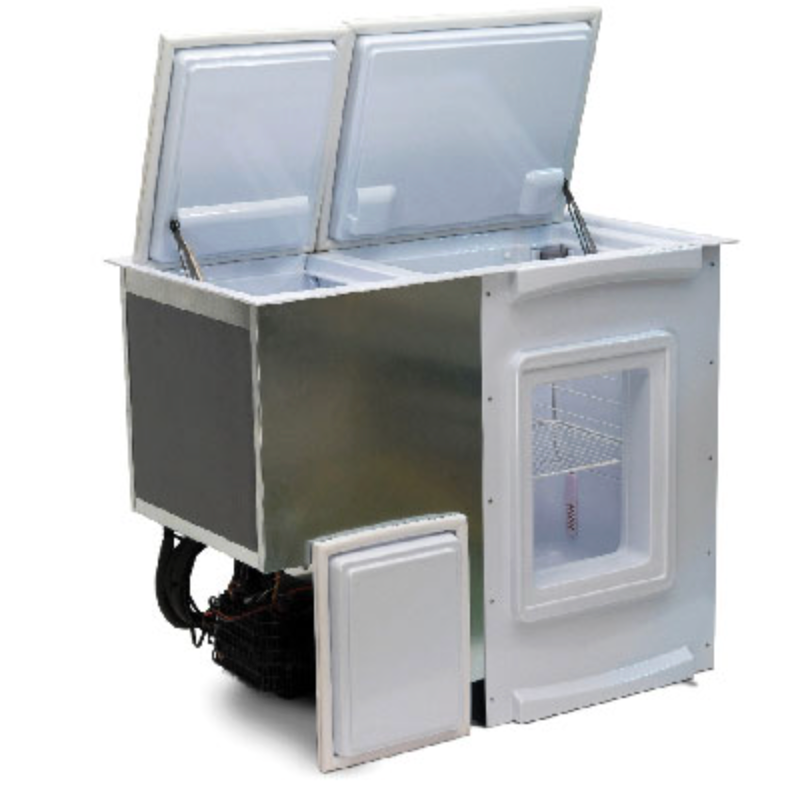

The Isotherm BI-172 is a highly versatile built-in refrigerator/freezer solution designed for marine and RV applications. With a modular concept, it can function as a 130-liter fridge plus 38-liter freezer or as a full 172-liter refrigerator, depending on your needs. Its combination of top-loading fridge/freezer compartments and optional front-opening fridge access provides flexibility in installation and use. Built with a remote-mounted Secop BD50F compressor, the BI-172 ensures reliable cooling performance in demanding environments.

Key Features

Dual Function: Operates as 130L fridge + 38L freezer or 172L full fridge.

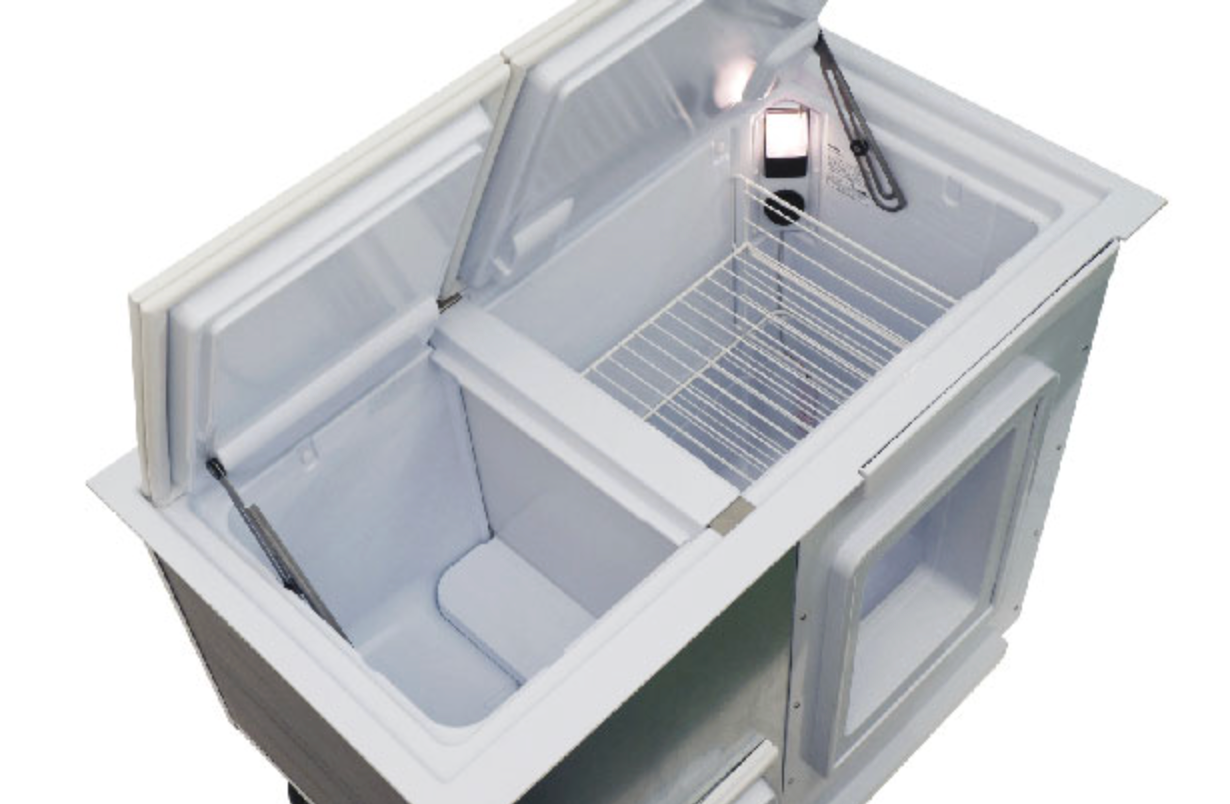

Flexible Openings: Top-loading for fridge/freezer compartments, optional front-opening for fridge.
Compressor: Secop BD50F, remote-mounted for flexible installation.
Cooling Technology: Air-cooled (water-cooled option available).
Power Options: Available in 12/24V DC only or AC/DC versions.
Modular Design: User decides functionality based on requirements.
Durable Build: Stainless steel outer flange optional.

Specifications

Part Number	B172YNAAA14111AA
Total Volume	172 L (130L fridge + 38L freezer or full 172L fridge)
Compressor	Secop BD50F
Power Supply	12/24V DC (optional AC/DC version)
Cooling Type	Air-cooled (water-cooled option available)
Dimensions (HxWxD)	840 x 1015 x 560 mm (33 x 40 x 22 in)
Weight	45 kg (99 lbs)
Power Consumption	375 W/24h*

*Power consumption measured at 12V with +5°C in cooling compartment, +25°C ambient temperature, according to ISO 15502:2005 and EN 153:2006.

Applications

The BI-172 is ideal for yachts, boats, and RVs requiring large, modular refrigeration with the flexibility to switch between fridge and freezer operation. Its robust build and versatile installation options make it a premium solution for demanding marine environments.
