SKU:
TN 00380071
€ 284,08
1-2 weeks delivery time
-
+
The Hertz HMP 4D is a rugged, IP64-rated 4-channel marine amplifier delivering 600 watts with flexible crossover options, electromagnetic interference rejection, and a compact design suited for powersports and marine use.
- Description
- Ask a Question
-

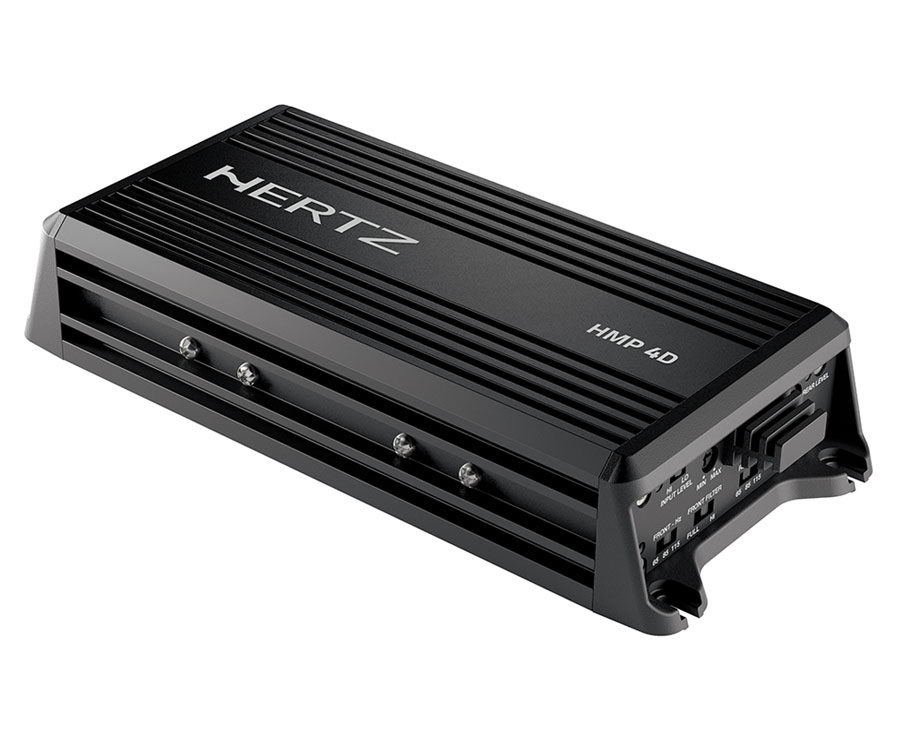

Hertz HMP 4D - Marine D-Class 4-Channel Amplifier 600 Watt
The Hertz HMP 4D amplifier is designed with a compact, durable cast-aluminium chassis rated IP64, making it resistant to nature’s elements. This amplifier is perfect for UTV, ATV, and motorcycle installations due to its excellent power-to-size ratio and user-friendly setup with an integrated crossover filter.

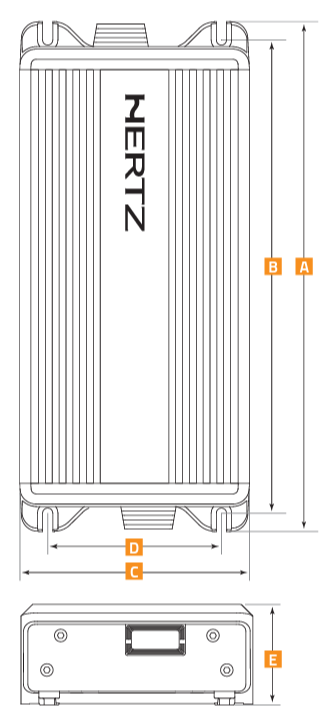

- Dimensions (mm/in): 223 / 8.78 (A), 207 / 8.15 (B), 100.5 / 3.96 (C), 76 / 2.99 (D), 43.6 / 1.72 (E)
- Power Supply Voltage: 11 to 15 VDC with 1 x 15 A fuse
- Idling Current: 1.2 A (power ON), 0.04 mA (power OFF)
- Maximum Consumption: 15 A at 2 Ω, 14.4 VDC (Max Musical Power)
- Remote Input Voltage: 4 to 15 VDC at 1 mA
- Automatic Remote Turn-On/Off (ART)
- Amplifier Channels: 4 - 2
- Total Harmonic Distortion (THD): 0.2% at 100 Hz @ 4 Ω
- Bandwidth: 10 to 30 kHz
- Signal to Noise Ratio: 95 dB (A weighted at 1 V)
- Damping Factor: 45 at 100 Hz @ 4 Ω
- Pre-In Sensitivity: LO: 0.2 to 5 V, HI: 0.8 to 20 V
- Minimum Load Impedance: 2 Ω (4 channels), 4 Ω (2 channels)
- Weight: 1.35 kg / 2.97 lb
- Adjustable Crossovers with bypassable system for flexible setup
- Balanced inputs provide strong rejection of electromagnetic interference for clear sound
-
