SKU:
TN 00360989
€ 217,10
1-2 weeks delivery time
-
+
The Fusion AP-DA214 is a 2-channel Apollo zone amplifier delivering 140 Watts peak power, designed for marine use with advanced protection features and easy tuning for superior sound quality.
- Description
- Ask a Question
-

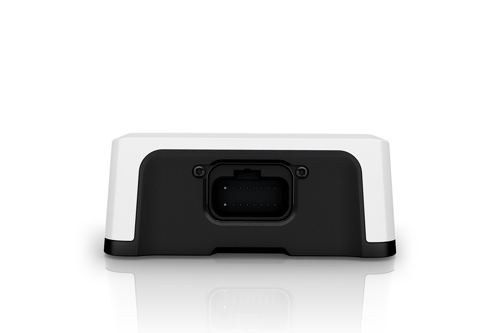

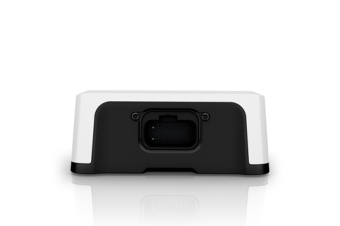

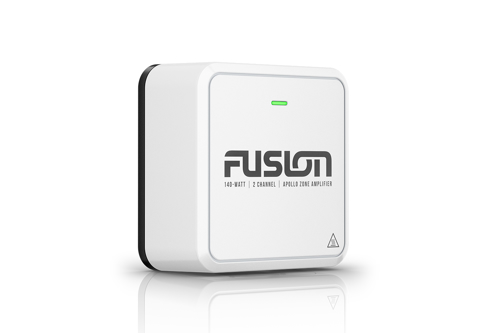

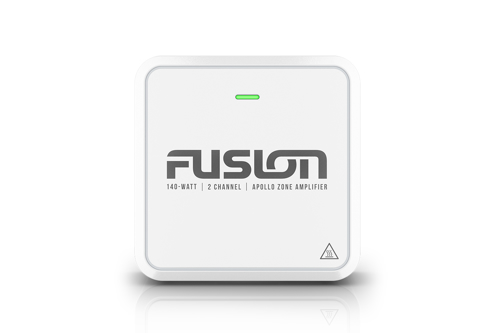

Fusion AP-DA214 - Apollo 2-Channel Zone Amplifier 140 Watt
The Apollo Zone amplifier delivers powerful sound with reduced battery consumption, suitable for both 12 and 24 Volt systems. Featuring Easy Tune technology, it automatically optimizes audio settings for superior sound quality without manual effort. Its durable design includes a coated circuit board for extra marine protection and multiple safety features.
- Order number: 00360989
- Supplier code: 010-02569-00
- Barcode: 753759269753
- Model: AP-DA214
- Peak Power: 140 Watt
- Voltage range: 10.8 to 32 Volts
- Dimensions (HxWxD): 100 x 100 x 48 mm
- RMS Power at 4 Ohms: 2 x 20 Watt
- RMS Power at 2 Ohms: 2 x 30 Watt
- Fuses: 16 A
- Waterproof rating: IPx7
- Max power consumption: 10 A
- Operating temperature: 0 - 50 °C
- Features:
- LED indicators for electrical issues like current, short circuits, and temperature
- Fire protection design to prevent overheating damage
- Coated PCB for marine element resistance
- 2 Ohm stable for flexible speaker setups
- Fusion True-Marine™ design tested against salt, fog, temperature, vibration, and UV
- Caution: Use only with Fusion speakers and DSP-capable stereo units RA770, RA670, WB670, RA210. Not compatible with RA60, RA70/RA70N, BB100, or Panel Stereo.
- Included in delivery: mounting bracket with button head screws, wiring harness, screw caps, mounting template, installation instructions
-
