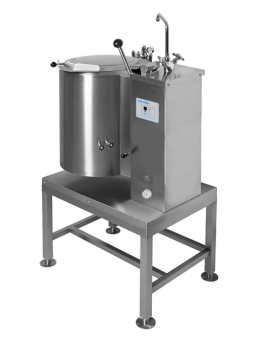

Baratta PRTIN-40B Marine Indirect Electronic Boiling Pan Manual Tilting IP54

Article BARATTA-PRTIN-40B

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The Baratta PRTIN-40B Marine Indirect Electronic Boiling Pan is specifically designed for marine environments with its heavy-duty construction and IP54 protection rating. It features indirect electric heating with a water jacket, a depression valve, and a safety thermostat with a buzzer for reliable operation. Constructed from durable AISI 304/316 stainless steel, it has a large, thick rayed bottom for excellent thermal efficiency. The pan includes a protruding handle for secure grip, manual tilting for easy use, and electronic controls with a microprocessor offering seven adjustable power levels. Additionally, it has a jacket safety valve with a manometer and adjustable flanged feet for stability. With a capacity of 40 liters, it supports a wide range of food preparation needs and is straightforward to maintain. For additional details, refer to Overleaf 03-108010-01.

Description
Ask a Question

Baratta PRTIN-40B Marine Indirect Electronic Boiling Pan Manual Tilting IP54

Features:
- Designed for Exclusive Marine Use
- Heavy Duty Construction
- Protection Degree IP54
- Indirect Electric Heating with Water Jacket
- Equipped with Depression Valve
- Safety Thermostat with Buzzer
- AISI 304 Stainless Steel Construction
- Stainless Steel AISI 304/316 Tank with Large Thick Rayed Bottom. Very High Thermal Efficiency
- Protruding Handle Affording a Sure Grip
- Manual Tilting
- Maximum Reliable and Safe Operation
- Extremely Easy Use and Maintenance
- Electronic Controls with Microprocessor
- 7 Levels Adjustable Power
- Jacket Safety Valve with Manometer
- The Indirect Cooking Allows Cooking a Wide Range of Food
- Adjustable Flanged Feet
- PRTIN-B Series Has Capacity from 40 to 50 Liters

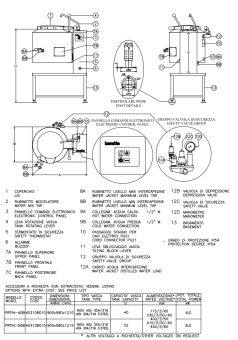

For more information and capacity, see Overleaf 03-108010-01

Technical Specifications
- Model: PRTIN-40B
- Code: 403108010
- Dimensions (mm): 900 x 580 x 1210
- Tank Type: AISI 304/316 Stainless Steel
- Tank Capacity (Lt): 40
- Rated Voltage: 115/3/60, 230/3/50-60, 400/3/50, 415/3/50-60, 440/3/60
- Total Power (kW): 6.0
