Baratta PIARN-110EE Marine Indirect Electric Boiling Pan Electric Tilting

Article BARATTA-PIARN-110EE

1-2 weeks delivery time
Price incl. 19% VAT

ASK FOR QUOTE

Our managers will contact you and clarify the terms of the order

The Baratta PIARN-110EE Marine Indirect Electric Boiling Pan is specifically designed for exclusive marine use, featuring heavy-duty construction for durability in harsh environments. It utilizes indirect electric heating with a water jacket for efficient performance, complemented by electronic phase control with a safety lamp and a water jacket safety valve with a manometer. The unit boasts microprocessor-based electronic controls with seven adjustable power levels and a safety thermostat. Made from high-quality AISI 304/316 stainless steel, it includes a large, thick, ray-bottomed tank for exceptional thermal efficiency. The electric tilting mechanism, powered by a motor reducer, ensures ease of use, while the adjustable flanged feet provide stability. With a capacity of 110 liters, this model is part of the PIARN-EE series, which offers capacities ranging from 55 to 500 liters. For further information and capacity options, please refer to the reverse side (03-105100-02).

Description
Ask a Question

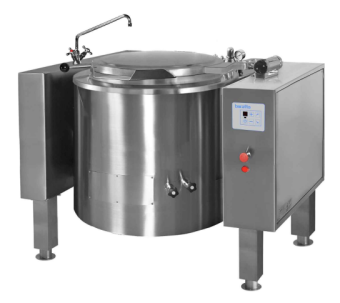

Baratta PIARN-110EE Marine Indirect Electric Boiling Pan

Designed for Exclusive Marine Use
- Heavy Duty Construction: Extremely robust build for marine environments.
- Indirect Electric Heating: Features a water jacket for efficient heating.
- Electronic Phases Control: Includes a safety lamp for phase control.
- Water Jacket Safety Valve: Equipped with a manometer for safety.
- Electronic Controls: Microprocessor-based controls for precision.
- Adjustable Power: 7 levels of adjustable power for versatile cooking.
- Safety Thermostat: Ensures safe operation with automatic temperature control.
- AISI 304 Stainless Steel Construction: High-quality, durable material for long-lasting use.
- Stainless Steel Tank: AISI 304/316 tank with a large, thick, ray-bottom for high thermal efficiency.
- Indirect Cooking: Allows for a wide range of food types to be cooked.
- Electric Tilting: Powered by a motor reducer for easy tilting.
- Maximum Production: Designed for high production capacities.
- Easy Use and Maintenance: Simple to operate and maintain.
- High-Quality Materials: Made from top-grade materials for reliability.
- Adjustable Flanged Feet: Provides stability and can be adjusted for uneven surfaces.
- PIARN-EE Series Capacity: Available in capacities ranging from 55 to 500 liters.

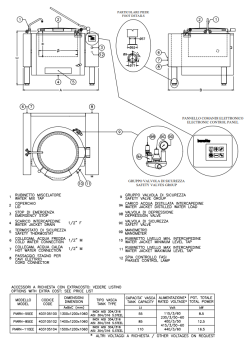

- For More Information: Refer to the reverse side for additional details and capacity options (03-105100-02).
Technical Specifications:
- Model: PIARN-110EE
- Code: 403105104
- Dimensions (AxBxC mm): 1500 x 1200 x 1060
- Tank Type: AISI 304/316 Stainless Steel
- Tank Capacity (Lt): 110
- Rated Voltage (Volt): 380
- Total Power (kW): 16.5
