Whisper Power 60212131 - DC Beltpower 12 V / 130 A Alternator + ACR

Whisper Power 60212131 - DC Beltpower 12 V / 130 A Alternator + ACR

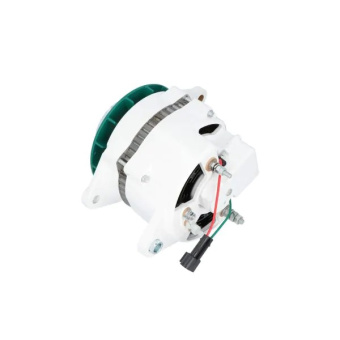

The Whisper Power 60212131 is a high-performance belt-driven generator designed to function as a mounted generator for the main engine of cars and boats. This versatile system provides a reliable 12V output with a maximum current capacity of 130A, making it suitable for various applications requiring efficient power generation.

Product Overview

The Whisper Power BeltPower system comprises several essential components:

• A super-powerful generator that delivers maximum current even at low engine speeds, ensuring optimal performance.
• An ASR multi-stage battery charge voltage regulator that enhances charging efficiency and performance.
• A comprehensive wire bundle designed for seamless connections between the generator and the ASR regulator.
• A storage battery temperature control sensor that protects against overheating during the charging process.

Please note that mounting brackets are not included with the delivery. These can be custom-fabricated on-site, as there are numerous engine modifications and configurations that cannot be anticipated.

Optional Features

For additional flexibility, optional battery insulators can be utilized to charge two or three separate batteries simultaneously. It is highly recommended to integrate the BeltPower DC generator into your existing engine configuration while retaining your current DC generators, allowing for enhanced power output and reliability.

Charging Efficiency

The Whisper Power DC generators are engineered to provide fast and complete battery charging. Even at low engine speeds, high currents are available, combined with a three-stage ASR charging process, which allows for rapid and thorough charging of various battery types, including AGM, gel, and conventional liquid batteries.

The ASR three-stage regulator can also be purchased separately, offering compatibility with Bosch-type generators for added versatility.

Features

• High-performance 12 VDC alternator designed for reliable and efficient power output.
• Current output ranging from 75 to 150 A, ideal for diverse applications.
• Maintains a high charging current even at low RPM, ensuring effective battery charging.
• 3-stage ACR charging system provides rapid and complete battery charge.
• Automatic voltage monitoring and temperature readings through an integrated sensor.
• Programmable for compatibility with gel batteries, AGM technology batteries, or lithium batteries.
• Complete Plug-and-Play system simplifies installation and setup.
• Shackles for alternator installation are not included, offering flexibility for customization.

Advantages

• Can charge batteries in approximately one hour of engine operation, maximizing efficiency.
• Full charge achieved through the ASR voltage regulator, ensuring reliable performance.
• Special winding design guarantees significant charging current availability at low engine speeds.
• Compatible with existing 12 or 24 V DC alternators, eliminating the need for major modifications.
• Supports inverters with a current capacity of up to 3 kW (recommended) when used in conjunction with the DC BeltPower system.
• A separate Whisper WBI high-precision voltage drop charging insulator can be installed to charge up to three self-contained batteries.
• Usable with any engine configuration, enhancing its adaptability for various applications.
