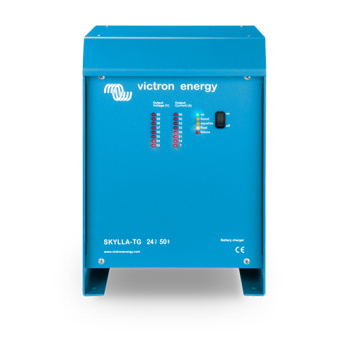

Victron Energy STG024050300 - Skylla-TG 24/50 3-Phase (1+1) Battery Charger

Victron Energy STG024050300 - Skylla-TG 24/50 3-Phase (1+1) Battery Charger

Key Features:

• Output current rating of 50 Amps, designed for efficient battery charging.
• Operating temperature range of -40 to +50°C (-40 to +122°F) for reliable performance in extreme conditions.
• Maximum humidity of 95%, ensuring functionality in high-moisture environments.
• Output system voltage of 24V, compatible with various battery types.
• Charge voltage absorption of 28.5V and float voltage of 26.5V for optimal charging cycles.
• Ideal for battery capacities ranging from 400 to 800 Ah, suitable for large battery banks.
• Dimensions: 365 x 250 x 257 mm (L x W x H) and net weight of 13 kg for easy installation.
• Protection category IP21, providing safe operation in various environments.
• Input voltage range of 185-264 V AC and 180-400 V DC for versatile power connections.
• Can be used as a power supply, adding flexibility to your power solutions.

Specifications:

• Charge current: 50 A, ensuring fast and efficient charging.
• Battery connection via M8 bolts for secure attachment.
• Charge voltage float (wet at 25 degrees): 26.5V for prolonged battery life.
• Charge current suitable for batteries with a capacity of 400-800 Ah.
• Maximum input current: 8.5A at 230V for the 3-phase model.
• Input frequency: 45 - 65 Hz for compatibility with various power sources.
• Efficiency: 85% at 230Vac and 30Vdc for 50A output, ensuring minimal energy loss.
• Output voltage ripple: <100mVtt under a 50A resistive load for stable performance.
• Short circuit current: 55A, providing protection against overloads.
• Maximum output power: 1500W, accommodating high power demands.
• Operating noise level: <45dB(A), ensuring quiet operation.
• Cooling: Forced air cooling for efficient heat dissipation.
• Leakage current when the charger is off: ≤ 3.2 mA, ensuring low standby power usage.

Compatibility and Application:

• Perfect for use in marine, automotive, and industrial applications, providing reliable power to various battery types.
• Designed for charging large battery systems, making it ideal for off-grid solutions and backup power setups.

Benefits:

• High efficiency with minimal power loss ensures cost-effective operation.
• Robust design withstands harsh environments, enhancing reliability and longevity.
• Advanced protection features safeguard against overheating and short circuits, ensuring safety during operation.
• Continuous connection capability helps maintain battery health, especially during long storage periods.
• Easy installation and setup make it accessible for both professionals and DIY enthusiasts.
