Victron 280W-20V BlueSolar Polycrystalline Panel 1650×992×35mm Series 4a (min 4pcs) - SPP042802000

SKU: CN VISPP042802000

€ 200,84

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

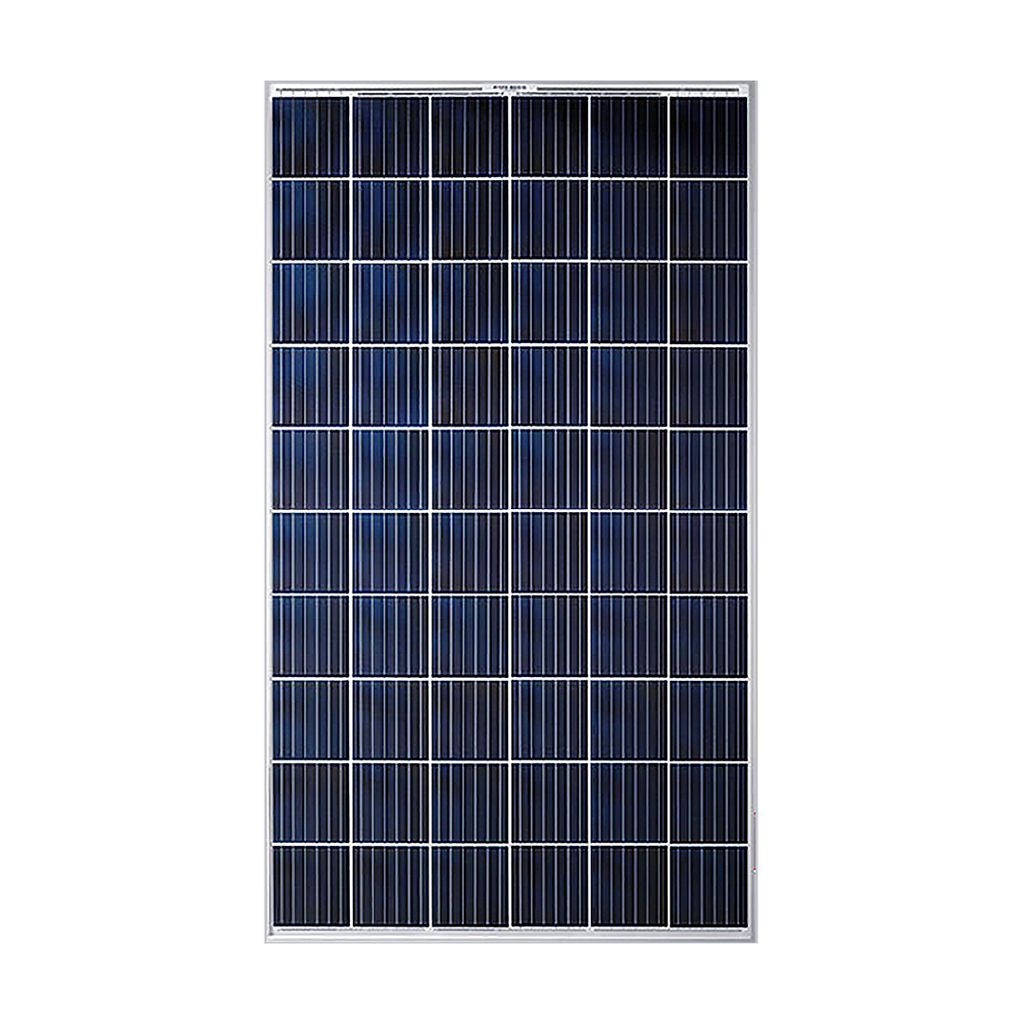

The Victron SPP042802000 is a 280W polycrystalline solar panel designed for 20V systems in off-grid and hybrid energy installations. With a 31.9V output at 8.77A (STC), it offers high energy yield and mechanical durability. The 1650 × 992 × 35 mm panel features a sealed junction box, anodized aluminium frame, and MC4 connectors. Minimum order: 4 panels.

Description
Ask a Question

Victron Energy SPP042802000 BlueSolar 280W 20V Polycrystalline Panel (1650×992×35 mm, Series 4a)

The Victron SPP042802000 is a high-efficiency 280W BlueSolar polycrystalline module engineered for 20V systems. Designed for demanding off-grid, commercial, or hybrid solar arrays, it delivers strong energy output with durable construction. Its advanced encapsulation and sealed MC4-ready output make it ideal for professional installations in remote or harsh environments.

Electrical Specifications (STC):
- Nominal Power (P_MPP): 280W
- Voltage at Max Power (V_MPP): 31.9 V
- Current at Max Power (I_MPP): 8.77 A
- Open Circuit Voltage (Voc): 39.13 V
- Short Circuit Current (Isc): 9.23 A
Mechanical Specifications:
- Dimensions: 1650 × 992 × 35 mm
- Weight: 18.4 kg
- Frame: Anodized aluminium
- Glass: High-transmission tempered
- Junction Box: PV-JB002 (sealed)
- Cables & Connectors: 900 mm with MC4 (PV-ST01)
Environmental Ratings:
- Operating Temperature: –40°C to +85°C
- Max Surface Load: 200 kg/m²
- Hail Resistance: 23 m/s, 7.53 g
Temperature Coefficients:
- P_MPP: –0.40%/°C
- Voc: –0.30%/°C
- Isc: +0.06%/°C
Warranty:
- Product Warranty: 5 years
- Performance Warranty: 10 years ≥ 90%, 25 years ≥ 80% rated output
Additional Notes:
- Cell Type: Polycrystalline silicon
- Cells in Series: 60
- Max System Voltage: 1000V
- Minimum Order Quantity: 4 panels
The Victron SPP042802000 panel provides high output and dependable operation for medium-to-large-scale solar energy systems. Its tough design and certified components ensure performance even under challenging environmental conditions.
Documents

Victron Energy BlueSolar Polycrystalline Panels Size: 155,6 Kb
