Victron 185W-12V BlueSolar Monocrystalline Panel 1485×668×30mm Series 4a (min 4pcs) - SPM041851200

SKU: CN VISPM041851200

€ 142,49

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Victron SPM041851200 is a high-output 185W monocrystalline solar panel for 12V systems. With a footprint of 1485 × 668 × 30 mm and a weight of 11 kg, it delivers 19.68V at 9.41A under STC. Rugged, efficient, and compact, it is ideal for battery charging in off-grid, mobile, marine, or industrial environments. Minimum order: 4 panels.

Description
Ask a Question

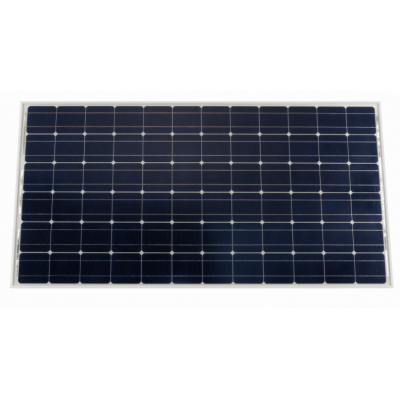

Victron Energy SPM041851200 BlueSolar 185W 12V Monocrystalline Panel (1485×668×30 mm, Series 4a)

The Victron SPM041851200 is the most powerful panel in the BlueSolar Series 4a, delivering 185W of nominal power for 12V battery systems. Built with high-efficiency monocrystalline cells, it is perfect for off-grid solar setups that demand compact, high-output performance — including mobile power units, field monitoring systems, and marine installations.

Electrical Specifications (STC):
- Nominal Power (P_MPP): 185W
- Voltage at Max Power (V_MPP): 19.68 V
- Current at Max Power (I_MPP): 9.41 A
- Open Circuit Voltage (Voc): 24.11 V
- Short Circuit Current (Isc): 9.91 A
Mechanical Specifications:
- Dimensions: 1485 × 668 × 30 mm
- Weight: 11.0 kg
- Frame: Anodized aluminium
- Glass: Tempered, high-transmission
- Junction Box: PV-LH0808 (sealed, rear-mounted)
Environmental Ratings:
- Operating Temperature: –40°C to +85°C
- Max Surface Load: 200 kg/m²
- Hail Resistance: 23 m/s, 7.53 g
Temperature Coefficients:
- P_MPP: –0.45%/°C
- Voc: –0.35%/°C
- Isc: +0.04%/°C
Warranty:
- Product Warranty: 5 years
- Performance Warranty: 10 years ≥ 90%, 25 years ≥ 80% rated output
Additional Notes:
- Cell Type: Monocrystalline
- Number of Cells: 36 in series
- Max System Voltage: 1000V
- Minimum Order Quantity: 4 panels
The Victron SPM041851200 delivers exceptional energy output and mechanical resilience, making it an excellent choice for professionals and integrators working in the most demanding 12V solar applications.
Documents

Victron Energy BlueSolar Monocrystalline Panels Size: 155,9 Kb
