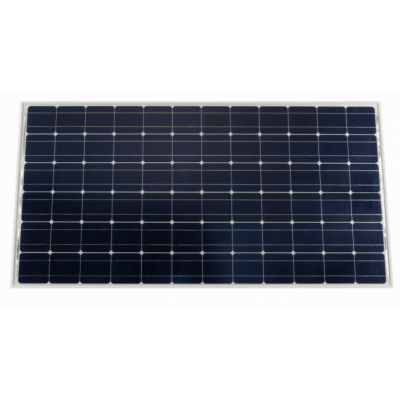

Victron 150W-12V BlueSolar Monocrystalline Panel 1485×668×30mm Series 4a (min 4pcs) - SPM041501200

SKU: CN VISPM041501200

€ 135,76

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Victron SPM041501200 is a 150W monocrystalline solar panel optimized for 12V battery systems. It delivers 18.2V at 8.25A (STC), weighs 11 kg, and measures 1485 × 668 × 30 mm. Part of the BlueSolar Series 4a, it offers long-lasting performance, low-light sensitivity, and robust construction for off-grid, mobile, and field applications. Minimum order: 4 panels.

Description
Ask a Question

Victron Energy SPM041501200 BlueSolar 150W 12V Monocrystalline Panel (1485×668×30 mm, Series 4a)

The Victron SPM041501200 is a high-efficiency 150W solar panel designed for 12V off-grid applications including remote cabins, RVs, boats, and backup systems. With monocrystalline silicon cells, a sealed junction box, and a rigid anodized aluminium frame, it offers excellent low-light performance, durability, and compatibility with a wide range of charge controllers.

Electrical Specifications (STC):
- Nominal Power (P_MPP): 150W
- Voltage at Max Power (V_MPP): 18.2 V
- Current at Max Power (I_MPP): 8.25 A
- Open Circuit Voltage (Voc): 22.3 V
- Short Circuit Current (Isc): 8.69 A
Mechanical Specifications:
- Dimensions: 1485 × 668 × 30 mm
- Weight: 11.0 kg
- Frame: Anodized aluminium
- Glass: Tempered, high-transmission
- Junction Box: PV-LH0808 (sealed)
Environmental Performance:
- Operating Temperature: –40°C to +85°C
- Max Surface Load: 200 kg/m²
- Hail Resistance: 23 m/s, 7.53 g hail ball
Temperature Coefficients:
- Power (P_MPP): –0.45%/°C
- Voltage (Voc): –0.35%/°C
- Current (Isc): +0.04%/°C
Warranty:
- Product Warranty: 5 years
- Performance Warranty: 10 years ≥ 90%, 25 years ≥ 80% power output
Additional Information:
- Cell Type: Monocrystalline
- Cells in Series: 36
- Max System Voltage: 1000V
- Minimum Order: 4 panels
The Victron SPM041501200 offers a durable and efficient solar energy solution for systems where space, weight, and performance are critical. Ideal for autonomous power applications requiring long-term reliability in all weather conditions.
Documents

Victron Energy BlueSolar Monocrystalline Panels Size: 155,9 Kb
