Victron 130W-12V BlueSolar Monocrystalline Panel 1200×668×30mm Series 4a (min 4pcs) - SPM041301200

SKU: CN VISPM041301200

€ 122,30

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

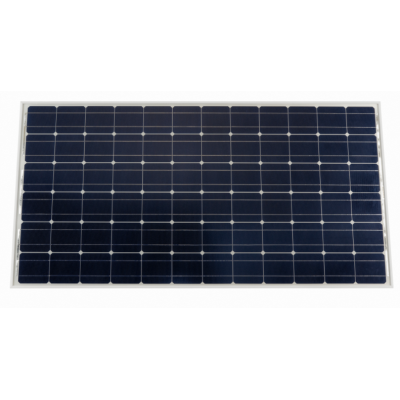

The Victron SPM041301200 is a 130W monocrystalline solar panel optimized for 12V systems. It measures 1200 × 668 × 30 mm and weighs 9.1 kg, delivering 18.64V at 6.98A under STC. Designed for durable off-grid installations, it features a sealed junction box, anodized aluminium frame, and excellent performance under low light. Minimum order: 4 panels.

Description
Ask a Question

Victron Energy SPM041301200 BlueSolar 130W 12V Monocrystalline Panel (1200×668×30 mm, Series 4a)

The Victron SPM041301200 is a robust 130W BlueSolar monocrystalline panel designed for 12V battery charging in off-grid and mobile solar power systems. With high-efficiency silicon cells and sturdy construction, it ensures reliable performance in a wide range of climates and conditions. This model is ideal for caravans, boats, cabins, and industrial field equipment requiring compact high-output solar modules.

Electrical Specifications (STC):
- Nominal Power (P_MPP): 130W
- Voltage at Max Power (V_MPP): 18.64 V
- Current at Max Power (I_MPP): 6.98 A
- Open Circuit Voltage (Voc): 22.83 V
- Short Circuit Current (Isc): 7.35 A
Mechanical Specifications:
- Dimensions: 1200 × 668 × 30 mm
- Weight: 9.1 kg
- Frame: Anodized aluminium
- Glass: Tempered, high-transmission
- Junction Box: PV-LH0808-1 (sealed, rear-mounted)
Environmental Ratings:
- Operating Temperature: –40°C to +85°C
- Max Surface Load: 200 kg/m²
- Hail Resistance: 23 m/s, 7.53 g impact
Temperature Coefficients:
- Power (P_MPP): –0.45%/°C
- Voltage (Voc): –0.35%/°C
- Current (Isc): +0.04%/°C
Warranty:
- Product Warranty: 5 years
- Power Output Warranty: 10 years ≥ 90%, 25 years ≥ 80%
Additional Information:
- Cell Type: Monocrystalline silicon
- Number of Cells: 36 in series
- Max System Voltage: 1000V
- Minimum Order Quantity: 4 panels
The Victron SPM041301200 is a compact high-output solar panel offering excellent build quality, dependable energy harvest in low-light conditions, and long-term reliability for both fixed and mobile installations.
Documents

Victron Energy BlueSolar Monocrystalline Panels Size: 155,9 Kb
