Victron SmartShunt 300A IP65 - SHU065130050

SKU: CN VISHU065130050

€ 85,27

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Victron SmartShunt 300A IP65 (SHU065130050) is a waterproof, display-free battery monitor designed for harsh environments. Rated for 6.5–70V systems, it communicates via Bluetooth or VE.Direct and offers real-time monitoring of voltage, current, SOC, time-to-go, and historical data. With an auxiliary input for a second battery, midpoint, or temperature, it’s ideal for compact and marine-grade battery installations.

Description
Ask a Question

Victron Energy SmartShunt 300A IP65 (SHU065130050) is a waterproof all-in-one battery monitoring solution without a built-in display. It uses Bluetooth for wireless monitoring via the VictronConnect app or can be integrated into a GX system via VE.Direct. The shunt is permanently attached to the monitor and enclosed in an IP65-rated housing, making it ideal for marine, outdoor, and vehicle environments.

Technical Specifications:

Model	SHU065130050 (SmartShunt 300A IP65)
Voltage Range	6.5 – 70 VDC
Battery Capacity	1 – 9999 Ah
Continuous Current Rating	300A
Shunt Voltage	50 mV
Auxiliary Input	Yes – for second battery, midpoint, or temperature sensor
Bluetooth	Built-in
VE.Direct Port	Yes
Operating Temperature	-40 to +50°C
Current Draw	< 1 mA
Dimensions (H × W × D)	44 × 120 × 38 mm
Shunt Bolt Size	M8
Protection Rating	IP65 (dust-tight and water-resistant)

Measurement Accuracy & Resolution:

Voltage: ±0.01 V (±0.3%)
Current: ±0.01 A (±0.4%)
Amp-hours: ±0.1 Ah
State of charge: ±0.1%
Time to go: ±1 minute
Temperature (if sensor connected): ±1 °C (range -20 to +50°C)

Key Features:

Fully waterproof IP65-rated design, ideal for outdoor and marine use.
Wireless monitoring via built-in Bluetooth using the VictronConnect app.
VE.Direct port for integration with GX devices (Cerbo GX, Ekrano GX, etc.).
Aux input supports second battery voltage, midpoint, or temperature monitoring.
Compact and clean installation with minimal wiring.
Stores 46 days of trend data including voltage, SOC, current, and auxiliary input.

Included Accessories:

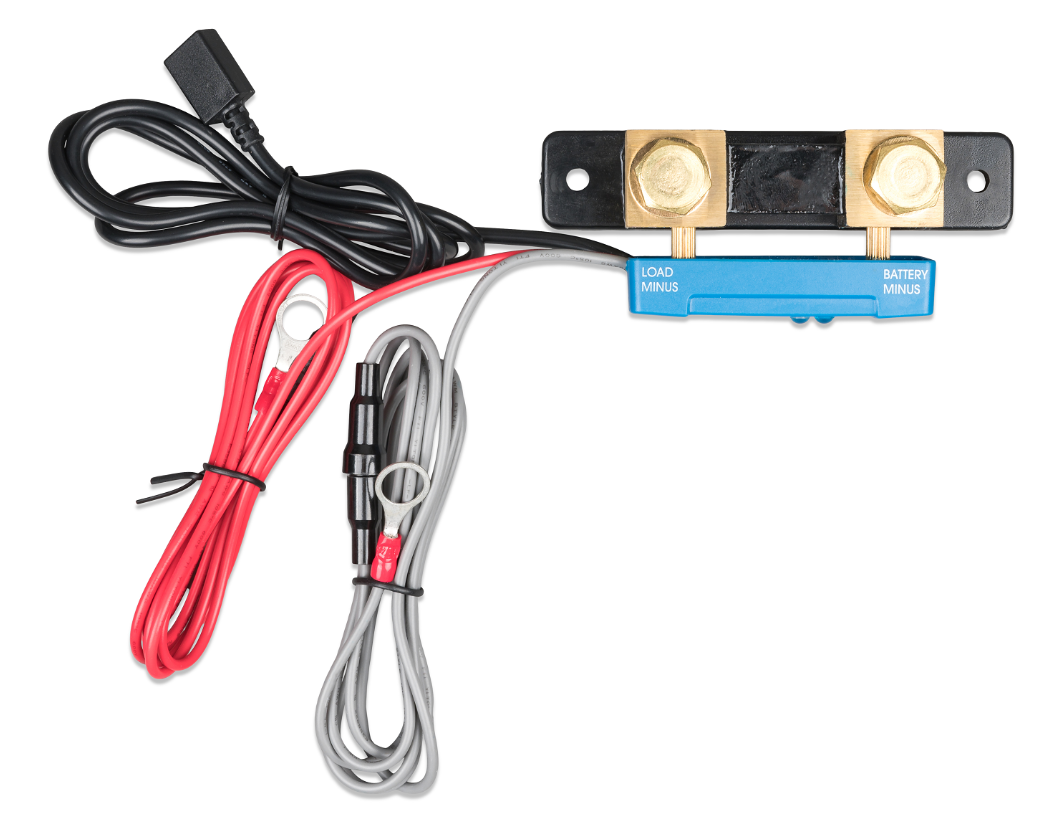

Two 1.5 m fused cables (for positive and auxiliary connections)
1.5 m VE.Direct cable with socket (VE.Direct cable to GX device not included)

Typical Applications:

Marine battery systems
Off-grid solar installations in outdoor environments
Vehicle battery banks exposed to dust or splashes

Note: This model does not include a relay or visual/audible alarms. For extended Bluetooth range in shielded environments (e.g., metal hulls), use the optional VE.Direct Bluetooth Dongle (ASS030536011) and disable internal Bluetooth.
