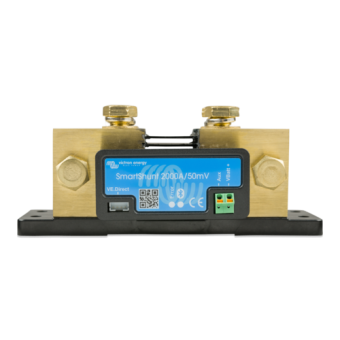

Victron SmartShunt 2000A - SHU050220050

SKU: CN VISHU050220050

€ 270,40

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Victron SmartShunt 2000A (SHU050220050) is a heavy-duty battery monitor with Bluetooth and VE.Direct, designed for high-current 6.5–70V DC systems. It enables real-time tracking of voltage, current, SOC, time-to-go, and historical data via the VictronConnect app or GX devices. It includes an auxiliary input for second battery voltage, midpoint monitoring, or temperature sensing—ideal for demanding installations requiring clean wiring and robust monitoring.

Description
Ask a Question

Victron Energy SmartShunt 2000A (SHU050220050) is a professional-grade battery monitor built for high-current battery systems. It eliminates the need for a front panel display by using Bluetooth to communicate directly with the VictronConnect app on your mobile device. For centralized monitoring, it can also be integrated into GX systems via a VE.Direct cable.

Capable of monitoring up to 2000A continuously, this SmartShunt offers precise real-time data on voltage, current, amp-hours consumed, state of charge, time remaining, and trend history. A multifunctional auxiliary input allows for temperature monitoring, midpoint voltage tracking, or measuring a second battery's voltage.

Technical Specifications:

Model	SHU050220050 (SmartShunt 2000A)
Voltage Range	6.5 – 70 VDC
Current Rating	2000A continuous
Shunt Voltage	50 mV
Battery Capacity	1 – 9999 Ah
Auxiliary Input	Yes – second battery, midpoint, or temperature
Communication	Bluetooth, VE.Direct
Current Draw	< 1 mA
Temperature Range	-40 to +50°C
Protection Rating	IP21
Dimensions (H × W × D)	68 × 168 × 100 mm
Shunt Connection Bolts	M10

Measurement Accuracy & Resolution:

Voltage: ±0.01 V (±0.3%)
Current: ±0.01 A (±0.4%)
Amp-hours: ±0.1 Ah
State of charge: ±0.1%
Time to go: ±1 minute
Temperature (if sensor connected): ±1°C (range: -20 to +50°C)

Key Features:

High-current battery monitor rated for 2000A continuous use.
Bluetooth-enabled for wireless configuration and monitoring via VictronConnect.
VE.Direct port for integration with GX devices (e.g., Cerbo GX, Ekrano GX).
Aux input supports second battery voltage, midpoint voltage, or battery temperature.
Ideal for large battery banks and installations with limited space for wiring.
Stores trend data for 46 days including voltage, current, SOC, and aux input.

Included Accessories:

Two cables with 1A inline fuses (for positive and auxiliary connections)

Typical Applications:

Large-scale off-grid and hybrid battery systems
Marine or vehicle battery banks requiring high-current monitoring
Telecom and industrial energy storage systems

Note: The SmartShunt has no visual display or programmable relay. For installations with heavy electrical shielding (e.g. steel boats), use a VE.Direct Bluetooth Dongle (ASS030536011) to extend wireless signal range and disable the built-in Bluetooth.
