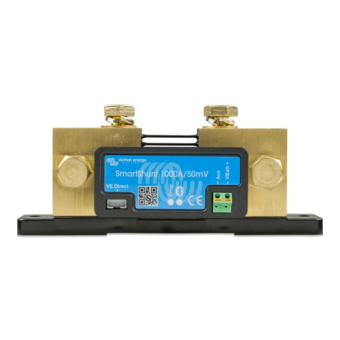

Victron SmartShunt 1000A - SHU050210050

SKU: CN VISHU050210050

€ 198,59

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Victron SmartShunt 1000A (SHU050210050) is a powerful display-free battery monitor with built-in Bluetooth and VE.Direct communication. Designed for DC systems from 6.5 to 70V, it offers precise monitoring of voltage, current, state of charge, time-to-go, and historical data. It includes an auxiliary input for a second battery, midpoint monitoring, or temperature sensing—ideal for high-capacity installations requiring simplified wiring.

Description
Ask a Question

Victron Energy SmartShunt 1000A (SHU050210050) is an advanced all-in-one battery monitor designed for high-current DC systems. It eliminates the need for a separate display by using Bluetooth to connect directly to the VictronConnect app on a smartphone or tablet. Alternatively, it can be linked to GX devices via a VE.Direct cable for centralized monitoring and control.

Technical Specifications:

Model	SHU050210050 (SmartShunt 1000A)
System Voltage Range	6.5 – 70 VDC
Battery Capacity Range	1 – 9999 Ah
Continuous Current Rating	1000A
Shunt Voltage	50mV
Auxiliary Input	Yes – for second battery voltage, midpoint, or temperature
Communication Interfaces	Bluetooth, VE.Direct
Current Draw	< 1 mA
Operating Temperature Range	-40 to +50°C
Dimensions (H × W × D)	68 × 168 × 75 mm
Shunt Terminal Bolts	M10
Protection Rating	IP21

Measurement Accuracy & Resolution:

Voltage: ±0.01 V (±0.3%)
Current: ±0.01 A (±0.4%)
Amp-hours: ±0.1 Ah
State of charge: ±0.1%
Time to go: ±1 minute
Temperature (with sensor): ±1°C (range -20 to +50°C)

Key Features:

High-capacity battery monitor rated for 1000A continuous current.
Built-in Bluetooth for wireless setup and real-time monitoring via VictronConnect app.
VE.Direct port for integration with Cerbo GX, Ekrano GX, and other GX devices.
Auxiliary input supports second battery voltage, midpoint deviation, or temperature sensing.
Minimalist design – no display required, ideal for tight or clean installations.
Stores 46 days of battery trends for voltage, current, SOC, and auxiliary input.

Included Accessories:

Two prewired cables with 1A fuses for main power and auxiliary input

Typical Applications:

High-capacity off-grid solar and hybrid battery systems
Marine or RV installations with tight wiring layouts
Industrial or telecom battery systems needing remote and detailed diagnostics

Note: The SmartShunt does not include a relay or alarm output. For systems requiring programmable outputs, consider the Victron BMV-712 Smart. For environments with limited Bluetooth range, a VE.Direct Bluetooth Dongle (ASS030536011) can be added externally.

Looking for a different Victron SmartShunt Monitors? Explore our full Victron Smart Shunt product range.
