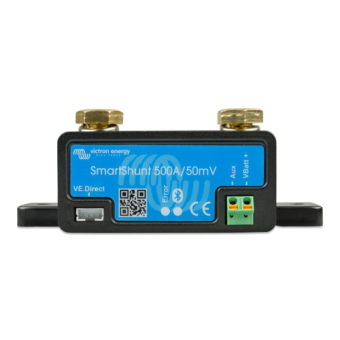

Victron Energy SHU050150050 - SmartShunt 500A/50mV

Article BB-SHU050150050

€ 125,66

1-2 weeks delivery time
Price incl. 19% VAT

- +

Add to cart

The Victron Energy SHU050150050 - SmartShunt 500A/50mV is a powerful, compact battery monitor designed to provide accurate real-time data on your battery’s state of charge, time remaining, and other essential parameters. Featuring Bluetooth connectivity, it allows users to conveniently access all battery information via the VictronConnect app on a smartphone or tablet, eliminating the need for a separate display. This shunt supports up to 500A with high measurement accuracy and includes additional inputs for monitoring a second battery, midpoint, or temperature with an optional sensor. Ideal for marine, automotive, and off-grid applications, it integrates seamlessly with GX devices for enhanced monitoring. Its efficient design consumes minimal power when idle, offering a reliable and precise solution for advanced battery management.

Description
Ask a Question

Victron Energy SHU050150050 - SmartShunt 500A/50mV

Key Features:
- Comprehensive battery monitor without a display, using Bluetooth connectivity for smartphone readouts
- Monitors key battery parameters, including state of charge, time remaining, historical data, and more
- Compatible with the VictronConnect app for easy monitoring and configuration via phone or tablet
- Optional connection to a GX device via VE.Direct for advanced monitoring setups
- Additional terminal for measuring the voltage of a second battery, midpoint, or temperature (with optional sensor)
Specifications:
- Supply voltage range: 6.5 - 70 VDC, suitable for various battery systems
- Current measurement range: Up to 500A with 50mV shunt for high-precision monitoring
- Resolution and accuracy:
  - Current: Resolution ± 0.1A, accuracy ± 0.4%
  - Voltage: Resolution ± 0.01V, accuracy ± 0.3%
  - Amp hours: Resolution ± 0.1 Ah
  - State of charge (0 – 100%): Resolution ± 0.1%
  - Time to go: Resolution ± 1 minute
  - Temperature (with optional sensor): ± 1°C/°F in a range of -20 to +50°C
- Battery capacity range: Configurable from 1 - 9999 Ah, adaptable to various battery banks
- Operating temperature range: -40 to +50°C (-40 to 120°F), ensuring reliable performance in extreme conditions
- Standby power consumption: Less than 1mA, minimizing battery drain during idle periods
- Additional measurements: Supports voltage reading of a second battery, midpoint monitoring, or temperature sensor integration
- VE.Direct communication port for seamless integration with GX devices and system monitoring
- Protection category: IP21, providing dust and limited moisture resistance
- Dimensions: 46 x 120 x 54 mm, compact size for space-saving installation
- Included cables: Two cables with 1A fuses for positive connection and secondary battery or midpoint monitoring
- Standards compliance: Safety EN 60335-1, Emission/Immunity EN-IEC 61000-6 series, Automotive standard EN 50498
Compatibility and Application:
- Ideal for battery monitoring in marine, automotive, and off-grid systems
- Perfect for setups where a reliable, compact battery monitor is needed without additional display clutter
- Works seamlessly with Victron’s GX devices and VictronConnect app for a full monitoring solution
Benefits:
- Provides accurate, real-time battery status information, enhancing system efficiency and reliability
- Bluetooth connectivity allows easy monitoring and setup through a smartphone or tablet
- Compact design with IP21 protection for space-saving and durable installation
- Optional temperature and midpoint monitoring increase battery health management
- High precision measurements support informed decision-making and prevent unexpected power issues
