The Victron Skylla-TG SDTG2400501 is a high-performance 24V battery charger delivering 50A via a full-power main output and 4A via an auxiliary starter battery output. Designed for demanding marine and industrial environments, it supports 230V AC input and accepts 180–400V DC, offering flexible deployment. With microprocessor-based IUoUo 3-stage charging, battery temperature sensing, voltage compensation, and full GL certification, it provides rugged, reliable charging for lead-acid batteries in critical systems. Its aluminum enclosure, forced cooling, and potential-free alarm relay ensure durability and system integration flexibility.
- Description
- Ask a Question
-

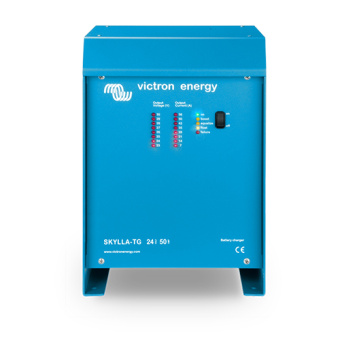

Victron Energy Skylla-TG 24V 50A (1+1) Battery Charger – SDTG2400501
The Skylla-TG 24/50 (1+1) is a robust dual-output charger built for commercial marine and industrial battery systems. It delivers 50A through a full-current main output and includes a 4A output for trickle-charging a starter battery. Its fully programmable, microprocessor-controlled charge algorithm ensures optimal battery health and performance even under extreme environmental conditions.
Key Features:
- Dual Outputs: 50 A main output + 4 A auxiliary output (starter battery)
- 230V AC Input: Standard single-phase input (185–264 V AC) and 180–400 V DC compatibility
- Charge Control: IUoUo 3-stage charging profile (Bulk, Absorption, Float)
- Battery Temperature Sensor: Included for temperature-compensated charging
- Voltage Sense Input: Ensures accurate terminal voltage despite cable losses
- Use as Power Supply: Stable DC output even without connected batteries
- GL Certification: Certified to Germanischer Lloyd Category C, EMC 1
- Alarm Relay: Potential-free NO/NC contact for system integration
- Cooling: Internal forced-air fan cooling
Technical Specifications:
Model Skylla-TG 24/50 (1+1) – SDTG2400501 Battery Voltage 24 V Main Output Current 50 A Starter Battery Output 4 A Charging Algorithm IUoUo 3-stage (Bulk / Absorption / Float) Absorption Voltage 28.5 V Float Voltage 26.5 V Input Voltage (AC) 185–264 V Input Voltage (DC) 180–400 V Input Frequency 45–65 Hz Power Factor 1.0 Battery Capacity (Recommended) 250 – 500 Ah Alarm Relay Potential-free, 60V/1A (NO + NC) Cooling Forced air (fan controlled) Operating Temperature -40 to +50 °C (Full power up to 40 °C) Humidity Up to 95% (non-condensing) Enclosure Material Aluminum, blue RAL 5012 IP Rating IP21 Weight 13 kg (28.6 lbs) Dimensions (H × W × D) 365 × 250 × 257 mm (14.4 × 9.9 × 10.1 in) Battery Connection M8 studs AC Connection Screw clamp 2.5 mm² (AWG 6) Certifications EN 60335-1, EN 60335-2-29, IEC 60945, EN 55014-1/2, EN 61000-3-2/3 GL Approval Germanischer Lloyd (GL C, EMC1)
Applications:
- Commercial marine systems (bridge & engine room)
- Industrial battery backup and starter support
- DC control panels and GMDSS-ready installations
- Off-grid and generator-based battery systems
Documents
Victron Energy Skylla-TG Charger GL Size: 187,4 KbVictron Energy Skylla-TG Charger Size: 296,2 Kb -
