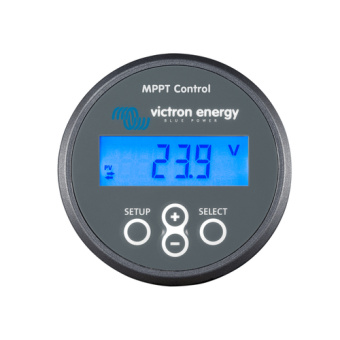

Victron MPPT Control Display (VE.Direct Cable not included) - SCC900500000

Victron Energy SCC900500000 – MPPT Control Display is a versatile LCD interface for Victron SmartSolar and BlueSolar MPPT charge controllers. Housed in the same format as the BMV-700 series battery monitors, it offers a consistent, professional panel design for solar system monitoring and configuration.

It connects via VE.Direct (cable sold separately) and allows users to view real-time performance, historical solar data, and configure charging parameters directly from the display without needing a PC or mobile device. Ideal for flush panel mounting, with optional wall-mount enclosures available.

Technical Specifications:

Key Features:

• Real-time data monitoring: PV power, voltage, current, battery charge stage, load state
• View up to 30 days of solar history: yield, max/min voltages, time in charge stages
• Access and configure key MPPT charger settings
• Compatible with both BlueSolar and SmartSolar MPPT models (VE.Direct required)
• Includes power cable (for legacy use cases only)
• Panel-mounted design fits BMV-700 style cutouts

Status Menu:

• Solar power, voltage, and daily yield
• Battery voltage, current, and charge stage
• Load output status and current (for models with load output)

History Menu:

• 30-day data on PV yield, voltage, max power, and charge stage durations
• Total yield and peak system values since last reset
• Error logs (latest 4 system errors)

Settings Menu:

• Battery voltage and type (Fixed/User)
• Charging current and voltage thresholds
• Load output configuration (BatteryLife, User, Auto modes)
• Backlight, scroll speed, equalization, reset functions

Typical Applications:

• Off-grid solar energy systems
• Marine and mobile PV charging installations
• Professional solar control panels

Note: Requires a VE.Direct cable (not included) to connect to MPPT controller. For solar chargers ≥60A, the SmartSolar Pluggable Display (SCC900650010) may be a better option.
