SKU:
CN VISCC900300000
€ 49,37
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+

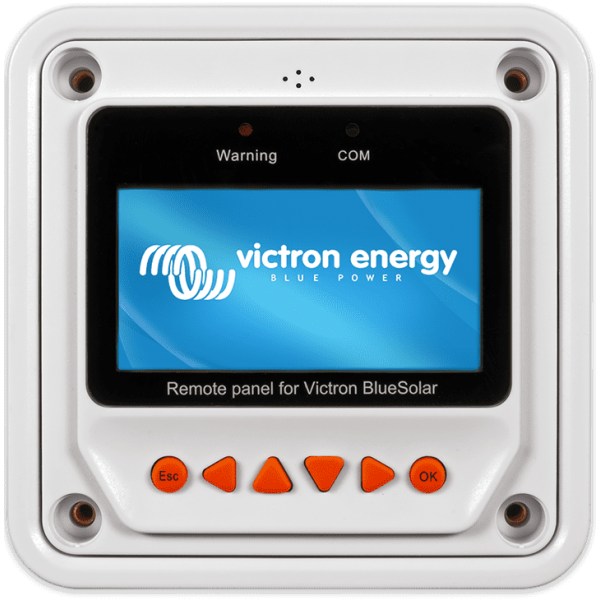

The Victron BlueSolar Pro Remote Panel (SCC900300000) is an LCD-based interface for real-time monitoring and full parameter control of BlueSolar PWM-Pro controllers (5A to 30A). Connected via standard RJ45 UTP cable (max 20 m), it allows configuring charge profiles, load output modes, timers, battery capacity, voltage thresholds, and system time — with audible and visual alarms for fault detection.
- Description
- Ask a Question
-
Victron Energy BlueSolar Pro Remote Panel for PWM-Pro Charge Controllers
The BlueSolar Pro Remote Panel is a powerful accessory for Victron BlueSolar PWM-Pro controllers, offering full access to controller configuration and live system data. Connected via RS485 (RJ45), the panel displays voltages, currents, status icons, and system warnings. Its programmable interface supports advanced lighting control, battery profile adjustment, failure logging, and password-protected access.
Parameter Specification Model SCC900300000 Compatible Controllers Victron BlueSolar PWM-Pro (12/24V, 5A–30A) Interface RJ45 (RS485 protocol) Cable Length Up to 20 m (UTP) Display Backlit LCD with monitoring icons Buttons 4-key control pad (OK, ESC, UP, DOWN) Default Password 000000 Programmable Functions - Battery type, capacity, voltage thresholds
- Equalization, absorption, float voltages
- Load output modes: Manual, Light On/Off, Timer, Time Control
- Lighting schedules with dual timer windows
- Date/time and backlight configuration
Monitoring Data - PV Voltage & Current
- Battery Voltage & Current
- Load Voltage & Current
- Charge status, battery state, load status
Alarms - Audible and LED alarm (optional)
- Warnings: overvoltage, overload, short circuit, undervoltage
Power Consumption - Max 65 mA (backlight + alarm)
- Max 23 mA (backlight only)
- Max 15 mA (idle)
Operating Temperature -20 °C to +70 °C Enclosure Flush mount Faceplate Dimensions 98 × 98 mm Frame Dimensions 114 × 114 mm Weight 0.2 kg
Key Features:
- Live monitoring of charge controller parameters
- Full access to setup menus and controller logic
- Visual and audible warnings for system faults
- Simple RJ45 cable connection (no extra power supply needed)
- Supports all Victron BlueSolar PWM-Pro controllers
Applications:
- Remote charge controller access for off-grid sites
- Lighting systems with programmable dusk/dawn timers
- Battery management and protection in 12/24V solar systems
Documents
Victron Energy BlueSolar Pro Remote Panel Size: 610,7 Kb -
