The Victron SmartSolar MPPT RS 450/200-MC4 is a state-of-the-art 48V solar charge controller featuring four independent MPPT trackers, 450V max PV input, and a total 200A charge capacity. Designed for high-efficiency energy capture in large solar arrays, it supports isolated PV input, PV insulation resistance monitoring, Bluetooth, VE.Can communication, and programmable relays — all in a rugged 13.7 kg chassis with MC4 input connectors.
- Description
- Ask a Question
-

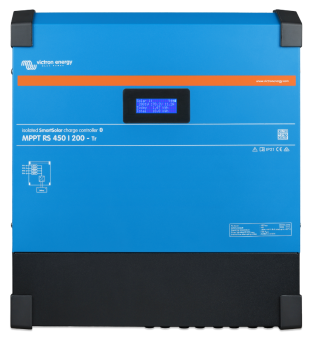

Victron Energy SmartSolar MPPT RS 450/200-MC4 Charge Controller, 48V, 200A
The SmartSolar MPPT RS 450/200-MC4 is Victron's most powerful isolated MPPT charge controller, ideal for demanding 48V solar systems. It delivers up to 11.5 kW charging power across four independently tracked PV strings and supports up to 450 VDC PV input. Integrated Bluetooth allows real-time setup and monitoring via VictronConnect, while VE.Can enables system synchronization with up to 25 units in parallel.
Parameter Specification Model SmartSolar MPPT RS 450/200-MC4 Battery Voltage 48 V (programmable 36–60 V) Max Charge Current 200 A Max Charge Power 11.5 kW @ 57.6 V PV Input Voltage Range 65–450 VDC (120 VDC startup) MPPT Trackers 4 independent trackers Max PV Input Current 16 A per tracker (20 A short-circuit) Max PV Array per Tracker 7200 Wp (450 V x 20 A) PV Isolation Resistance Monitoring Yes (100 kΩ threshold) Max Efficiency 96 % Self-Consumption 15 mA Parallel Operation Yes (up to 25 units via VE.Can) Data Interfaces VE.Can, VE.Direct, Bluetooth Programmable Relay Yes (4 A @ 35 VDC / 1 A @ 70 VDC) Display Yes, with parameter overview Operating Temperature -40°C to +60°C (fan-assisted) Enclosure Steel, blue RAL 5012, IP21 PV Connectors 4x MC4 pairs (1 per tracker) Battery Connection 4x M8 bolts (2x pos, 2x neg) Weight 13.7 kg Dimensions (HxWxD) 487 x 434 x 146 mm
Key Features:
- 4 independent MPPT inputs — optimal for complex arrays
- 11.5 kW output for fast and efficient charging
- Galvanic isolation between PV and battery
- VE.Can for multi-unit charging synchronization
- Bluetooth setup, status, and monitoring via VictronConnect
- Built-in PV insulation monitoring for safety
Applications:
- Commercial and large-scale off-grid solar systems
- Telecom base stations and energy storage banks
- Redundant solar supply in hybrid inverter setups
Looking for a different Victron Smart Solar Charge Controllers? Explore our full Victron SmartSolar RS product range.
Documents
Victron Energy SmartSolar MPPT RS Size: 391,4 Kb -
