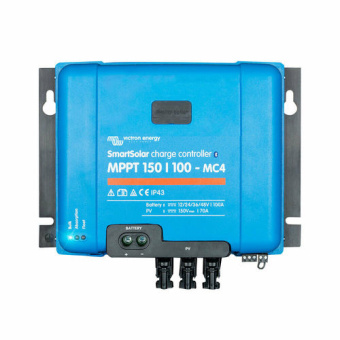

Victron Energy SCC115110511 - SmartSolar MPPT 150/100 MC4 VE.Can

Victron Energy SCC115110511 - SmartSolar MPPT 150/100 MC4 VE.Can

Key Features:

• Ultra-fast Maximum Power Point Tracking (MPPT) technology improves energy harvest by up to 30% compared to PWM charge controllers, ensuring maximum efficiency.
• Advanced Maximum Power Point Detection optimizes performance in partial shading conditions by locking onto the best maximum power point.
• Automatic battery voltage recognition for 12V, 24V, 36V, or 48V battery banks simplifies setup and configuration.
• Supports input voltage up to 150V (recommended max 135V) and delivers a maximum output current of 100A.
• Handles up to 1000 Watts of PV power in a 12V system, 2000 Watts in a 24V system, 3000 Watts in a 36V system, and 4000 Watts in a 48V system.
• Data communication through VE.Can, VE.Direct, and Bluetooth allows for real-time monitoring and control from mobile devices.
• Fully programmable charge algorithm with eight pre-programmed algorithms for customized charging needs.
• Robust safety features including over-temperature protection, PV reverse polarity protection, and output short circuit protection.
• Compact and lightweight design, weighing 3 kg with dimensions of 185 mm x 250 mm x 95 mm (approx. 7.3" x 9.8" x 3.7").

Specifications:

• Input Voltage: Up to 150V DC (recommended maximum 135V for operation)
• Rated Charge Current: 100A
• Battery Voltage: Automatic recognition for 12V, 24V, 36V, or 48V systems
• Maximum PV Power (12V): 1000W
• Maximum PV Power (24V): 2000W
• Maximum PV Power (36V): 3000W
• Maximum PV Power (48V): 4000W
• Maximum PV Short Circuit Current: 100A (max 30A per MC4 connector)
• Peak Efficiency: Exceeds 98%
• Temperature Range: -30°C to +60°C (full rated output up to 40°C)
• Weight: 3 kg
• Dimensions (HxWxD): 185 x 250 x 95 mm
• Self-Consumption: < 25 mA at 12V / < 20 mA at 48V
• Protection Class: IP43 for electronic components, IP22 for connection area
• Standards: Complies with EN/IEC 62109 for safety and reliability
• Communication: VE.Can for data monitoring and control, Bluetooth for mobile access
• Temperature Compensation: -16 mV / °C for absorption and float charge voltages
• Programmable Relay: Can be set for alarms or other events
• Cooling: No active cooling required, ensuring quiet operation
• Maximum Altitude: Up to 5000m for full rated output (up to 2000m without derating)
• Environmental Conditions: Indoor, unconditioned with a pollution degree of PD3
• Parallel Operation: Yes, up to 25 units with VE.Can, up to 10 with Bluetooth.

Compatibility and Application:

• Designed for use with Victron Energy solar panels and compatible solar equipment.
• Ideal for solar energy systems in marine, automotive, and off-grid applications.
• Compatible with various brands and models, providing flexibility in solar energy setups.

Benefits:

• Maximizes solar energy utilization, ensuring high efficiency in energy transfer even under varying weather conditions.
• User-friendly design with automatic voltage recognition simplifies installation for both professionals and DIY enthusiasts.
• Durable construction designed to withstand harsh environmental conditions, ensuring long-term reliability and performance.
• Real-time monitoring capabilities via Bluetooth provide users with insights into system performance, energy production, and diagnostics.
• Multi-stage charging process promotes battery health, prolonging lifespan and optimizing performance for various battery types.
• Compact and lightweight design allows for easy integration into existing solar setups without adding bulk.
• Advanced protection features enhance system safety, providing peace of mind during operation.
• Versatile compatibility with various solar panel brands and models increases design flexibility.
• Integrated LED indicators offer clear visual feedback on the operational status and any fault conditions.
• Designed to meet rigorous international standards, ensuring safety and reliability in diverse applications.
