The SmartSolar MPPT 150/70-Tr VE.Can is a powerful and intelligent solar charge controller for systems up to 70A. With VE.Can support for synchronizing up to 25 controllers, PV input up to 150 V, and array capacity up to 4000 W, it is ideal for high-demand off-grid or hybrid systems. It includes Bluetooth, VE.Direct, a programmable relay, and built-in protections for unmatched versatility and reliability.
- Description
- Ask a Question
-

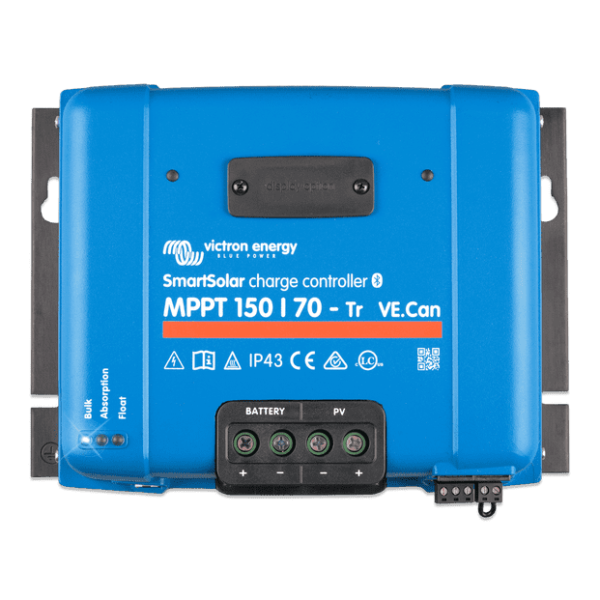

Victron Energy SmartSolar MPPT 150/70-Tr VE.Can Charge Controller 12/24/36/48V-70A with Synchronisation & Relay Output
The Victron SmartSolar MPPT 150/70-Tr VE.Can is designed for high-capacity solar battery systems. It offers ultra-fast MPPT tracking with a maximum efficiency of 98%, a PV voltage input up to 150 V, and a charge current of 70 A. Featuring VE.Can and VE.Direct for system communication, this controller supports up to 25 units in synchronized parallel operation. Bluetooth is integrated for easy setup and monitoring, and a programmable relay enables system-level automation.
Parameter Specification Model SmartSolar MPPT 150/70-Tr VE.Can Battery Voltage 12 / 24 / 36* / 48 V (*36 V via software) Rated Charge Current 70 A Max PV Open Circuit Voltage 150 V absolute, 145 V operational Nominal PV Power - 12 V system: 1000 W
- 24 V system: 2000 W
- 36 V system: 3000 W
- 48 V system: 4000 W
Max PV Short Circuit Current 50 A Charge Algorithm Adaptive 3-stage (Bulk, Absorption, Float) or custom Absorption Voltage 14.4 / 28.8 / 43.2 / 57.6 V (adjustable) Float Voltage 13.8 / 27.6 / 41.4 / 55.2 V (adjustable) Equalization Voltage 16.2 / 32.4 / 48.6 / 64.8 V Temperature Compensation -16 / -32 / -64 mV/°C Efficiency Up to 98% Self Consumption 35 mA @ 12 V / 20 mA @ 48 V Battery Recovery Yes — charges from 0 V Communication VE.Can, VE.Direct, Bluetooth Parallel Operation Up to 25 (VE.Can), or 10 (Bluetooth) Remote On/Off Yes (2-pole terminal) Relay Output - 240 VAC / 4 A
- 35 VDC / 4 A or 60 VDC / 1 A
- Programmable via app
Enclosure IP43 (electronics), IP22 (terminals) Terminals 35 mm² / AWG2 screw-type Dimensions 216 × 295 × 103 mm Weight 4.5 kg Certifications EN/IEC 62109-1, UL 1741, CSA C22.2
Key Features:
- 70A charging with 150V PV input and up to 4000 W array capacity
- Synchronizes up to 25 units via VE.Can for large-scale charging
- Built-in Bluetooth and VE.Direct for wireless and wired control
- Programmable relay for system automation and alarms
- Zero-volt battery recovery and full protection suite
Applications:
- Industrial or large off-grid solar systems
- 48V telecom and energy storage installations
- Marine and mobile hybrid battery charging systems
Looking for a different Victron Smart Solar Charge Controllers? Explore our full Victron SmartSolar MPPT product range.
Documents
Victron Energy MPPT 150-70 VE.Can up to MPPT 150-100 VE.Can Size: 400,9 Kb -
