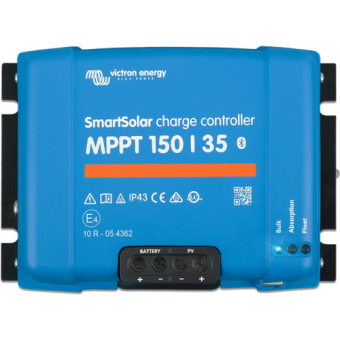

Victron Energy SCC115035210 - SmartSolar MPPT 150/35

Victron Energy SCC115035210 - SmartSolar MPPT 150/35

Key Features:

• Ultra-fast Maximum Power Point Tracking (MPPT) technology optimizes solar energy capture, especially under challenging sunlight conditions.
• Advanced Maximum Power Point Detection enhances performance in partial shading situations.
• Automatic battery voltage recognition for 12V, 24V, and 48V systems, with programming available for 36V systems.
• Built-in Bluetooth for easy monitoring, configuration, and firmware updates via the VictronConnect app on compatible devices.
• Compatible with Color Control GX for centralized monitoring and control of all connected Victron devices.

Specifications:

• Model: SCC115035210
• System Voltage Recognition: Automatic for 12V, 24V, and 48V; programmable for 36V
• Rated Charge Current: 35A
• Maximum PV Input Voltage: 150V DC
• PV Array Power (Recommended):
  • 12V System: Up to 500W
  • 24V System: Up to 1000W
  • 48V System: Up to 2000W
• Maximum Efficiency: 98%, ensuring minimal energy loss during conversion
• Charge Algorithm: Three-stage temperature-compensated charging (Bulk, Absorption, Float) with adjustable settings
• Absorption Voltage:
  • 14.4V (12V system)
  • 28.8V (24V system)
  • 57.6V (48V system)
• Float Voltage:
  • 13.8V (12V system)
  • 27.6V (24V system)
  • 55.2V (48V system)
• Temperature Compensation: -16mV/°C per 12V, -32mV/°C per 24V, and -64mV/°C per 48V to optimize charging in different conditions
• Self-Consumption: Low self-consumption for efficiency
  • Load On: 10-20 mA depending on system voltage
  • Load Off: 8-15 mA depending on system voltage
• Protection Features:
  • Battery reverse polarity protection
  • Over-temperature protection with power de-rating at high temperatures
  • Output short circuit and overload protection
  • PV reverse polarity and over-voltage protection
• Enclosure Protection: IP43 (electronics), IP22 (connection area) for reliable indoor/outdoor use
• Operating Temperature Range: -30°C to +60°C, full output up to 40°C
• Humidity: Max 95%, non-condensing
• Data Communication Port: VE.Direct for integration with GX devices and remote monitoring
• Dimensions: 130 mm x 186 mm x 70 mm
• Weight: 1.25 kg
• Standards Compliance: EN/IEC 62109-1, UL 1741, CSA C22.2

Compatibility and Application:

• Ideal for off-grid, marine, RV, and backup power systems requiring efficient solar charging for various battery configurations.
• Integrates seamlessly with Victron GX devices and the VRM portal for remote monitoring and data logging.

Benefits:

• Maximizes solar energy harvest with ultra-fast MPPT, enhancing system efficiency in various light conditions.
• Bluetooth connectivity allows for convenient setup and real-time monitoring via the VictronConnect app.
• Three-stage charging profile supports optimal battery health and lifespan extension.
• Durable design with high-temperature protection and efficient power de-rating ensures reliable operation in demanding environments.
• Supports a wide range of battery voltages and configurations, offering flexibility for diverse renewable energy systems.
