SKU:
CN VISCC110030210
€ 153,71
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The SmartSolar MPPT 100/30 is a powerful and intelligent solar charge controller for 12V/24V systems. With support for PV voltages up to 100V and charge current up to 30A, it can handle arrays up to 880W. Built-in Bluetooth allows for wireless setup and monitoring, while the advanced MPPT tracking ensures optimal solar harvest even under partial shading. BatteryLife, load output, and full protection suite make it a top choice for off-grid users.
- Description
- Ask a Question
-

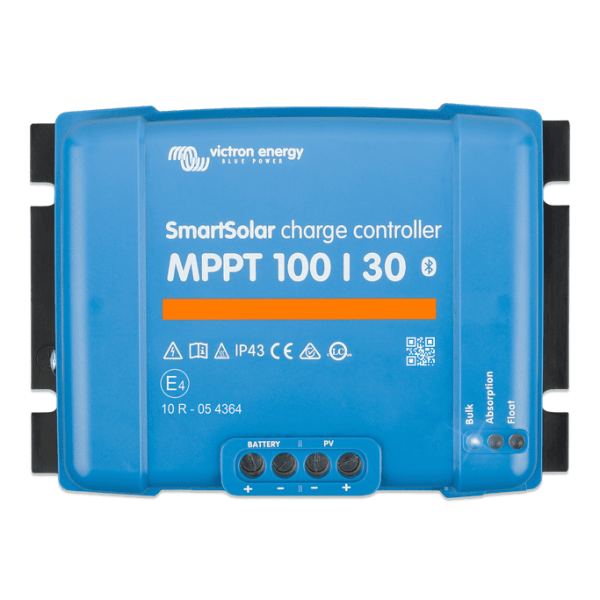

Victron Energy SmartSolar MPPT 100/30 Charge Controller 12/24V-30A with Bluetooth & VE.Direct
The Victron SmartSolar MPPT 100/30 combines advanced tracking, remote configuration, and intelligent load management into a compact controller. Supporting up to 100V open circuit PV voltage and 30A of charging current, it efficiently charges 12V or 24V battery systems even in sub-optimal solar conditions. A fully programmable multi-stage charge algorithm and load output with BatteryLife extend battery life and system uptime.
Parameter Specification Model SmartSolar MPPT 100/30 Battery Voltage 12 / 24 V auto-select Rated Charge Current 30 A Max PV Open Circuit Voltage 100 V Max PV Power - 12V system: 440 W
- 24V system: 880 W
Max PV Short Circuit Current 35 A Charge Algorithm Multi-stage adaptive (Bulk, Absorption, Float) Absorption Voltage 14.4 / 28.8 V (default, adjustable) Float Voltage 13.8 / 27.6 V (default, adjustable) Temperature Compensation -16 / -32 mV/°C (depending on voltage) Bluetooth Built-in (VictronConnect) Communication Port VE.Direct (for GX, PC, logging) Load Output Yes (programmable, with BatteryLife) Self-Consumption 30 mA @ 12V / 20 mA @ 24V Max Efficiency 98% Protections - PV reverse polarity
- PV short circuit
- Over-temperature
- Battery reverse current
Battery Recovery Yes — supports charging from 0V Enclosure IP43 (electronics), IP22 (connection area) Terminals 16 mm² / AWG6 Dimensions 130 × 186 × 70 mm Weight 1.3 kg Certifications EN/IEC 62109-1, UL 1741, CSA C22.2
Key Features:
- 30A MPPT charging with up to 100V PV input
- Ultra-fast tracking with partial shading optimization
- Built-in Bluetooth for wireless configuration and status
- Programmable load output with BatteryLife logic
- Automatic recovery from fully discharged batteries
Applications:
- Off-grid solar systems for cabins, RVs, telecom
- 12/24V battery banks with up to 880W PV input
- Smart solar setups requiring remote monitoring
Looking for a different Victron Smart Solar Charge Controllers? Explore our full Victron SmartSolar MPPT product range.
Documents
Victron Energy SmartSolar MPPT 100-30 100-50 Size: 222,2 KbVictron MPPT 100 30 Manual Size: 12 Mb -
