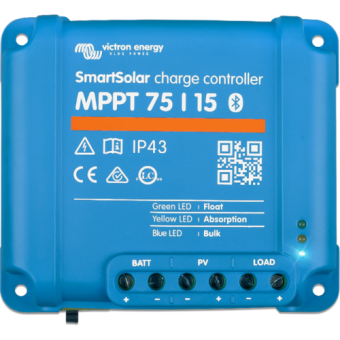

Victron Energy SCC075015060R - SmartSolar MPPT 75/15

Victron Energy SCC075015060R - SmartSolar MPPT 75/15

Key Features:

• Advanced MPPT solar charge controller designed for 12V and 24V battery systems with 15A charge current.
• Ultra-fast Maximum Power Point Tracking (MPPT) optimizes energy capture, especially in changing sunlight conditions, enhancing efficiency by up to 30% over PWM controllers.
• Built-in Bluetooth for wireless setup, monitoring, and firmware updates via the VictronConnect app.
• VE.Direct communication port for wired data connection, compatible with Victron GX devices and other monitoring solutions.
• Includes intelligent Battery Life algorithm for battery management, extending battery lifespan by maintaining optimal charge levels.

Specifications:

• Model: SCC075015060R
• System Voltage: Auto-select for 12V or 24V systems
• Rated Charge Current: 15A
• Nominal PV Power:
  • 12V: 220W
  • 24V: 440W
• Maximum PV Open Circuit Voltage: 75V
• Maximum PV Short Circuit Current: 15A
• Efficiency: Up to 98%
• Self-Consumption (Load On):
  • 12V: 19 mA
  • 24V: 16 mA
• Self-Consumption (Load Off):
  • 12V: 10 mA
  • 24V: 8 mA
• Charge Voltage Settings:
  • Absorption Voltage: 14.4V / 28.8V (adjustable)
  • Float Voltage: 13.8V / 27.6V (adjustable)
• Temperature Compensation: -16 mV/°C (12V), -32 mV/°C (24V)
• Operating Temperature Range: -30°C to +60°C (full output up to 40°C)
• Humidity: Max 95%, non-condensing
• Protection Features: Short circuit, over-temperature, and intelligent load disconnect
• Enclosure Protection: IP43 (electronics), IP22 (connection area)
• Dimensions: 100 x 113 x 40 mm
• Weight: 0.5 kg
• Standards Compliance: EN/IEC 62109-1, UL 1741, CSA C22.2

Compatibility and Application:

• Designed for off-grid, marine, RV, and backup power systems requiring efficient solar charging for 12V or 24V battery setups.
• Compatible with Victron GX devices for remote monitoring and control.

Benefits:

• Maximizes energy harvest from solar panels, even in partially shaded conditions, through ultra-fast MPPT tracking.
• Bluetooth capability offers convenient setup and monitoring without additional accessories.
• Battery Life algorithm improves battery health by maintaining optimal charge levels, extending lifespan.
• Robust protection features ensure safe operation, even in challenging environmental conditions.
• Compact and durable design, making it suitable for versatile installation in limited spaces.
