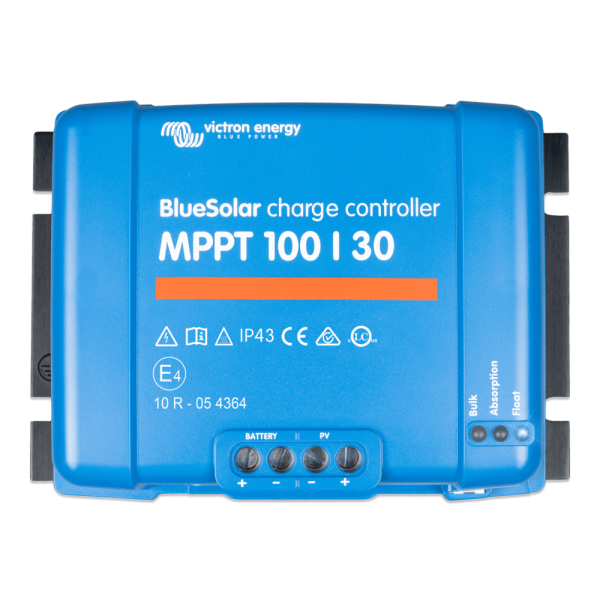

Victron Energy SCC020030200 - BlueSolar MPPT Charge Controller 100/30

Victron Energy SCC020030200 - BlueSolar MPPT Charge Controller 100/30

Key Features:

• Ultra-fast Maximum Power Point Tracking (MPPT) improves energy harvest by up to 30% compared to PWM controllers and by up to 10% compared to slower MPPT controllers.
• Advanced Maximum Power Point Detection allows for optimal performance in partial shading conditions by locking onto the best MPP.
• Automatic battery voltage recognition for 12V or 24V battery banks, facilitating easier installation and operation.
• Accepts input voltage up to 100V and outputs up to 30A, supporting a wide range of solar panel configurations.
• Terminals accommodate wire sizes up to 6 AWG, allowing for flexible installation options and ensuring secure connections.
• Three-stage temperature-compensated charging with a flexible charge algorithm, adjustable via software for customized battery care.
• Over-temperature protection and power derating ensure safe operation, extending the lifespan of the controller.
• Maximum efficiency exceeds 98%, providing optimal energy conversion and minimizing energy loss.
• Compact dimensions of 130 mm x 186 mm x 70 mm (approx. 5.1" x 7.3" x 2.7"), allowing for easy mounting in confined spaces.
• LED indicators for real-time status monitoring, providing users with visual feedback on system performance.

Specifications:

• Input Voltage: Up to 100V DC
• Rated Charge Current: 30A
• Battery Voltage: Automatic recognition for 12V or 24V systems
• Maximum PV Power (12V): 440W
• Maximum PV Power (24V): 880W
• Temperature Range: -30°C to +60°C (full rated output up to 40°C)
• Weight: 1.3 kg
• Dimensions (HxWxD): 130 x 186 x 70 mm
• Self-Consumption: 10 mA
• Protection Class: IP43 for electronic components
• Standards: Complies with EN/IEC 62109 for safety
• Charge Algorithm: Multi-stage adaptive charging with temperature compensation
• Communication Port: VE.Direct for data logging and monitoring
• Cooling: No fan required due to outstanding conversion efficiency exceeding 98%
• Internal Temperature Sensor: Compensates for absorption and float charge voltage.

Compatibility and Application:

• Designed for use with Victron Energy solar panels and devices.
• Ideal for connecting solar panels in marine, automotive, and off-grid systems.
• Compatible with various brands and models of solar equipment.
• Perfect for users seeking reliable and efficient solar connections.

Benefits:

• Maximizes solar energy utilization, ensuring high efficiency in energy transfer even in challenging conditions.
• Easy to install and configure, with automatic voltage recognition simplifying setup for various systems.
• Durable construction designed to withstand harsh environmental conditions, ensuring long-term reliability.
• Offers advanced protection features such as over-temperature and reverse polarity protection, enhancing system safety.
• Real-time monitoring capabilities provide users with insights into system performance and energy production.
• Three-stage charging process promotes battery health, prolonging lifespan and optimizing performance.
• Compact and lightweight design facilitates easy integration into existing solar setups without adding bulk.
• Flexible charge algorithm allows for customization, adapting to different battery chemistries and user needs.
• Internal temperature compensation enhances charging efficiency by adjusting voltages according to ambient temperature.
• Designed to meet rigorous international standards, providing peace of mind for users in various applications.
