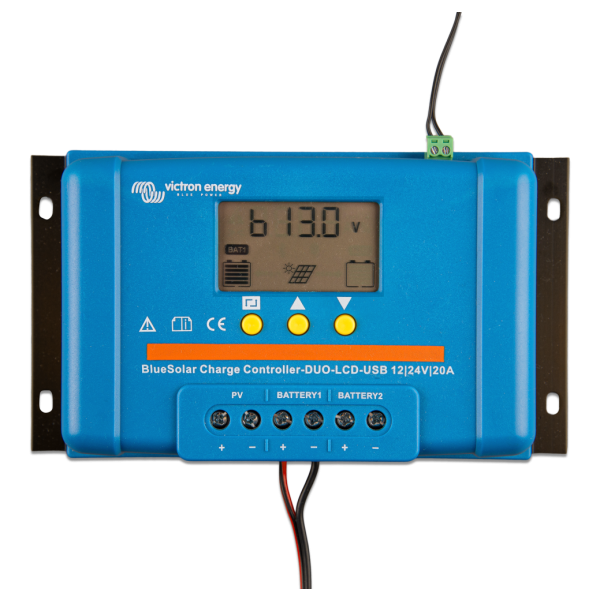

Victron Energy SCC010020060 - BlueSolar PWM Duo-LCD&USB 12/24V 20A

Victron Energy SCC010020060 - BlueSolar PWM Duo-LCD&USB 12/24V 20A

Key Features:

• Liquid crystal display for easy status monitoring and setup.
• Two 5V USB outputs, with a combined maximum current of 2A, for powering devices.
• Fully programmable lighting control function to suit various applications.
• Three-stage battery charging (bulk, absorption, float) with programmable settings for optimal battery management.
• Load output with low voltage disconnect and manual disconnect options, fully programmable for user convenience.
• Overload and short circuit protection for enhanced safety.
• Reverse polarity protection for solar panel and battery connections to prevent damage.
• Charges two separate batteries, ideal for configurations like starter and service batteries in boats or RVs.
• Programmable charge current ratio to meet specific battery requirements.
• Includes an external temperature sensor for accurate temperature compensation during charging.

Specifications:

• Model: SCC010020060
• Rated charge current: 20A
• Input voltage range: 19 - 33 V DC
• Output voltage: 12/24V with automatic system voltage detection
• Maximum solar voltage: 28V (for 12V systems) / 55V (for 24V systems)
• Continuous output power at 25°C: 2400W
• Continuous output power at 40°C: 2200W
• Continuous output power at 65°C: 1700W
• Peak power: 900W
• Maximum efficiency: 92%
• Zero load power consumption: 25W, 12W in search mode
• Operating temperature range: -35°C to +55°C (full load)
• Humidity: Max 95% (non-condensing)
• Dimensions (H x W x D): 101.5 x 184.0 x 47.1 mm
• Weight: 0.3 kg (0.66 lbs)
• Protection class: IP20

Compatibility and Application:

• Designed for solar power systems in automotive, marine, and off-grid applications.
• Compatible with various battery systems, including lithium and lead-acid batteries.
• Ideal for use with solar panels configured for 12V and 24V systems.

Benefits:

• Efficient solar energy management through advanced PWM technology ensures maximum energy harvest.
• Robust and compact design allows for easy installation in confined spaces.
• Remote monitoring and control features enable easy management of the solar power system.
• Safety features, including overload protection and reverse polarity protection, ensure reliable operation.
• Lightweight design makes it suitable for mobile applications in vehicles and boats.
