SKU:
CN VISCC010020020
€ 32,54
1-2 weeks delivery time
Price incl. 19% VAT
Price incl. 19% VAT
-
+
The Victron BlueSolar PWM-Light 12/24V-20A is a simple and reliable PWM solar charge controller with automatic 12V/24V detection and 20A rated charging current. Designed for low-power off-grid systems, it features programmable load output control with a built-in lighting timer, three-stage charging, and electronic protections for overload, short circuit, and battery reverse polarity. The controller is ideal for rural electrification, lighting, and battery maintenance.
- Description
- Ask a Question
-

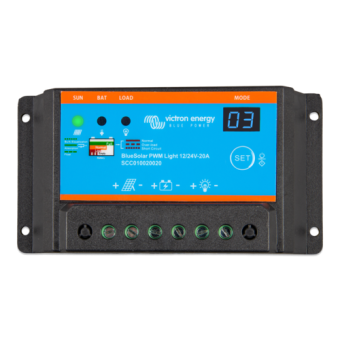

Victron Energy BlueSolar PWM-Light Charge Controller 12/24V-20A with Load Output & Timer
The BlueSolar PWM-Light 12/24V-20A is a user-friendly solar charge controller ideal for small off-grid applications. It supports 12V and 24V systems with automatic detection, delivers up to 20A charging current, and protects your battery via three-stage charging. It includes a low-voltage disconnect for load protection and a programmable day/night timer via a two-digit LED display — all in a compact, efficient housing.
Parameter Specification Model BlueSolar PWM-Light 12/24V-20A Battery Voltage 12V / 24V (auto-detect) Rated Charge Current 20 A Max Solar Voltage 28 V (12V systems), 55 V (24V systems) Self-Consumption <10 mA Charging Algorithm 3-stage: Bulk, Absorption (14.2V/28.4V), Float (13.8V/27.6V) Low Voltage Load Disconnect 11.2V / 22.4V Reconnect Voltage 13.1V / 26.2V (auto), 12.6V / 25.2V (manual) Load Output Manual, low voltage disconnect, or timer control Protection Features Short circuit, overload, reverse polarity, over-temp Shutdown Behavior 130% load: 60 s
160% load: 5 s
Short circuit: immediateGrounding Common positive Enclosure IP20 Terminal Size 5 mm² / AWG10 Dimensions (H x W x D) 70 x 133 x 33.5 mm Weight 0.2 kg Operating Temperature -20°C to +50°C Humidity (non-condensing) Up to 95% Certifications IEC 62109-1, EN 61000-6-1/3, ISO 7637-2
Key Features:
- Automatic detection of 12V / 24V battery systems
- Three-stage battery charging for optimal battery health
- Programmable lighting timer via LED interface
- Low-voltage load disconnect function
- Protection against short circuit, overload, and reverse polarity
Applications:
- Solar-powered lighting systems
- Small off-grid power setups
- Battery maintenance in rural and mobile environments
Looking for a different Victron Blue Solar Charge Controllers? Explore our full Victron BlueSolar PWM product range.
Documents
Victron Energy BlueSolar PWM-Light 12_24V Size: 66,4 Kb -
