SKU:
CN VISCC010015200R
€ 74,05
1-2 weeks delivery time
-
+
The Victron BlueSolar MPPT 100/15 is a high-efficiency, ultra-fast MPPT charge controller for 12V/24V systems. Rated for 15A and up to 100V PV input, it supports up to 440W of solar array, includes intelligent BatteryLife load management, and enables remote monitoring and programming via VE.Direct. Ideal for compact but high-performance off-grid systems.
- Description
- Ask a Question
-

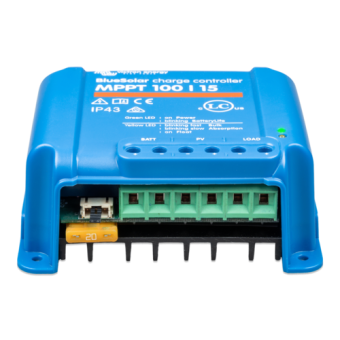

Victron Energy BlueSolar MPPT 100/15 Charge Controller 12/24V-15A with Load Output & VE.Direct
The BlueSolar MPPT 100/15 delivers ultra-fast tracking and adaptive charging, ensuring maximum energy harvest from 12V or 24V solar arrays up to 440W. Its integrated load output with intelligent BatteryLife management prevents over-discharge, while VE.Direct connectivity supports real-time configuration via GX devices or Bluetooth (dongle required). Compact and rugged, it suits a wide range of off-grid systems.
Parameter Specification Model BlueSolar MPPT 100/15 System Voltage 12V / 24V (auto-select) Rated Charge Current 15 A Max PV Open Circuit Voltage 100 V Max PV Power (12V) 220 W Max PV Power (24V) 440 W Max PV Short Circuit Current 15 A Peak Efficiency 98% Charge Algorithm Adaptive 3-stage (Bulk, Absorption, Float) Absorption Voltage 14.4V / 28.8V (adjustable) Float Voltage 13.8V / 27.6V (adjustable) Low Voltage Disconnect 11.1V / 22.2V or BatteryLife Reconnect Voltage 13.1V / 26.2V or BatteryLife Temperature Compensation -16 mV/°C (12V), -32 mV/°C (24V) Load Output Yes (short circuit proof) Communication VE.Direct (to PC or Bluetooth dongle) Self-Consumption (load on) 26 mA (12V) / 20 mA (24V) Self-Consumption (load off) 10 mA / 8 mA Operating Temp -30°C to +60°C (full output up to 40°C) Enclosure IP43 (electronics), IP22 (terminal area) Terminals 6 mm² / AWG10 Dimensions 100 × 131 × 60 mm Weight 0.65 kg Certifications IEC 62109-1, UL 1741, CSA C22.2
Key Features:
- Up to 440W PV support at 24V with 100V max input
- Ultra-fast MPPT with adaptive multi-stage charging
- BatteryLife load management extends battery health
- VE.Direct port for data logging, remote control, and updates
- High efficiency and low idle consumption
Applications:
- Off-grid solar for cabins, vans, and remote gear
- Battery systems needing efficient solar input regulation
- Automation or lighting with battery protection
Looking for a different Victron Blue Solar Charge Controllers? Explore our full Victron BlueSolar MPPT product range.
Documents
Victron Energy BlueSolar MPPT 75-10, 75-15, 100-15, 100-20 Size: 591,2 KbVictron MPPT 100 15 Manual Size: 11,8 Mb -
